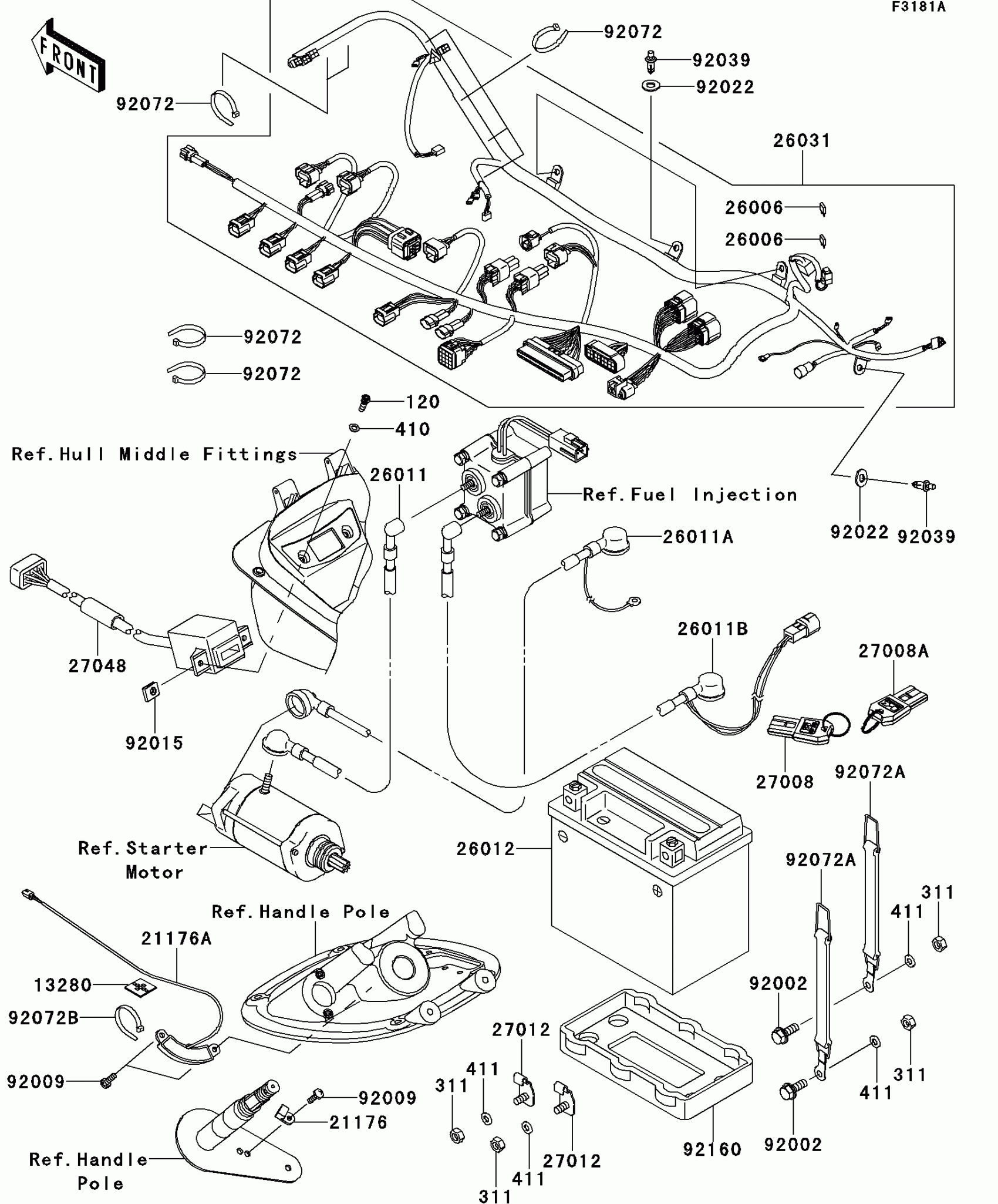

Kawasaki JET SKI® STX®-15F Electrical Equipment(AFF) Diagram

Description

Price

13280

HOLDER

13280-3757

$4.21

21176

SENSOR,MAGNET

21176-3746

$29.97

21176A

SENSOR,HOLE IC

21176-3748

$159.42

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$4.16

26011

WIRE-LEAD,RELAY-STARTER

26011-3899

$70.07

26011A

WIRE-LEAD,BATTERY(-)-STARTER

26011-3912

$114.07

26011B

WIRE-LEAD,BATTERY(+)-RELAY

26011-3926

$113.73

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

26031

HARNESS,MAIN

26031-1746

$551.85

27008

FPO MODE KEY

27008-0566

$69.79

27008A

SLO MODE KEY

27008-3768

$78.01

27012

HOOK

27012-3818

$7.61

27048

SWITCH-ASSY

27048-0004

$836.43

92002

BOLT,6X16

92002-3728

$3.38

92009

SCREW,5X16

92009-3868

$1.36

92015

NUT,CLIP,5MM

92015-3830

$6.30

92022

WASHER,8.2X18X1.5

92022-3743

$3.36

92039

RIVET

92039-1283

$2.29

92072

BAND,L=188.85

92072-0105

$1.51

92072A

BAND,WATER MUFFLER

92072-3781

$13.64

92072B

BAND,L=100.08

92072-3882

$1.71

92160

DAMPER

92160-3929

$31.76

120

BOLT-SOCKET,5X16

120R0516

$0.80

311

NUT-HEX,6MM

311R0600

$0.75

410

W-PLAIN-S,5MM

410S0500

$1.39

411

WASHER-PLAIN,6MM

411S0600

$1.73
