Description

Price

220

SCREW-PAN-CROS,5X20

220R0520

$3.59

221

SCREW-CSK-CROS,6X16

221R0616

$1.06

221A

SCREW-CSK-CROS,6X25

221R0625

$3.97

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.14

410

W-PLAIN-S,5MM

410S0500

$1.20

13091

HOLDER,SWITCH

13091-3726

$25.81

13107

SHAFT

13107-3740

$8.37

14090

COVER,HANDLE,UPP,BLACK

14090-3766-MA

$608.63

14090A

COVER,HANDLE,LWR,BLACK

14090-3767-MA

$473.10

27010

SWITCH,STOP&START

27010-3780

$236.94

27045A

SWITCH-ASSY,STOP&START

27045-3760

$501.60

32099

CASE,LWR,SWITCH

32099-3725

$41.56

32099B

CASE,FR,SWITCH

32099-3818

$34.34

32099C

CASE,UPP,SWITCH

32099-3860

$31.20

39058

HANDLE-COMP,F.BLACK

39058-3743-6Z

$210.25

39063

HOUSING-CONTROL

39063-3727

$29.36

39074

LEVER-ASSY-THROTTLE

39074-3726

$114.29

39075

LEVER-THROTTLE

39075-3714

$42.30

92009

SCREW,8X22

92009-3701

$5.72

92009A

SCREW,6X30

92009-3837

$4.17

92033

RING-SNAP

92033-3723

$2.64

92037

CLAMP,HANDLEBAR

92037-503

$15.14

92072

BAND,TETHER SWITCH

92072-3809

$58.43

92144

SPRING

92144-3749

$3.81

92200

WASHER

92200-3738

$2.66

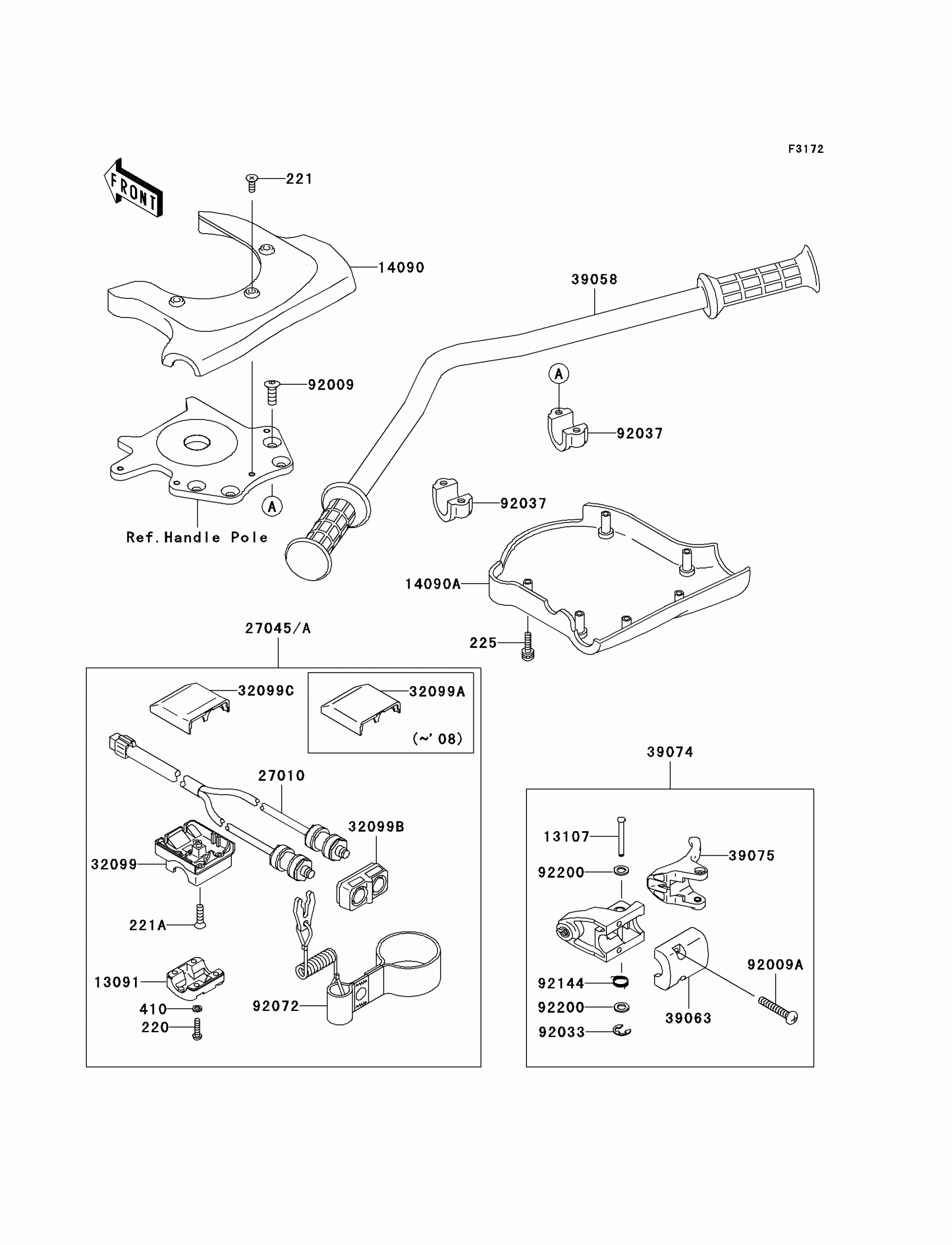

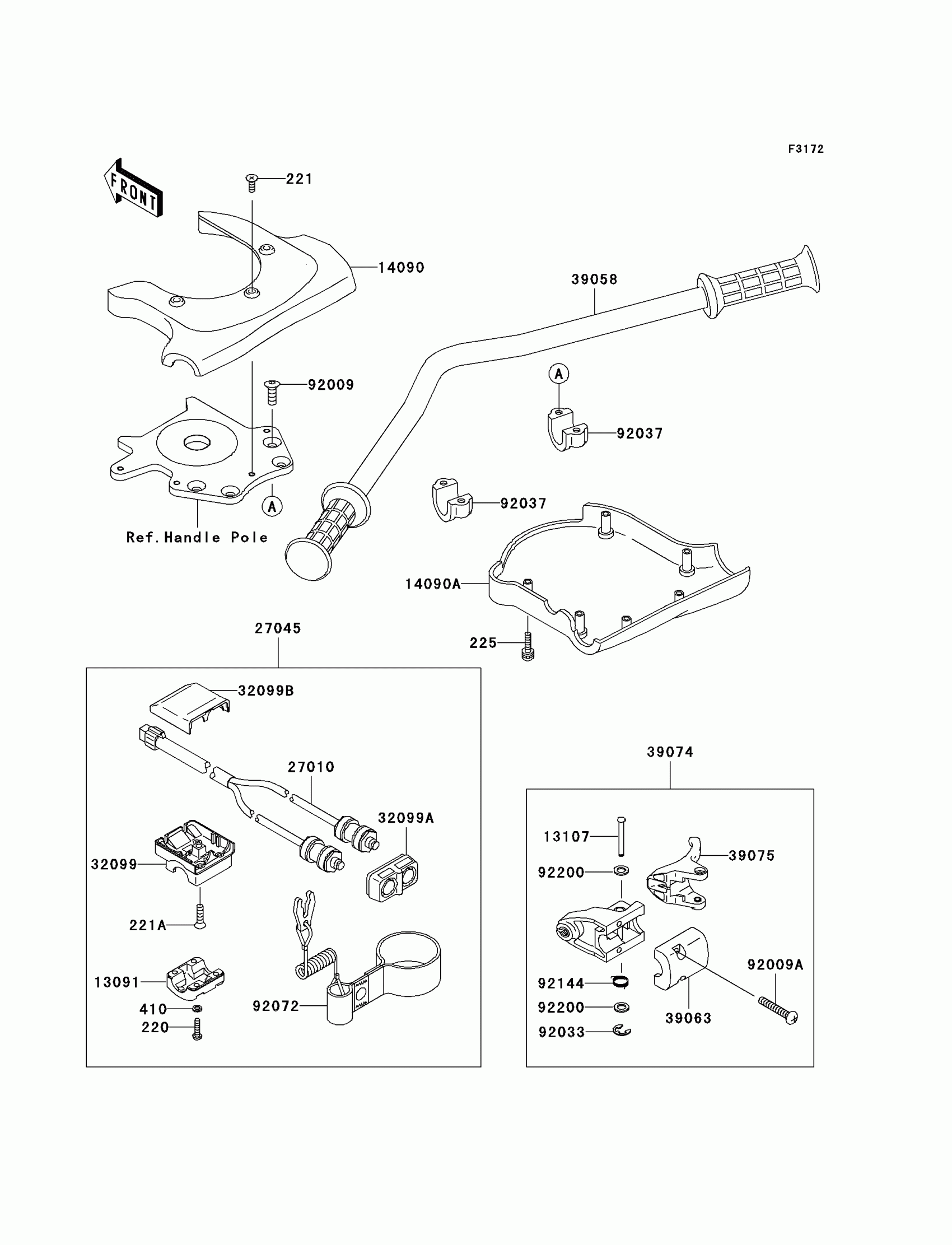

Kawasaki Jet Ski® 800 SX-R Handlebar Diagram
