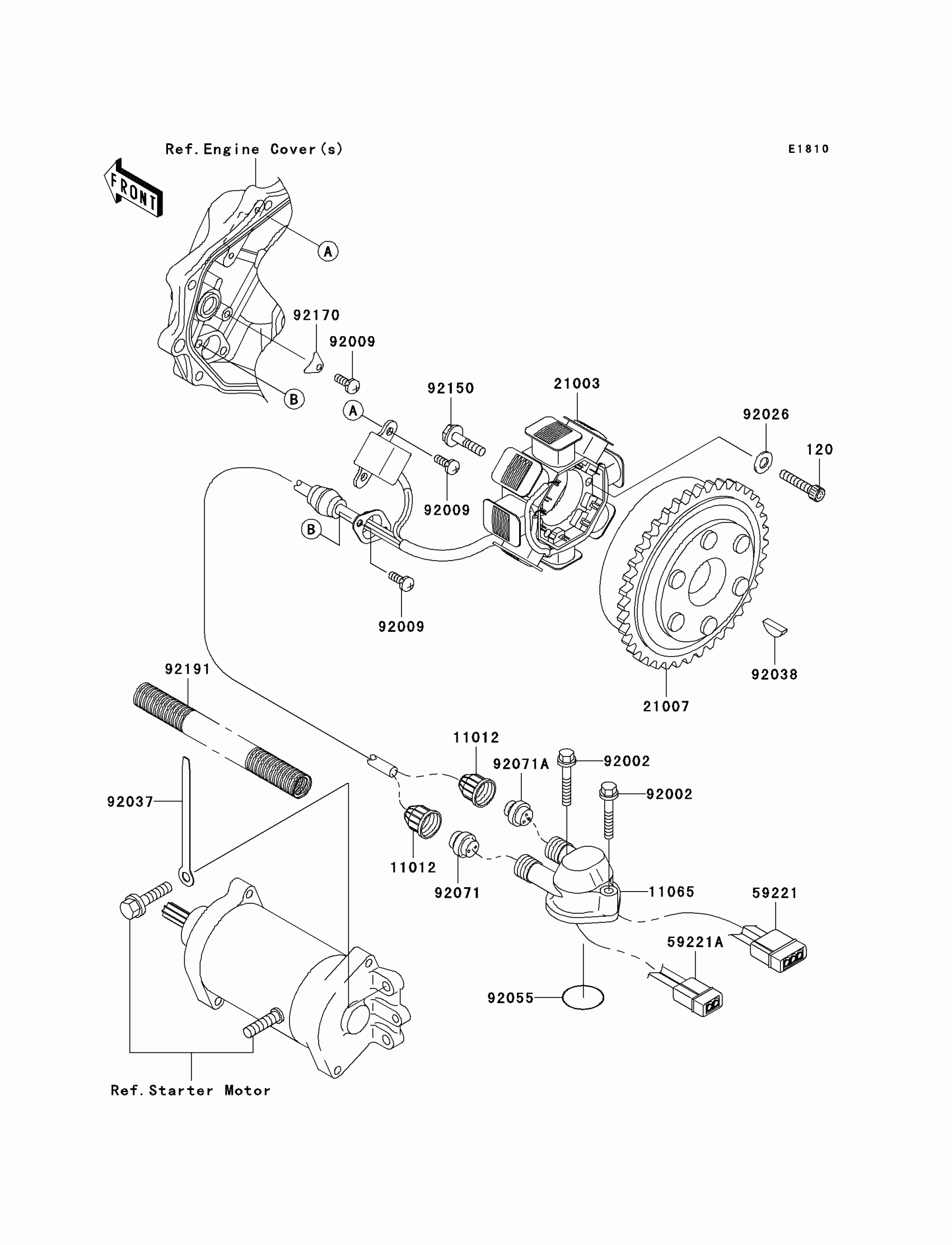

Kawasaki Jet Ski® 800 SX-R Generator Diagram

Description

Price

120

BOLT-SOCKET,6X30

120CA0630

$5.05

11012

CAP

11012-3005

$4.18

11065

CAP

11065-3724

$36.33

21003

STATOR,MAGNETO

21003-3748

$866.34

21007

ROTOR,MAGNETO

21007-3733

$1,063.02

59221

CONNECTOR-CORD

59221-3703

Unavailable

59221A

CONNECTOR-CORD

59221-3706

$8.25

92002

BOLT,6X35

92002-3715

$5.75

92009

SCREW,5X12

92009-1296

$3.53

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92037

CLAMP,L=100

92037-3736

$4.85

92038

KEY,WOODRUFF

92038-001

$3.78

92055

RING-O

92055-3706

$3.55

92071

GROMMET

92071-3006

$5.24

92071A

GROMMET

92071-3784

Unavailable

92150

BOLT

92150-3843

$19.36

92170

CLAMP,HARNEES

92170-3728

$4.14

92191

TUBE

92191-3916

$4.66
