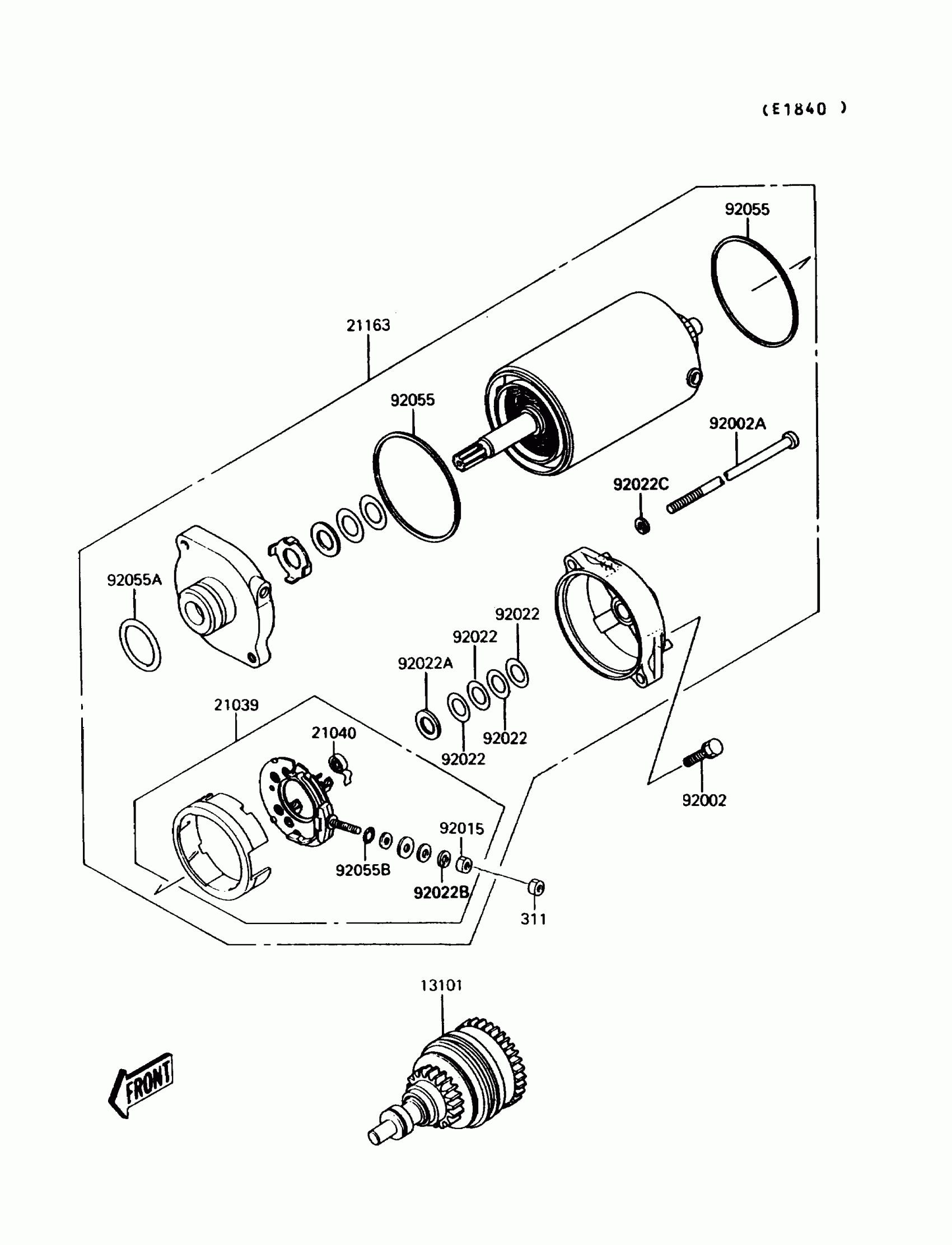

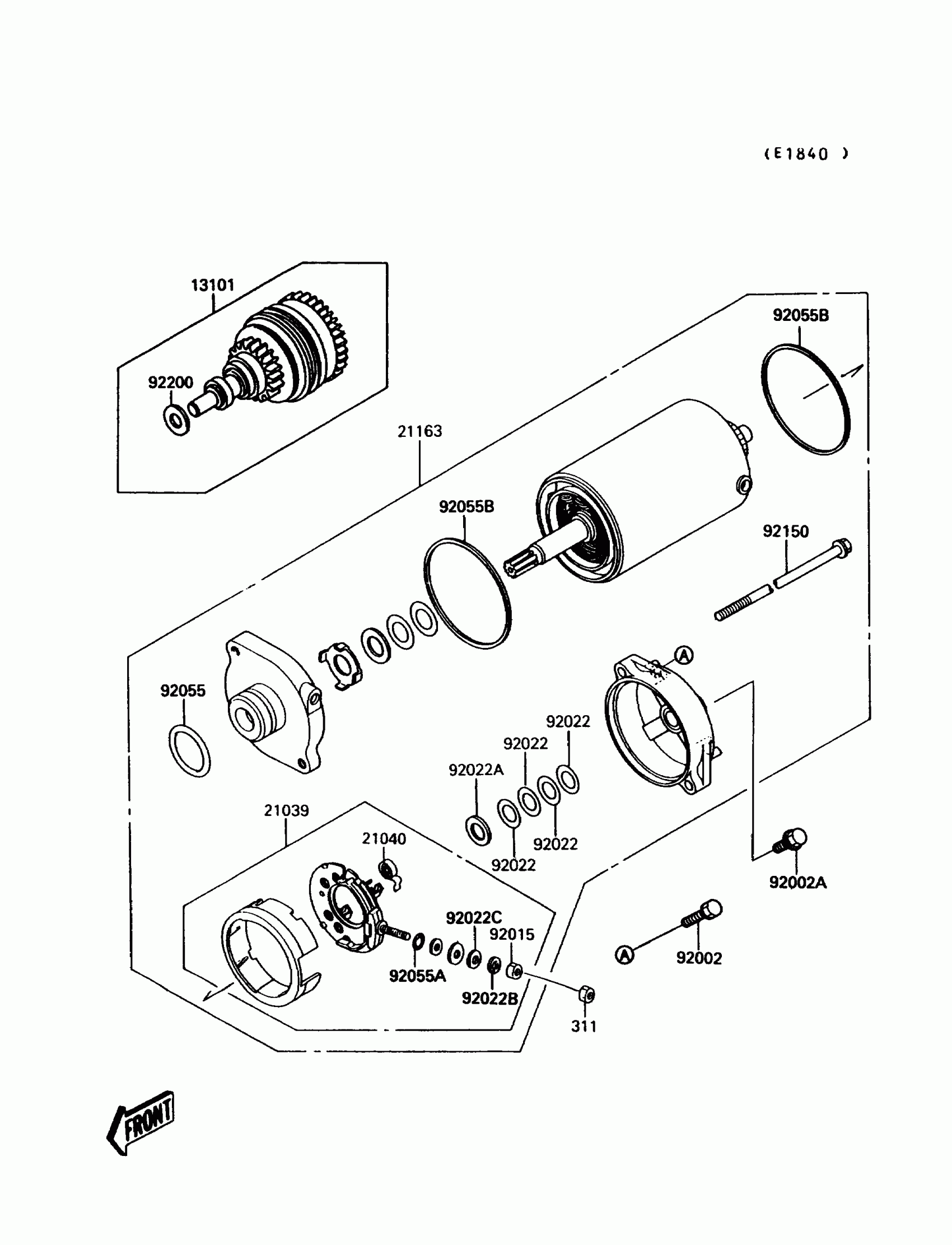

Kawasaki Jet Mate Starter Motor Diagram

Description

Price

13101

GEAR-ASSY

13101-3701

Unavailable

21039

BRUSH,CARBON

21039-3702

Unavailable

21040

SPRING-BRUSH

21040-1003

$9.12

21163

STARTER-ELECTRIC

21163-3702

Unavailable

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT

92002-3744

$37.51

92015

NUT,6MM

92015-3710

$3.75

92022

WASHER,9.1X18X0.2

21025-011

$4.67

92022A

WASHER,9.1X18X0.8

92022-1132

$5.42

92022B

WASHER,6MM

92022-3711

$3.75

92022C

WASHER,SPRING,5MM

92022-3712

Unavailable

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

311

NUT-HEX,6MM

311R0600

$0.65
