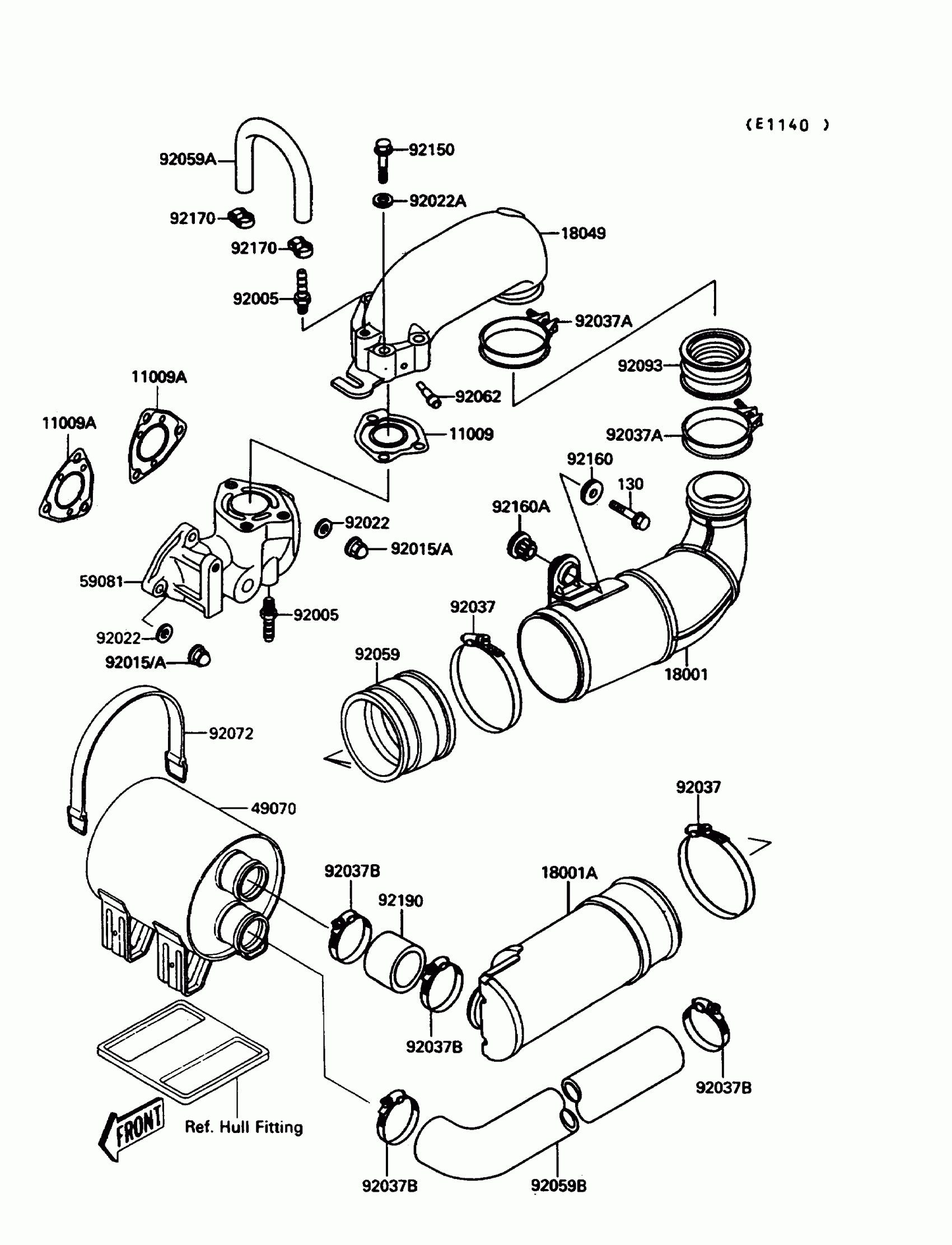

Kawasaki Jet Mate Muffler Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE

11009-3752

Unavailable

11009A

GASKET,EXHAUST PIPE

11009-3772

Unavailable

18001

MUFFLER,BODY

18001-3721

$508.31

18001A

MUFFLER,BODY

18001-3731

$350.92

18049

PIPE-EXHAUST

18049-3725

Unavailable

49070

MUFFLER-COMP,WATER BOX

49070-3708

$722.39

59081

MANIFOLD-EXHAUST

59081-3706

Unavailable

92005

FITTING,HOSE

92005-3001

$10.71

92015

NUT,CAP,8MM

92015-1371

$3.81

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92037

CLAMP,MAX120.7MM

92037-3733

Unavailable

92037A

CLAMP,68MM

92037-3740

$11.11

92037B

CLAMP

92037-509

$4.88

92059

TUBE,MUFFLER CONNECTING

92059-3767

Unavailable

92059A

TUBE

92059-3816

Unavailable

92059B

TUBE

92059-3822

Unavailable

92062

NOZZLE

92062-3705

$6.73

92072

BAND,L=384

92072-3713

Unavailable

92093

SEAL

92093-3705

Unavailable

92150

BOLT,10X50

92150-3723

Unavailable

92160

DAMPER,MUFFLER

92160-3701

Unavailable

92160A

DAMPER,MUFFLER MOUNT

92160-3702

$7.50

92170

CLAMP

92170-3720

$10.33

92190

TUBE

92190-3702

Unavailable

130

BOLT-FLANGED

130Z0845

Unavailable
