1990 Kawasaki Jet Mate Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1990 Kawasaki Jet Mate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

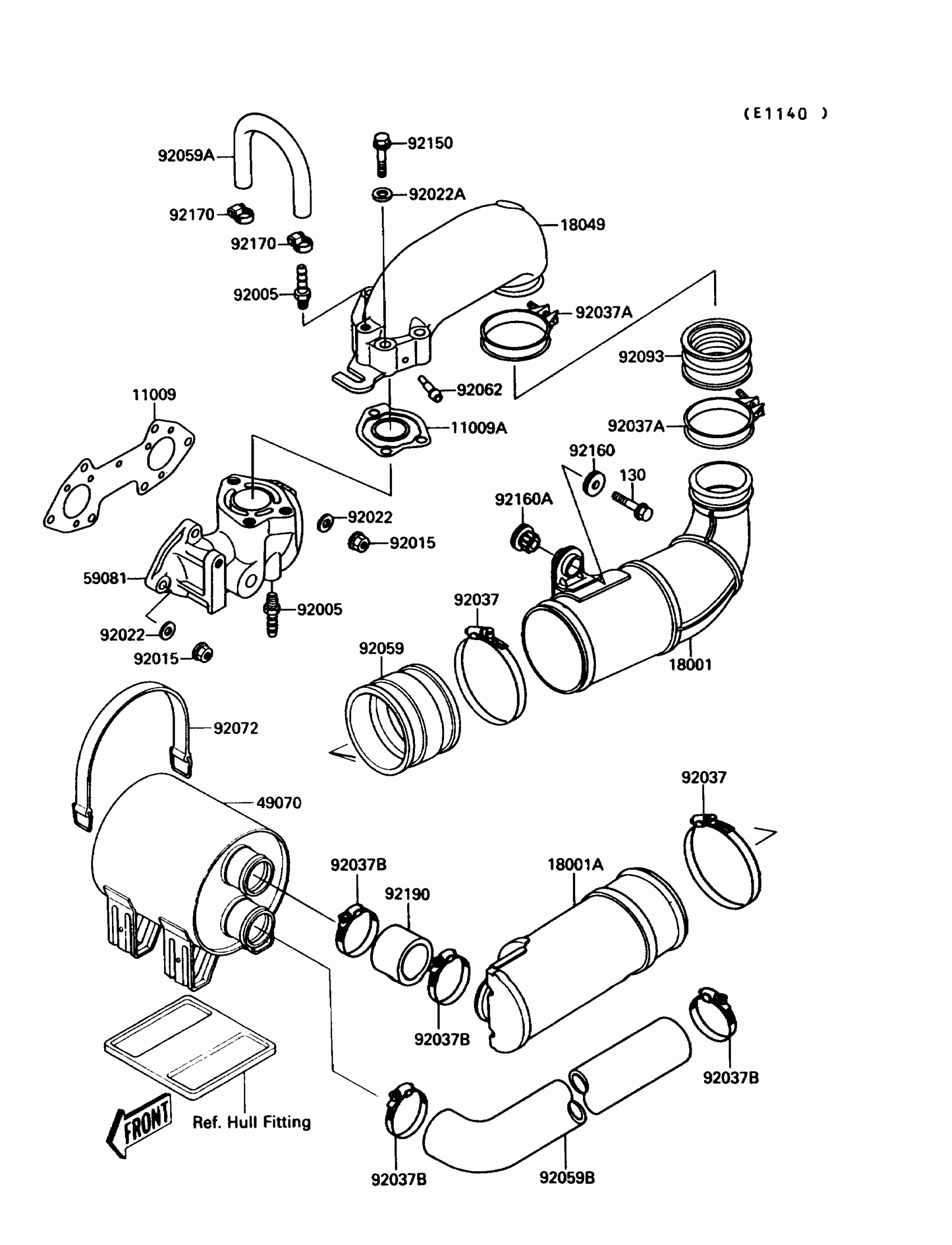

1990 Kawasaki Jet Mate Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST MANIFOLD

11009-3722

1
Out of stock

11009A

GASKET,EXHAUST PIPE

11009-3752

1
Out of stock

18001

MUFFLER,BODY

18001-3721

1

$508.31

In stock

18001A

MUFFLER,BODY

18001-3731

1

$350.92

In stock

18049

PIPE-EXHAUST

18049-3717

1

$192.99

In stock

49070

1

$722.39

In stock

59081

MANIFOLD-EXHAUST

59081-3705

1
Out of stock

92005

FITTING,HOSE

92005-3001

1
Out of stock

92015

NUT,FLANGED,8MM

92015-3709

1

$4.01

In stock

92022

WASHER,8.2X18X1.5

92022-1964

1
Out of stock

92022A

WASHER,10.2X20X1.5

92022-3742

1
Out of stock

92037

CLAMP,MAX120.7MM

92037-3733

1
Out of stock

92037A

CLAMP,68MM

92037-3740

1

$11.57

In stock

92037B

CLAMP

92037-509

1

$4.88

In stock

92059

TUBE,MUFFLER CONNECTING

92059-3767

1
Out of stock

92059A

TUBE

92059-3816

1
Out of stock

92059B

TUBE

92059-3822

1
Out of stock

92062

NOZZLE

92062-3705

1

$7.01

In stock

92072

BAND,L=384

92072-3713

1
Out of stock

92093

SEAL

92093-3705

1
Out of stock

92150

BOLT,10X50

92150-3723

1
Out of stock

92160

DAMPER,MUFFLER

92160-3701

1
Out of stock

92160A

1

$7.81

In stock

92170

CLAMP

92170-3720

1

$10.76

In stock

92190

TUBE

92190-3702

1
Out of stock

130

BOLT-FLANGED

130Z0845

1
Out of stock
