1990 Kawasaki Jet Mate Hull Fittings Diagram

← All diagrams

Find the part on the Hull Fittings diagram for your 1990 Kawasaki Jet Mate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

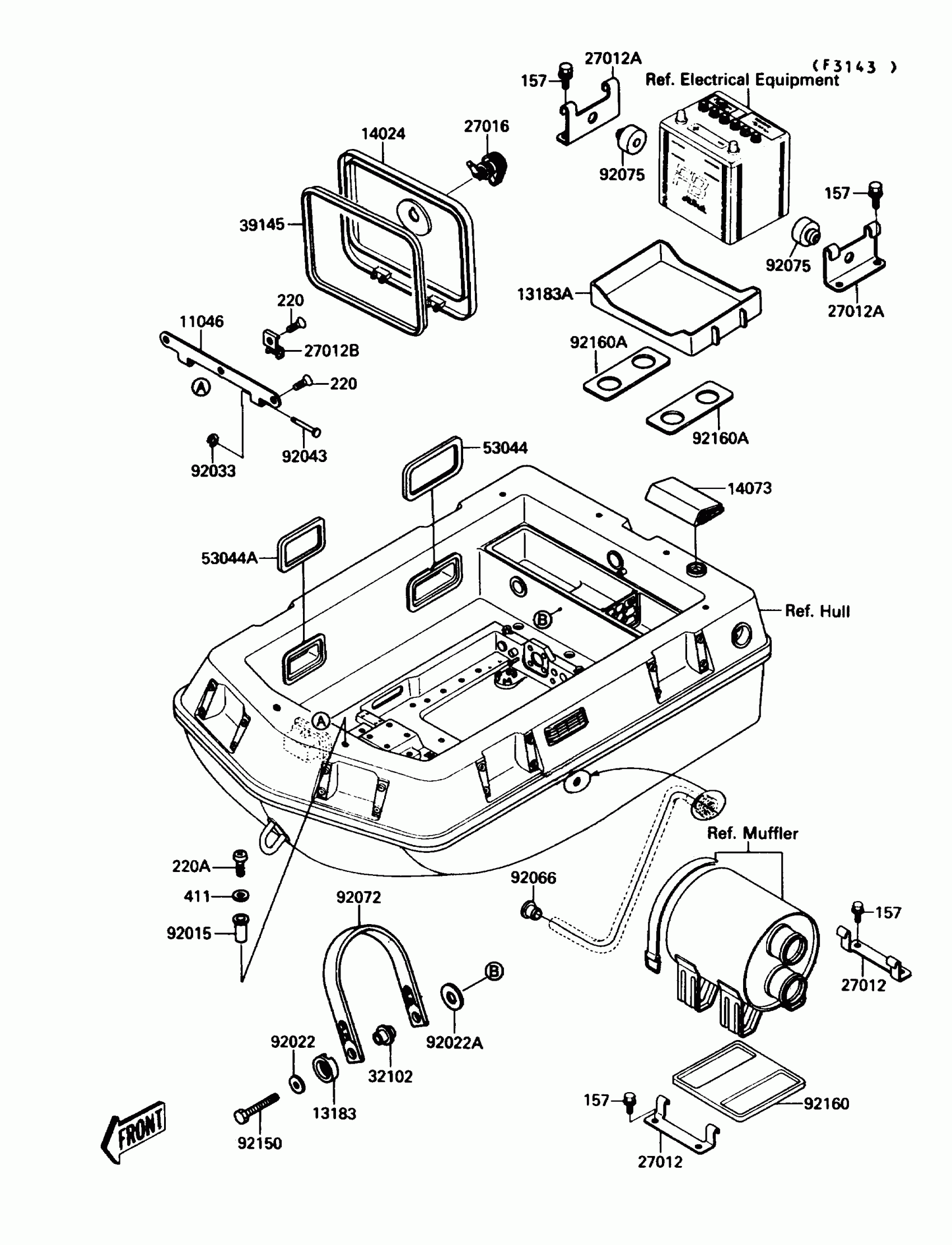

1990 Kawasaki Jet Mate Hull Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,STRAGE

11046-3768

1
Out of stock

13183

PLATE

13169-3714

1
Out of stock

13183A

PLATE,BATTERY

13183-3751

1
Out of stock

14024

COVER,FRONT STORAGE,P.WHITE

14024-3742-6F

1
Out of stock

14073

DUCT,BLOWER

14073-3719

1

$40.19

In stock

27012

HOOK,WATER MUFFLER

27012-3728

1
Out of stock

27012A

HOOK,BATTERY

27012-3736

1
Out of stock

27012B

HOOK,STRAGE LOCK

27012-3747

1
Out of stock

27016

LOCK-ASSY,STRAGE

27016-3711

1
Out of stock

32102

PIPE

32102-3704

1
Out of stock

39145

TRIM-SEAL

39145-3724

1

$29.69

In stock

53044

TRIM,REAR SIDE

53044-3705

1

$46.89

In stock

53044A

TRIM,FRONT SIDE

53044-3706

1

$39.03

In stock

92015

NUT,6MM

92015-3792

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92022A

WASHER,15X34X2.0

92022-3738

1
Out of stock

92033

RING-SNAP,2MM

92033-3711

1
Out of stock

92043

PIN,3X31

92043-3724

1
Out of stock

92066

PLUG,PROTECTOR

92066-3722

1
Out of stock

92072

BAND,SEAT

92072-3737

1
Out of stock

92075

DAMPER

92075-1737

1
Out of stock

92150

BOLT,6X30

92150-3766

1
Out of stock

92160

DAMPER,WATER MUFFLER

92160-3705

1
Out of stock

92160A

DAMPER

92160-3722

1
Out of stock

157

BOLT-WSP,6X16

157R0616

1
Out of stock

220

SCREW-PAN-CROS,6X14

220R0614

1
Out of stock

220A

SCREW-PAN-CROS,6X16

220R0616

1
Out of stock

411

WASHER-PLAIN,6MM

411S0600

1
Out of stock
