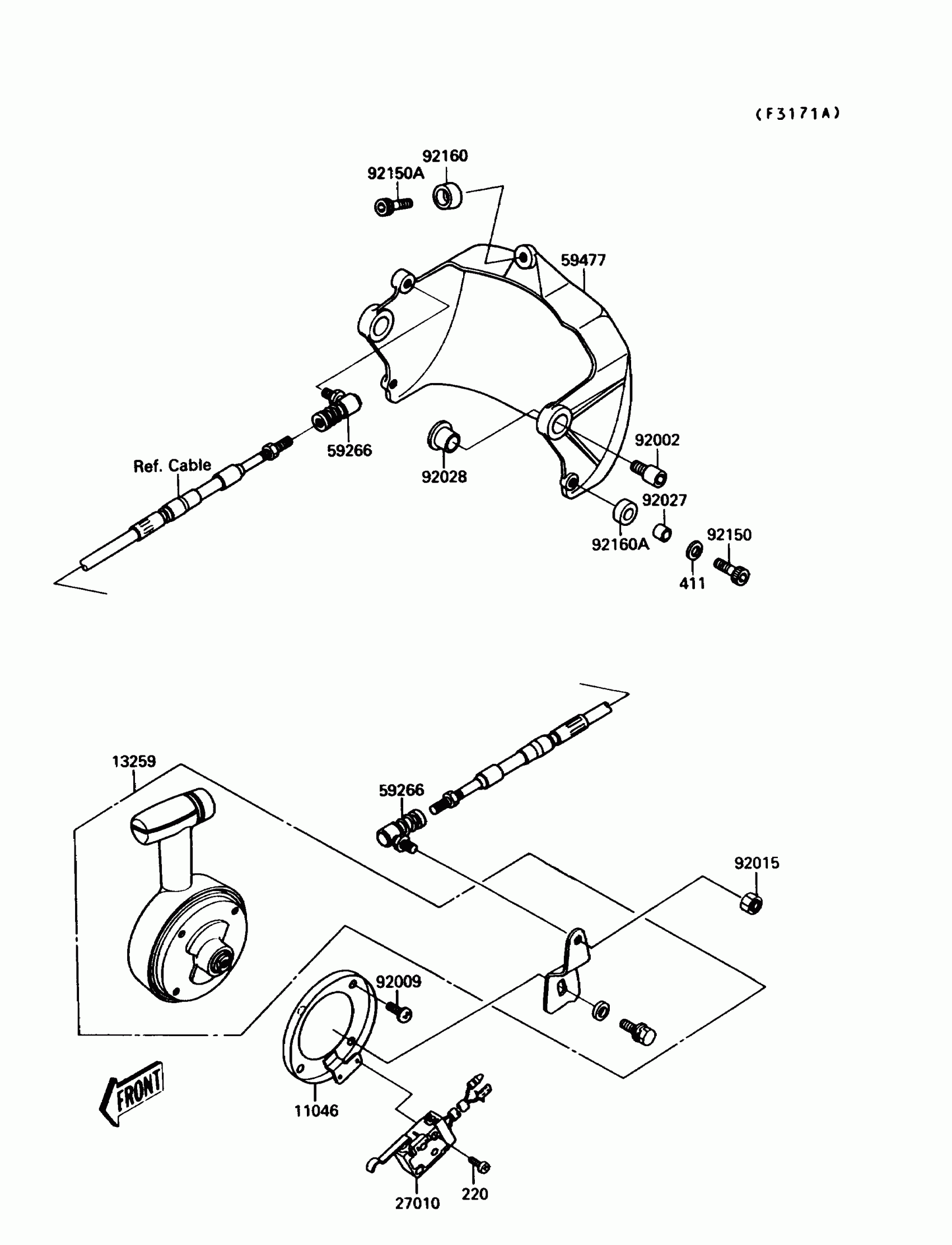

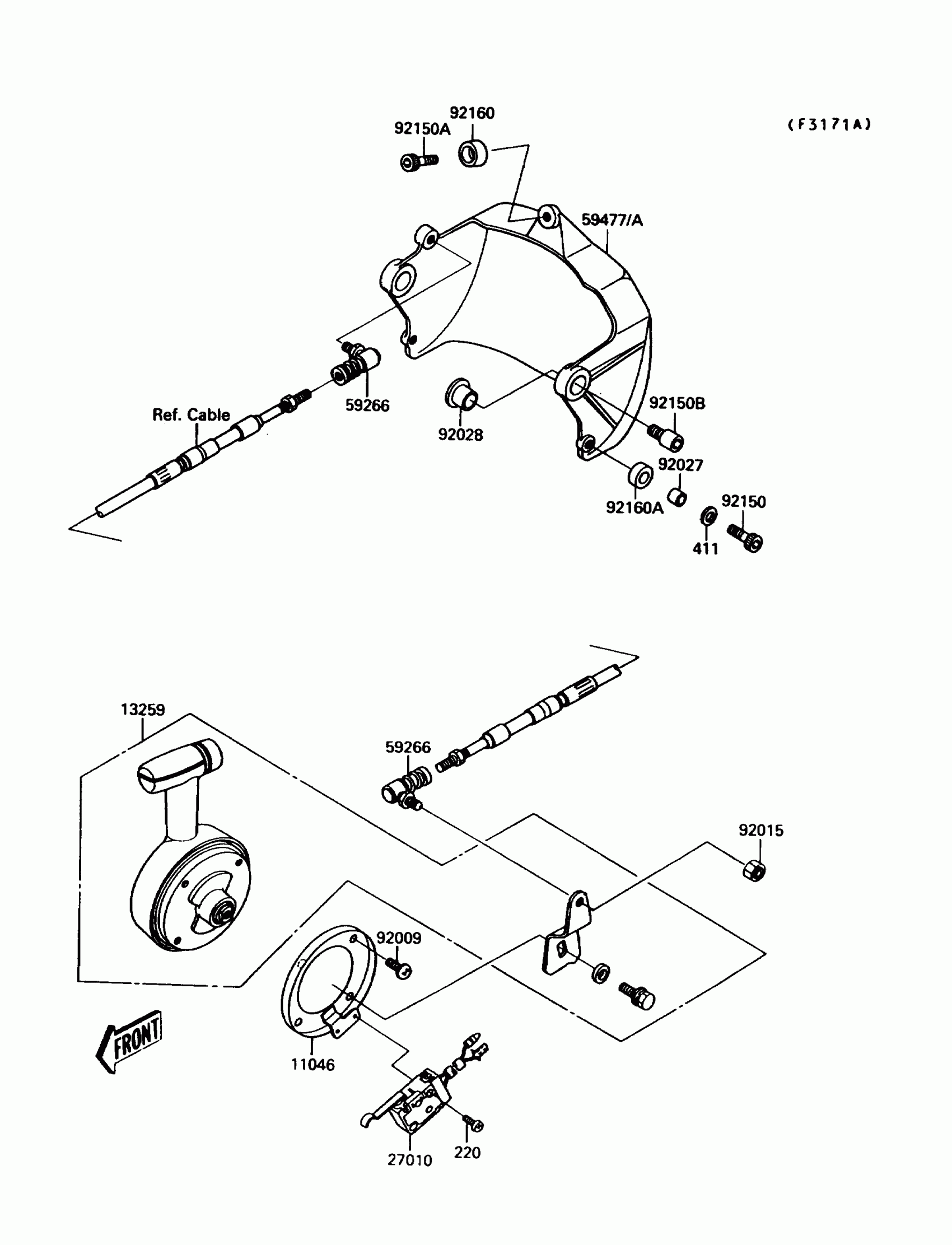

Kawasaki Jet Mate Handle Pole(Reverse) Diagram

Description

Price

11046

BRACKET,SHIFT CONTROL LEVER

11046-3812

Unavailable

13259

LEVER-ASSY-SHIFT CONTROL

13259-3701

Unavailable

27010

SWITCH

27010-3718

$64.02

59266

JOINT-BALL

59266-3701

$59.33

59477

BUCKET-REVERSE

59477-3701

Unavailable

92002

BOLT,SOCKET,6X11

92001-3701

$14.49

92009

SCREW,5X12

92009-3737

$3.93

92015

NUT,LOCK,6MM

92015-3766

Unavailable

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92028

BUSHING

92028-3740

$6.21

92150

BOLT,SOCKET,6X20

92150-3748

$2.74

92150A

BOLT,SOCKET,6X10

92150-3759

$4.15

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER

92160-3739

$4.92

220

SCREW-PAN-CROS,3X14

220R0314

$1.03

411

WASHER-PLAIN,6MM

411S0600

$1.49
