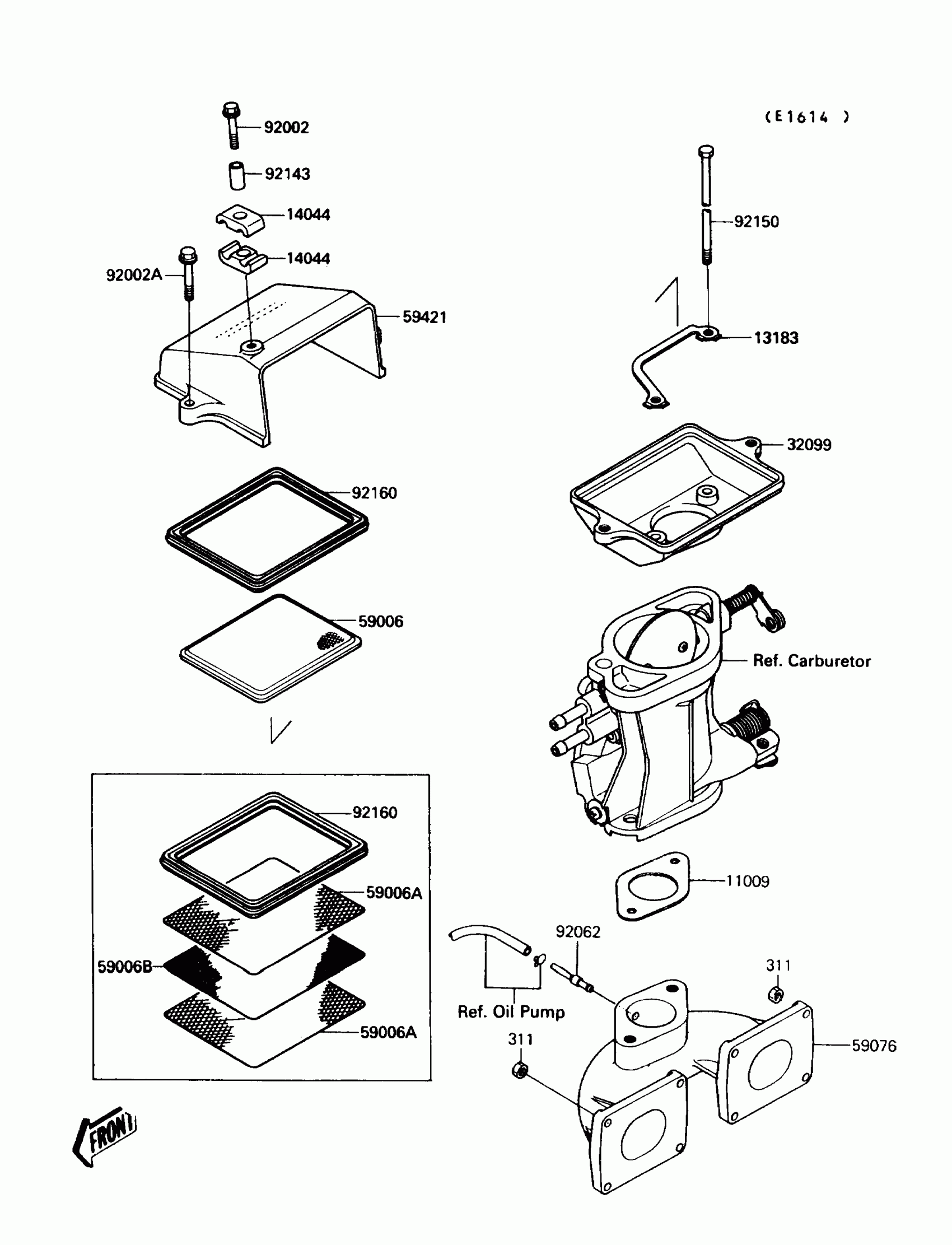

Kawasaki Jet Mate Flame Arrester Diagram

Description

Price

11009

GASKET,CARBURETOR

11009-3753

Unavailable

13183

PLATE

13183-3726

$5.54

14044

HOLDER-CABLE

14044-3707

Unavailable

32099

CASE,FLAME ARRESTER

32099-3736

$73.72

59006A

ARRESTER-FLAME

59006-3707

$31.84

59006B

ARRESTER-FLAME

59006-3708

$14.59

59076

MANIFOLD-INTAKE

59076-3705

$171.09

59421

COVER-INTAKE

59421-3706

$83.41

92002

BOLT,6X35

92002-3715

$5.75

92002A

BOLT,6X30

92002-3726

$3.57

92062

NOZZLE

92062-3703

$14.61

92143

COLLAR,7.5X10.5X24

92143-3717

Unavailable

92150

BOLT,6X113

92150-3724

$11.32

92160

DAMPER

92160-3704

$18.29

311

NUT-HEX,6MM

311R0600

$0.65
