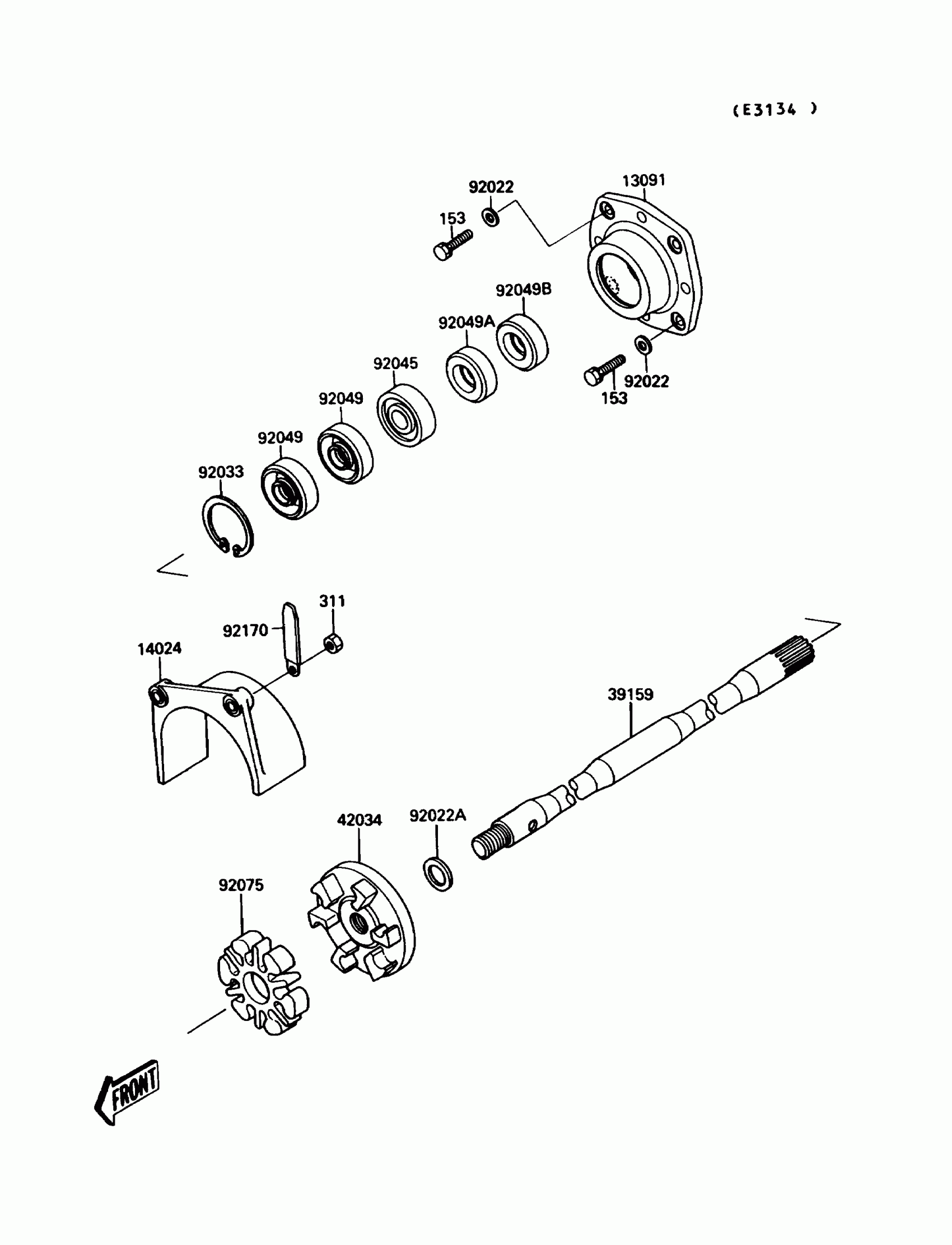

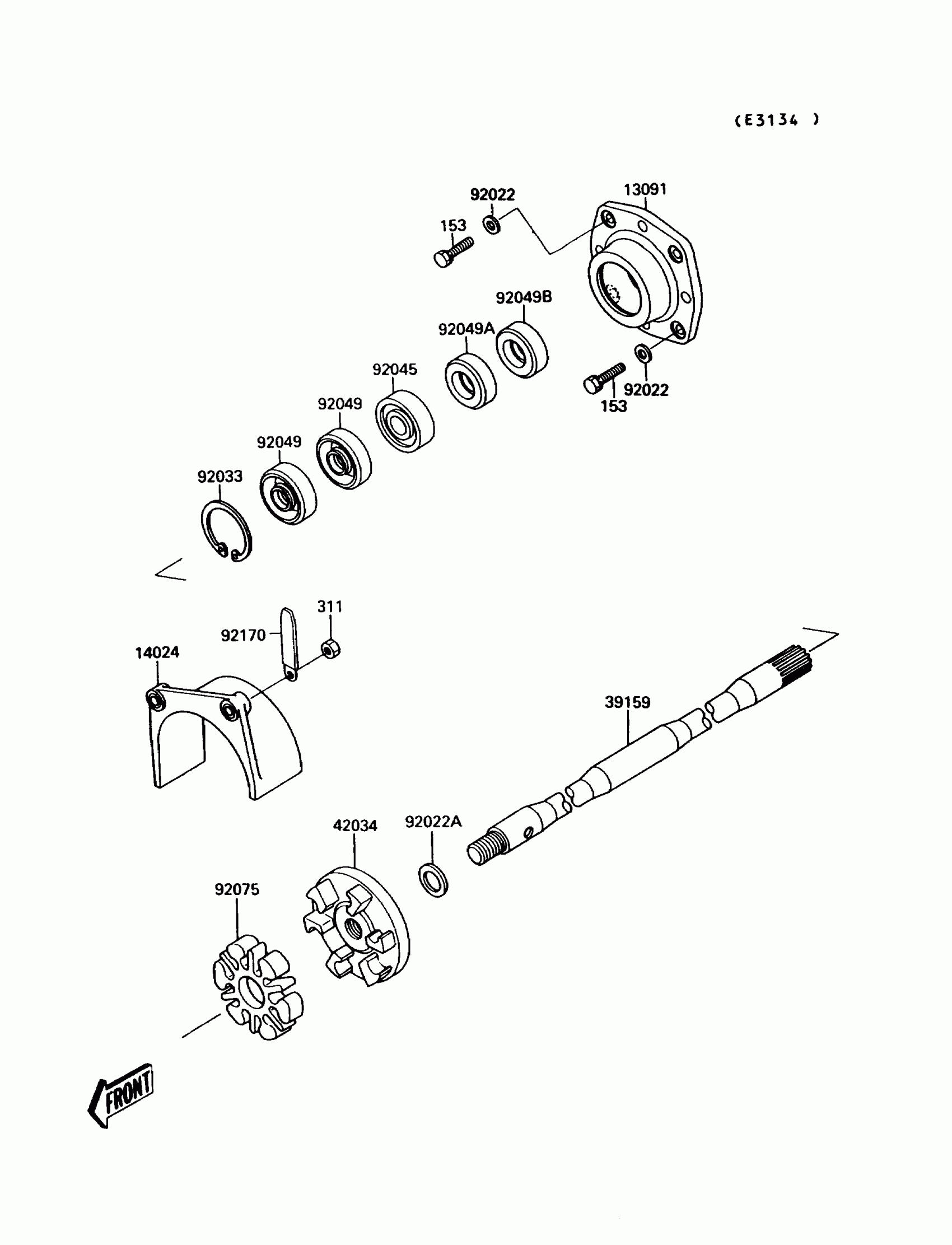

Kawasaki Jet Mate Drive Shaft Diagram

Description

Price

13091

HOLDER

13091-3730

Unavailable

14024

COVER,COUPLING

14024-3728

Unavailable

39159

SHAFT-DRIVE

39159-3703

$372.85

42034

COUPLING

42034-3705

$65.75

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,18X26X2.0

92022-3728

Unavailable

92033

RING-SNAP,42MM

92033-3713

$13.39

92045

BEARING-BALL,60042RD

92045-3705

$28.70

92049

SEAL-OIL,S620426

92049-3707

$6.04

92049A

SEAL-OIL,SCY20368

92050-502

$22.44

92049B

SEAL-OIL,SC20367

92050-503

$20.19

92075

DAMPER,COUPLING

92075-520

$96.96

92170

CLAMP

92170-3705

Unavailable

153

BOLT-WS-SMALL,8X25

153R0825

$5.36

311

NUT-HEX,6MM

311R0600

$0.65
