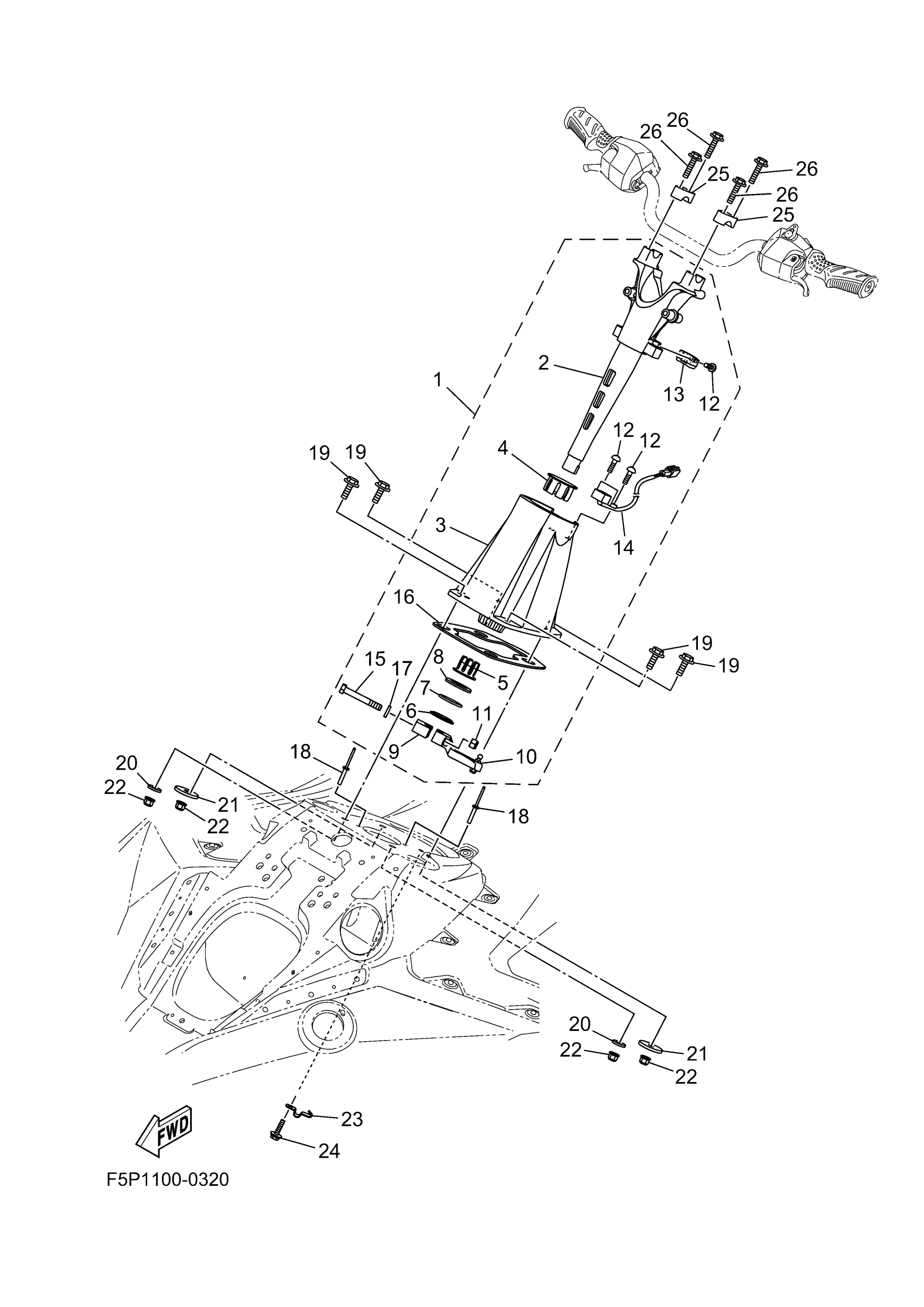

Yamaha JB1050FB (JETBLASTER) F7R2 2025 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER ASSY

F5P-61400-00-00

Unavailable

2

. SHAFT

F5P-6152D-00-00

Unavailable

3

. HOUSING ASSY

F5M-6152M-00-00

$171.20

4

. BUSH

F5M-6134M-00-00

$12.49

5

. BUSH

F5M-6134M-10-00

$9.08

6

. PLATE, RETAINING

F5M-61554-00-00

$9.27

7

. O-RING

F5M-613C5-00-00

Unavailable

8

. PLATE, COVER

F5M-6155G-00-00

$10.70

9

. HOLDER, STOPPER

F5M-61339-00-00

Unavailable

10

. ARM ASSY

F5P-6153R-00-00

Unavailable

11

. NUT, SELF-LOCKING

95720-08300-00

$3.33

12

. SCREW

F2X-613C1-00-00

$1.82

13

MAGNET

F2X-6838C-01-00

$26.49

14

SENSOR, MAGNET

F2X-6838B-02-00

$134.83

15

.. BOLT

F1K-61355-00-00

$17.41

16

. SEAL, RUBBER

F5M-6143C-00-00

$28.77

17

. WASHER

F5M-6153P-00-00

$5.00

18

RIVET, BLIND

90267-489U8-00

$0.99

19

BOLT

F3P-U1369-09-00

Unavailable

20

WASHER, PLATE

90201-109U6-00

$3.29

21

WASHER

F1W-U725E-00-00

$11.35

22

NUT, LOCK

F3Y-U142L-00-00

$2.52

23

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

24

BOLT, WITH WASHER

90119-06880-00

$3.52

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

26

BOLT, WITH WASHER

90119-08844-00

$1.29
