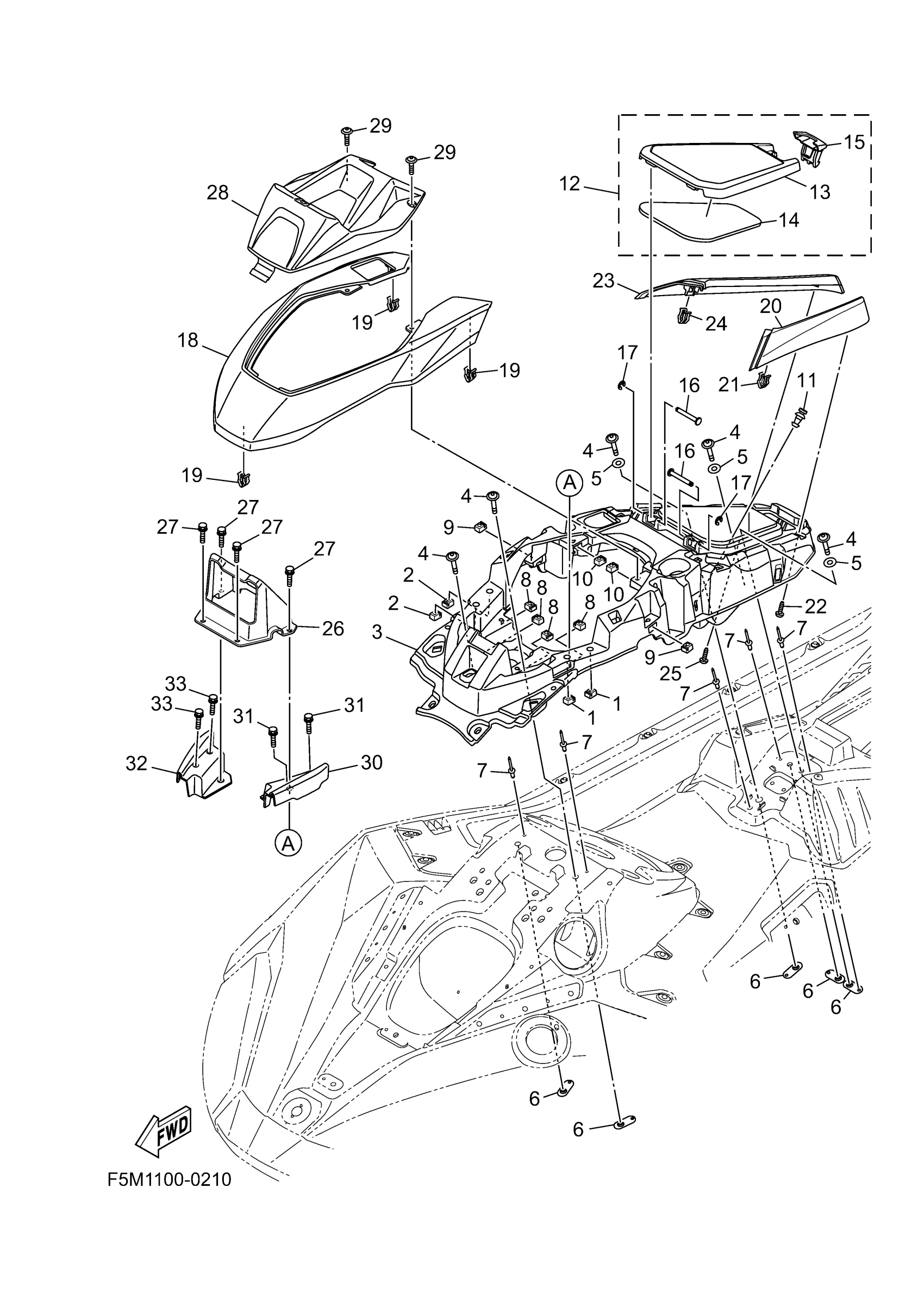

Yamaha JB1050FB (JETBLASTER) F7R2 2025 ENGINE HATCH 2 Diagram

#

Description
Price

1

NUT

F3X-U517E-00-00

$1.23

2

NUT

F3X-U517E-00-00

$1.23

3

COVER, CENTER

F5P-U5554-00-00

Unavailable

4

SCREW

F5G-U6829-00-00

$0.91

5

PACKING

F5P-U1439-00-00

Unavailable

6

PLATE, FIX

F2X-U5175-00-00

$1.80

7

RIVET 1

F4P-U516R-01-00

$4.87

8

NUT

F3X-U517E-00-00

$1.23

9

NUT

F3X-U517E-00-00

$1.23

10

NUT

F3X-U517E-00-00

$1.23

11

. SEAL

F3X-U2723-00-00

$2.16

12

GLOVE BOX COVER ASSY

F5P-U4705-00-00

Unavailable

13

. LID HATCH

F5P-U517H-00-00

Unavailable

14

. PACKING CASE

F5P-U519D-00-00

Unavailable

15

. LOCK

F4N-U2875-00-00

$3.95

16

PIN,HINGE

F5P-U517R-00-00

Unavailable

17

. E-RING

F5G-U515C-00-00

$1.67

18

COVER, ENGINE HATCH

F5P-U516N-30-00

Unavailable

19

CLIP

F3Y-U153K-00-00

$1.29

20

ORNAMENT LH

F5P-U517W-30-00

Unavailable

21

CLIP

F3Y-U153K-00-00

$1.29

22

SCREW

F2S-U13C1-00-00

$2.36

23

ORNAMENT RH

F5P-U517X-30-00

Unavailable

24

CLIP

F3Y-U153K-00-00

$1.29

25

SCREW

F2S-U13C1-00-00

$2.36

26

BRACKET, METER

F5P-U8238-00-00

Unavailable

27

BOLT, WITH WASHER

90119-06892-00

$3.79

28

COVER METER

F5P-U8262-01-00

Unavailable

29

SCREW

F3X-U7823-12-00

$1.25

30

SEAL

F5P-U2723-00-00

Unavailable

31

BOLT, WITH WASHER

90119-06892-00

$3.79

32

PLUG 2

F5P-U2724-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06892-00

$3.79
