1982 Yamaha IT465 (IT465J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1982 Yamaha IT465 (IT465J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

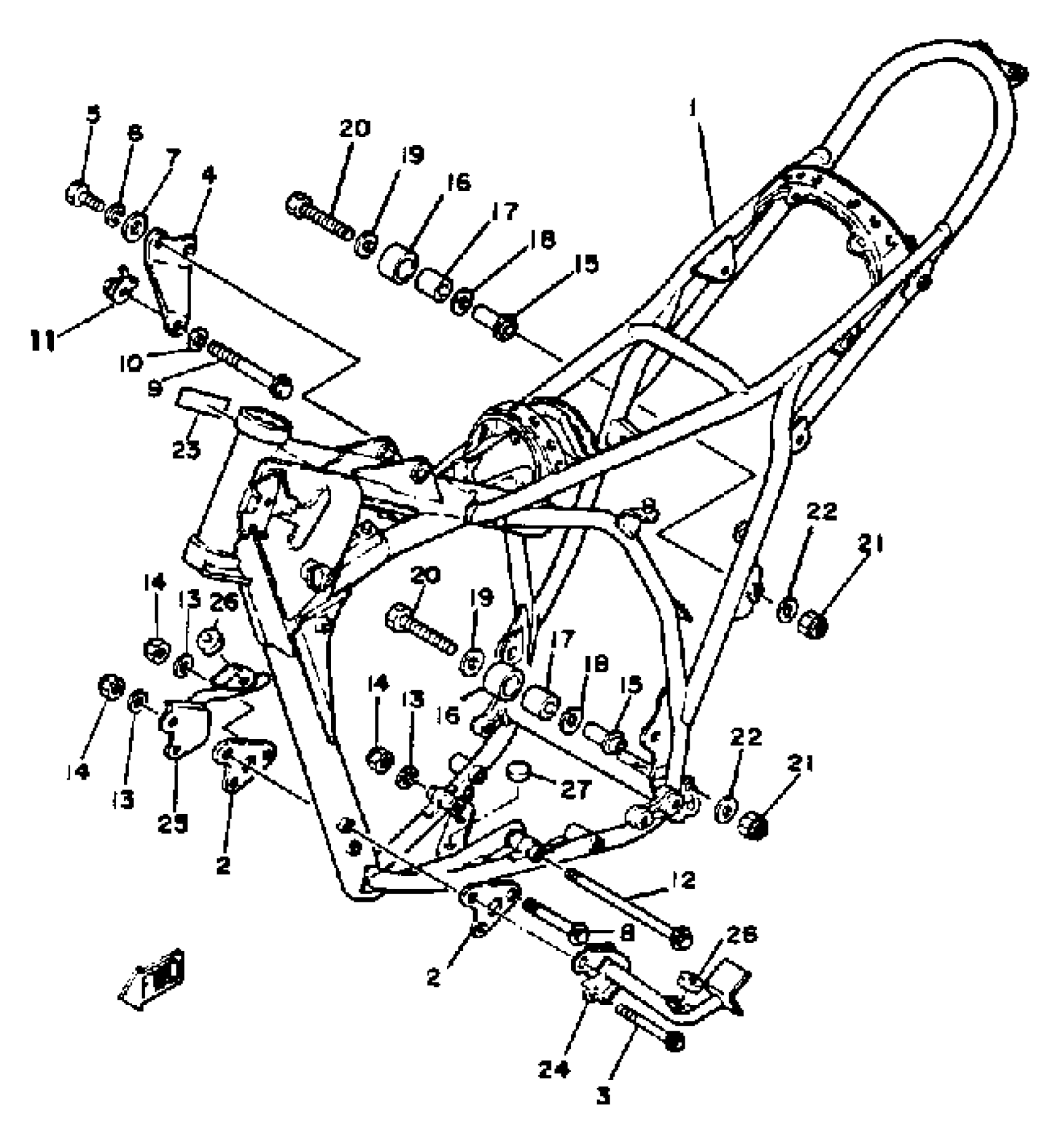

1982 Yamaha IT465 (IT465J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(4V5-21110-01-33)

1
Out of stock

2

BRACKET, FRT UPR 1

3R4-21415-00-00

1
Out of stock

3

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

4

BRACKET, REAR UPR 1

4V4-21425-00-00

1
Out of stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

9

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

10

1

$3.00

In stock

11

HOLDER, NUT

(4V6-21167-00-00)

1
Out of stock

12

BOLT, FLANGE

95811-08170-00

1
Out of stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

15

SHAFT

2K7-2148A-00-00

1
Out of stock

16

TENSIONER

5X6-22178-00-00

—
Out of stock

17

BUSH

4V4-22184-00-00

—

$3.57

In stock

18

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

19

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

20

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

21

NUT, U

95617-08100-00

—

$6.78

In stock

22

WASHER, PLATE

90201-08638-00

1
Out of stock

23

UNAVAILABLE IN PRICE BOOK

3R-42139-W0-00

1
Out of stock

24

GUARD, ENGINE 1

4V5-2147A-00-33

1
Out of stock

25

GUARD, ENGINE 2

4V5-2147E-00-33

1
Out of stock

26

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

—
Out of stock

27

DAMPER, LOCATING 1

22W-24181-00-00

—
Out of stock
