1982 Yamaha IT465 (IT465J) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1982 Yamaha IT465 (IT465J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

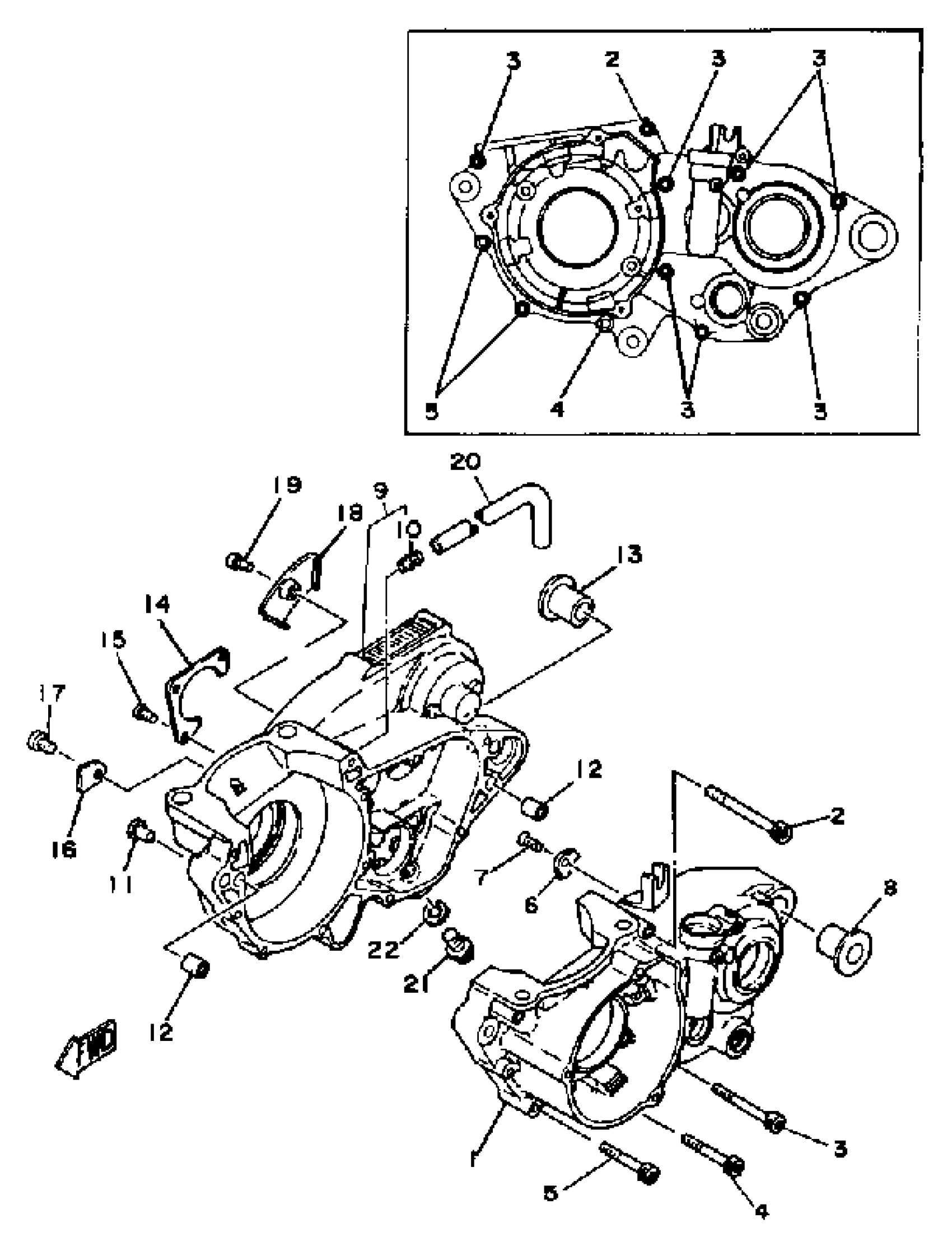

1982 Yamaha IT465 (IT465J) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. CRANKCASE 2

3R5-15121-05-00

1
Out of stock

1

. CRANKCASE 1

3R5-W1511-01-00

1
Out of stock

1

SCREW, SPEC''L SHAPE

90149-08169-00

1
Out of stock

1

OIL SEAL (15A)

93102-17263-00

1

$8.91

In stock

1

CRANKCASE SET (3R5)

99999-01366-00

1
Out of stock

2

BOLT, SOCKET

91317-06075-00

1
Out of stock

3

BOLT,SOCKET

91317-06060-00

1
Out of stock

4

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

5

BOLT,SOCKET

91317-06045-00

1
Out of stock

6

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

8

COLLAR

90387-16776-00

1
Out of stock

9

. CRANKCASE 2

3R5-15121-05-00

1
Out of stock

9

. CRANKCASE 1

3R5-W1511-01-00

1
Out of stock

9

SCREW, SPEC''L SHAPE

90149-08169-00

1
Out of stock

9

OIL SEAL (15A)

93102-17263-00

1

$8.91

In stock

9

CRANKCASE SET (3R5)

99999-01366-00

1
Out of stock

10

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

11

PLUG (17J)

90338-07124-00

—

$8.55

In stock

12

PIN, DOWEL

99530-12016-00

—

$4.12

In stock

13

COLLAR

90387-16776-00

1
Out of stock

14

PLATE, BEARING COVER

3R4-15381-00-00

—

$4.28

In stock

15

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

16

HOLDER

4V4-15118-00-00

—

$25.38

In stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

PLATE

3R4-15113-00-00

1
Out of stock

19

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

20

HOSE (L1500)

90445-084J0-00

—

$16.40

In stock

21

—

$2.82

In stock

22

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
Crankcase Cover →
