1980 Yamaha IT425 (IT425G) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

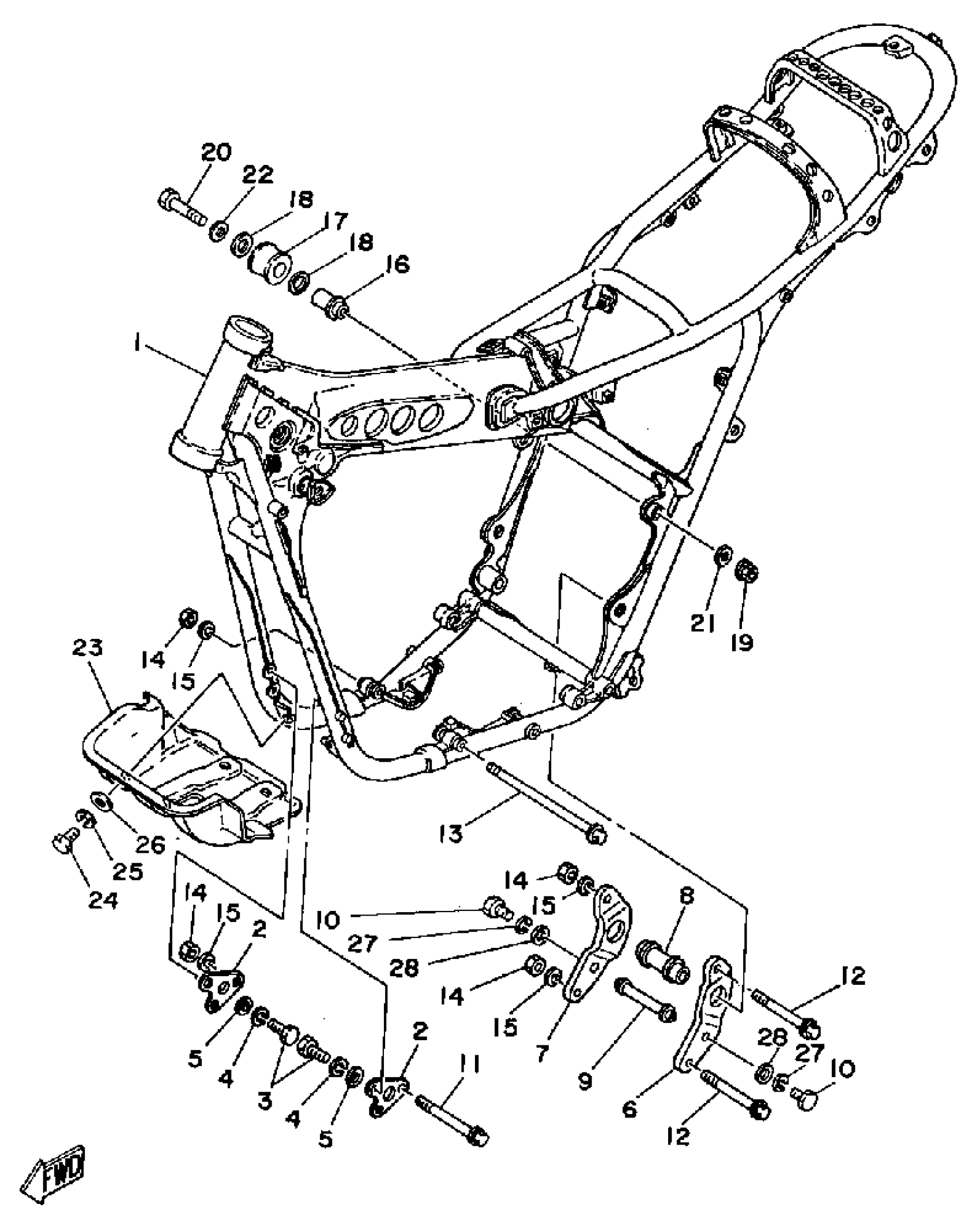

1980 Yamaha IT425 (IT425G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3R8-21110-00-33)

1
Out of stock

2

BRACKET, FRT UPR 1 (2K7-21415-00)

2X4-21415-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

BRACKET, REAR LWR 1

2K7-21427-00-00

1
Out of stock

7

BRACKET, REAR LWR 2

(2K7-21428-00-00)

1
Out of stock

8

SPACER

(2K7-21459-00-00)

1
Out of stock

9

BOSS, ENGINE MOUNT

(2K7-21424-00-00)

1
Out of stock

10

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

11

BOLT, FLANGE

95817-08100-00

1

$4.32

In stock

12

BOLT, FLANGE

95817-08090-00

1

$3.54

In stock

13

BOLT, FLANGE

95817-08180-00

1
Out of stock

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

15

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

16

SHAFT

2K7-2148A-00-00

—
Out of stock

17

TENSIONER

2K6-22178-00-00

1
Out of stock

18

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

19

NUT, NYLON

95717-08300-00

—

$2.57

In stock

20

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

21

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

PROTECTOR, ENGINE

(2X7-21471-00-00)

1
Out of stock

24

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

26

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
