1982 Yamaha IT250 (IT250J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha IT250 (IT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

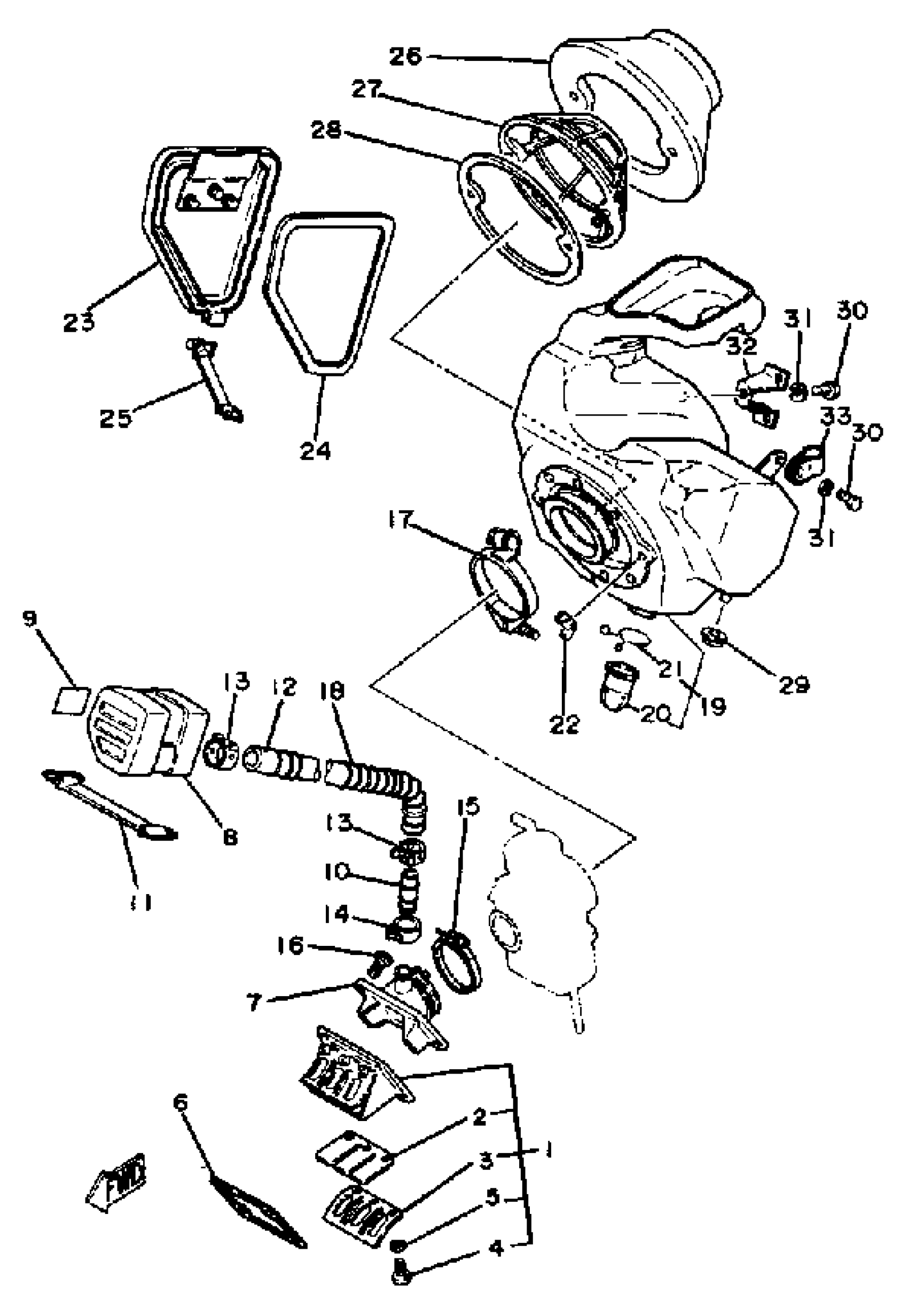

1982 Yamaha IT250 (IT250J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

2X5-13610-00-00

1
Out of stock

2

. REED, VALVE

2K7-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

JOINT, CARBURETOR

4V3-13565-00-00

1
Out of stock

8

CHAMBER, AIR

4V3-13581-00-00

1
Out of stock

9

EMBLEM

4V3-1441K-00-00

1
Out of stock

10

PIPE, MANIFOLD

4V3-13584-01-00

1
Out of stock

11

BAND, BATTERY

1E6-82131-00-00

1

$21.34

In stock

12

HOSE

90445-21562-00

1
Out of stock

13

CLIP (4V3)

90467-20050-00

1

$3.25

In stock

14

CLIP

90468-08104-00

1

$2.72

In stock

15

CLAMP, HOSE

90460-51109-00

1
Out of stock

16

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

17

CLAMP, HOSE

90460-68231-00

1
Out of stock

18

SPRING, COMPRESSION

90501-14633-00

1
Out of stock

19

AIR CLEANER CASE

(4V5-W1441-00-00)

1
Out of stock

20

SEAL

1W4-14457-00-00

1
Out of stock

21

CLIP

90467-20M15-00

1

$6.23

In stock

22

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

23

CAP, CLEANER CASE 1

4V5-14412-00-00

1
Out of stock

24

SEAL

39W-14452-00-00

1
Out of stock

25

BAND

4V5-14455-00-00

1
Out of stock

26

ELEMENT, AIR CLNR

3R4-W1442-01-00

1
Out of stock

27

GUIDE, ELEMENT

3R4-14458-00-00

1
Out of stock

28

HOLDER, GUIDE

(4V4-14459-00-00)

1
Out of stock

29

GROMMET

90480-13014-00

—

$6.85

In stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

PLATE, CLNR CS FTNG

4V4-14484-00-00

1
Out of stock

33

STAY 2

4V4-14499-00-00

1
Out of stock
