1981 Yamaha IT250 (IT250H) Stand - Footrest Diagram

← All diagrams

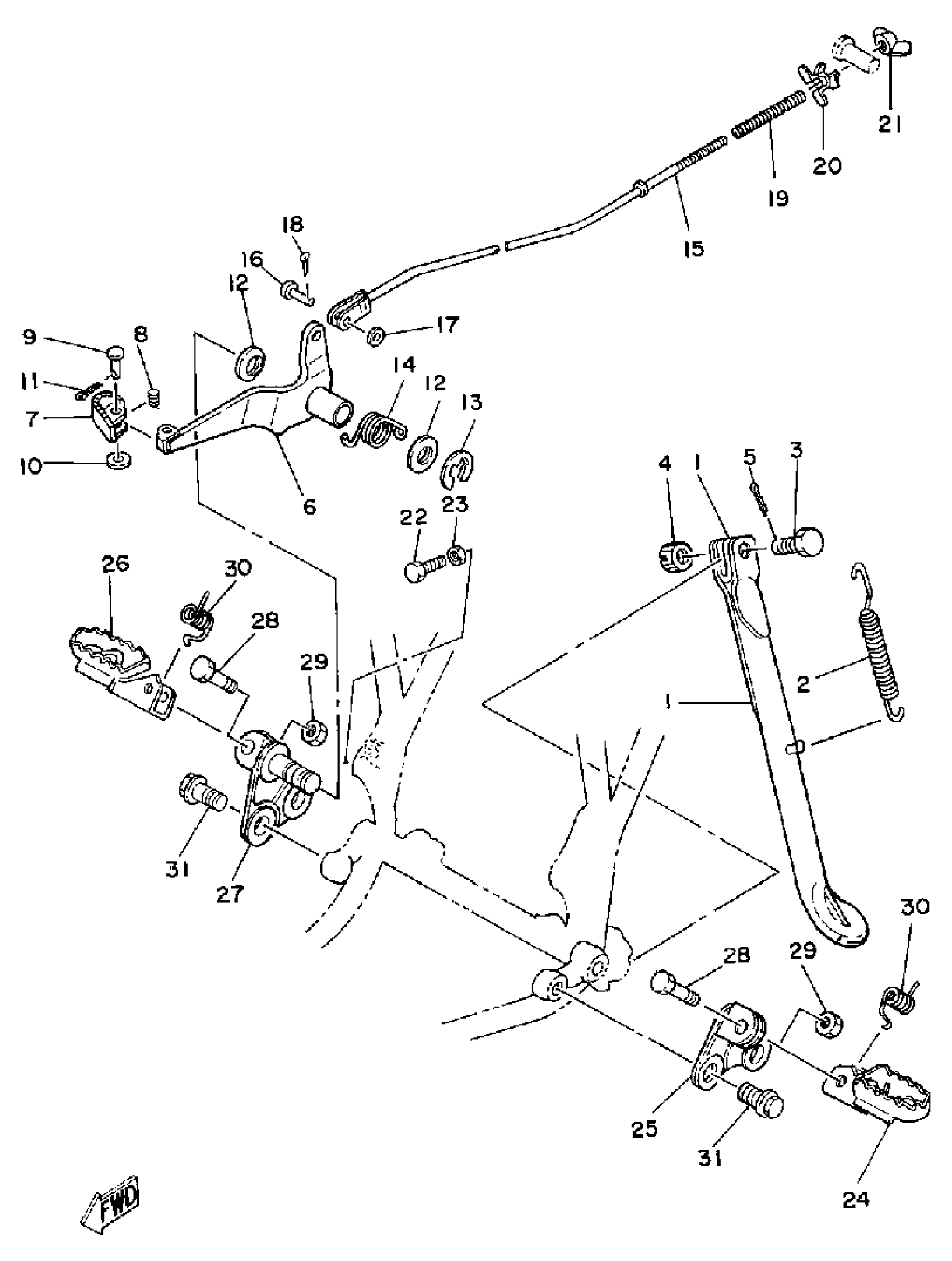

Find the part on the Stand - Footrest diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha IT250 (IT250H) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, SIDE

4V5-27311-01-33

1
Out of stock

2

SPRING (434)

90507-29008-00

1
Out of stock

3

1

$9.10

In stock

4

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

5

PIN, COTTER

91490-20025-00

1

$1.31

In stock

6

PEDAL, BRAKE

5L4-27211-00-00

1
Out of stock

7

PEDAL, BRAKE

3R8-27242-00-00

1
Out of stock

8

SPRING, TORSION

90508-14429-00

1
Out of stock

9

PIN, CLEVIS

91702-06028-00

1

$6.08

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

PIN, COTTER

91490-20025-00

1

$1.31

In stock

12

COVER, DUST

4V5-27286-00-00

1
Out of stock

13

CIRCLIP (137)

93430-10015-00

1
Out of stock

14

SPRING, TORSION

90508-32478-00

1
Out of stock

15

ROD, BRAKE

2X4-27231-01-00

1
Out of stock

16

PIN, CLEVIS (24X)

90240-06103-00

—

$6.45

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

PIN, COTTER

91490-20025-00

1

$1.31

In stock

19

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

20

SEAT, SPRING

1W2-27239-00-00

1
Out of stock

21

NUT (25K)

90179-06411-00

—

$5.10

In stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

NUT(650)

95380-06700-00

—

$6.17

In stock

24

FOOTREST 1

22W-27411-01-90

—
Out of stock

25

BRACKET, FOOTREST 1

4V5-27412-00-00

1
Out of stock

26

FOOTREST 1

22W-27411-01-90

—
Out of stock

27

BRACKET, FOOTREST 2

4V5-27422-00-00

1
Out of stock

28

BOLT (2W6)

90101-08428-00

—

$2.37

In stock

29

NUT, U

95617-08100-00

—

$6.78

In stock

30

—

$3.26

In stock

31

BOLT, WASHER BASED

90105-12096-00

1
Out of stock
