1981 Yamaha IT250 (IT250H) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

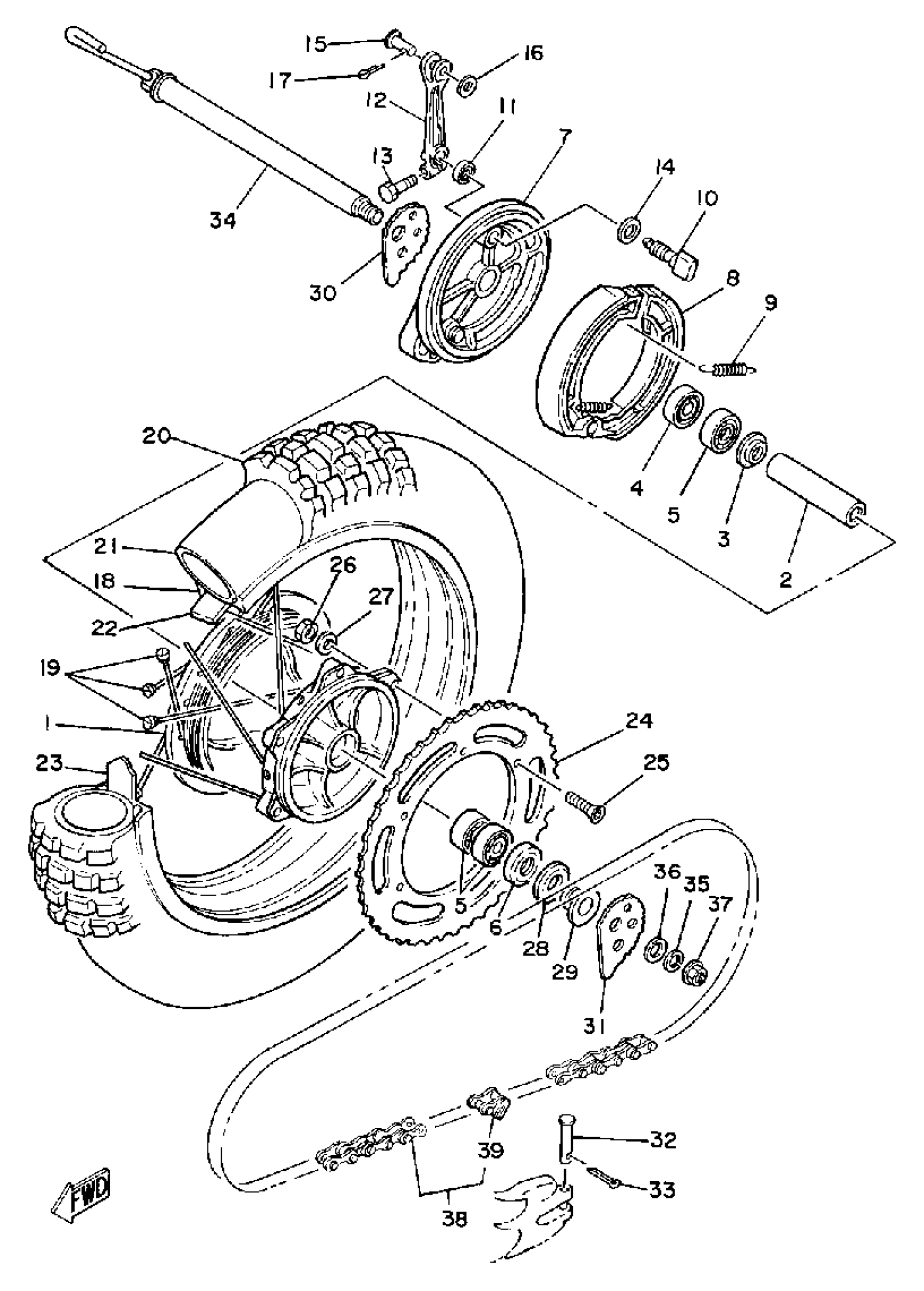

1981 Yamaha IT250 (IT250H) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

4V4-25311-00-98

1
Out of stock

2

SPACER

90560-20226-00

1
Out of stock

3

FLANGE, SPACER

4V4-25315-00-00

1
Out of stock

4

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

5

BEARING(3BN)

93306-00438-00

1

$32.22

In stock

6

OIL SEAL (28X47X7-102)

93102-28022-00

1

$12.63

In stock

7

PLATE, BRAKE SHOE

4V5-25321-01-98

1
Out of stock

8

BRAKE SHOE KIT

3GW-W253A-00-00

1
Out of stock

9

1

$8.09

In stock

10

CAMSHAFT

5L4-25351-00-00

1
Out of stock

11

SEAL, CAM SHAFT

148-25359-00-00

1
Out of stock

12

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

13

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

14

SHIM, CAM SHAFT

148-25353-00-00

1

$6.40

In stock

15

PIN, CLEVIS

1W2-27237-00-00

1
Out of stock

16

WASHER, PLATE (583)

90201-12631-00

—
Out of stock

17

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

18

RIM 2.50X18

94425-18358-00

1
Out of stock

19

SPOKE SET, REAR

4V4-25304-00-00

1
Out of stock

20

150/80-18 M2A (TT) (94151-18684) (4.50-18-4PR)

94115-186A2-00

1
Out of stock

21

TUBE

94245-18125-00

1
Out of stock

22

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

23

SPACER, BEAD

2X5-25394-00-00

1
Out of stock

24

SPROCKET, DRIVEN

26A-25446-51-00

1
Out of stock

24

SPROCKET, DRIVEN

26A-25448-51-00

1
Out of stock

24

SPROCKET, DRIVEN

26A-25450-51-00

1
Out of stock

24

SPROCKET, DRIVEN (52T)

26A-25452-51-00

—
Out of stock

25

BOLT, HEX SKT HEAD

90110-08038-00

1
Out of stock

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

27

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

28

COVER, HUB DUST

4V4-25367-00-00

—

$24.51

In stock

29

COLLAR

90387-201E6-00

1
Out of stock

30

PULLER, CHAIN 2

4V5-25389-00-00

1
Out of stock

31

PULLER, CHAIN 1

4V5-25388-01-00

1
Out of stock

32

PIN, CLEVIS

91701-05055-00

—
Out of stock

33

PIN, COTTER

91490-16020-00

1

$6.23

In stock

34

AXLE, WHEEL

4V5-25381-00-00

1
Out of stock

35

WASHER(N15)

92907-18100-00

—

$7.09

In stock

36

WASHER(3JP)

92903-20600-00

—

$6.68

In stock

37

NUT

90179-18332-00

1
Out of stock

38

520 DS 108L (520DS-108L)

94585-20108-00

1
Out of stock

39

JOINT, CHAIN

94681-68001-00

—
Out of stock
