1980 Yamaha IT250 (IT250G) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1980 Yamaha IT250 (IT250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

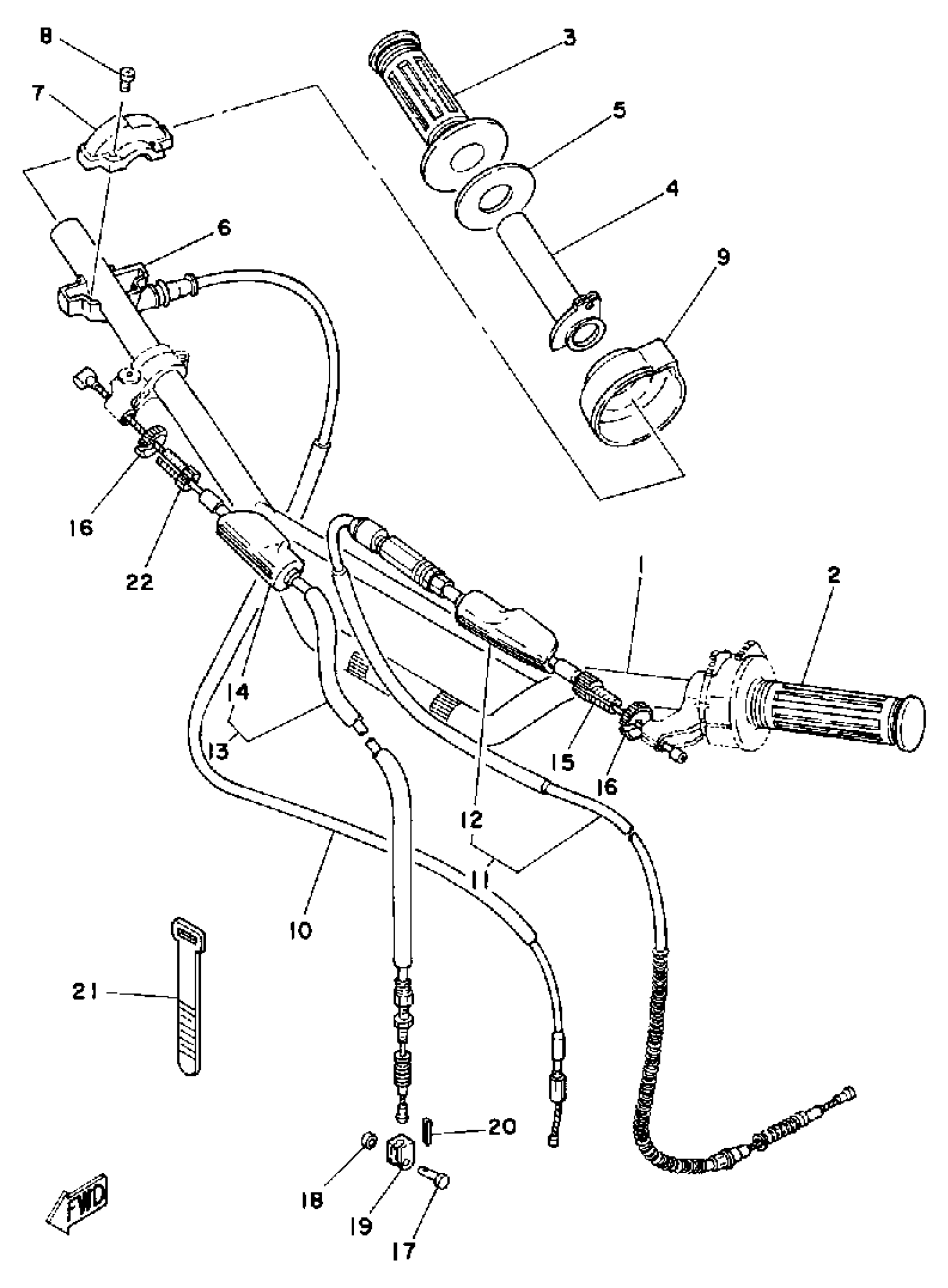

1980 Yamaha IT250 (IT250G) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

2A8-26111-00-00

1

$113.06

In stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

GRIP (R.H)

583-26242-00-00

1

$30.97

In stock

4

TUBE, THROTTLE GUIDE

22W-26243-00-00

1

$26.34

In stock

5

RING, LEAF

1W1-26249-00-00

1
Out of stock

6

CAP, GRIP UPPER

322-26281-00-98

1
Out of stock

7

CAP, GRIP UNDER

322-26282-00-00

1

$23.60

In stock

8

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

9

COVER, CAP GRIP

3R8-26287-00-00

1
Out of stock

10

CABLE, THROTTLE 1

1W6-26311-01-00

1
Out of stock

11

CABLE, CLUTCH (1150MM)

2K7-26335-00-00

1
Out of stock

12

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

13

CABLE, BRAKE

5Y0-26341-00-00

1
Out of stock

14

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

15

BOLT

90123-08002-00

1

$8.93

In stock

16

NUT

90179-08030-00

—

$3.78

In stock

17

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

18

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

19

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

22

BOLT

90123-08002-00

1

$8.93

In stock
