1979 Yamaha IT250 (IT250F) Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1979 Yamaha IT250 (IT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

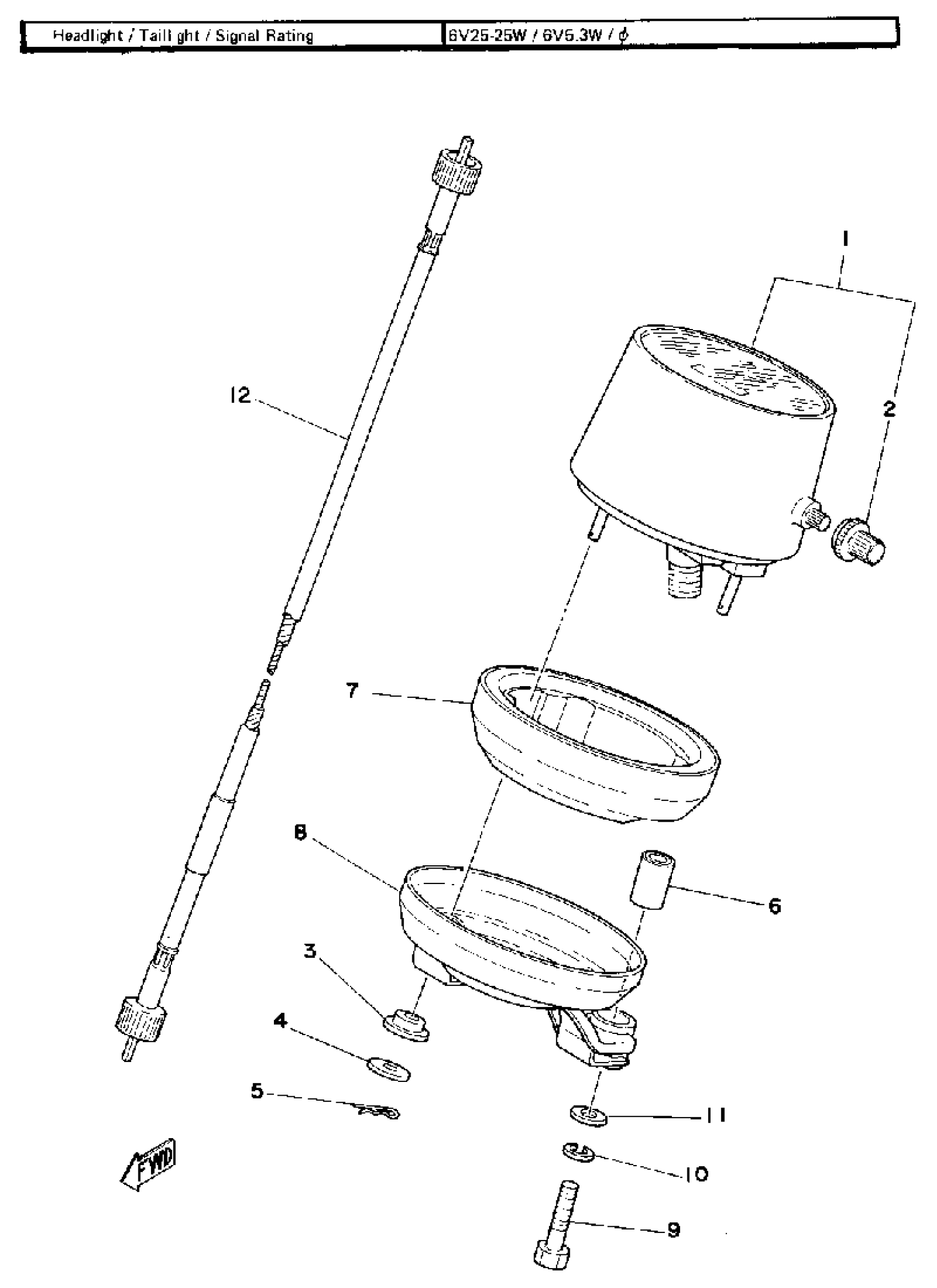

1979 Yamaha IT250 (IT250F) Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2N4-83570-A0-00

1
Out of stock

1

SPEEDOMETER ASSEMBLY

(2X7-83570-F0-00)

1
Out of stock

2

. KNOB, TRIP METER

1E6-83578-60-00

1
Out of stock

3

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

4

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

5

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

6

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

1
Out of stock

7

DAMPER

1W2-83513-00-00

1
Out of stock

8

BRACKET, METER

(1W2-83519-00-00)

1
Out of stock

9

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

SPEEDOMETER CABLE ASSY

3R8-83550-02-00

1
Out of stock
