1979 Yamaha IT250 (IT250F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha IT250 (IT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

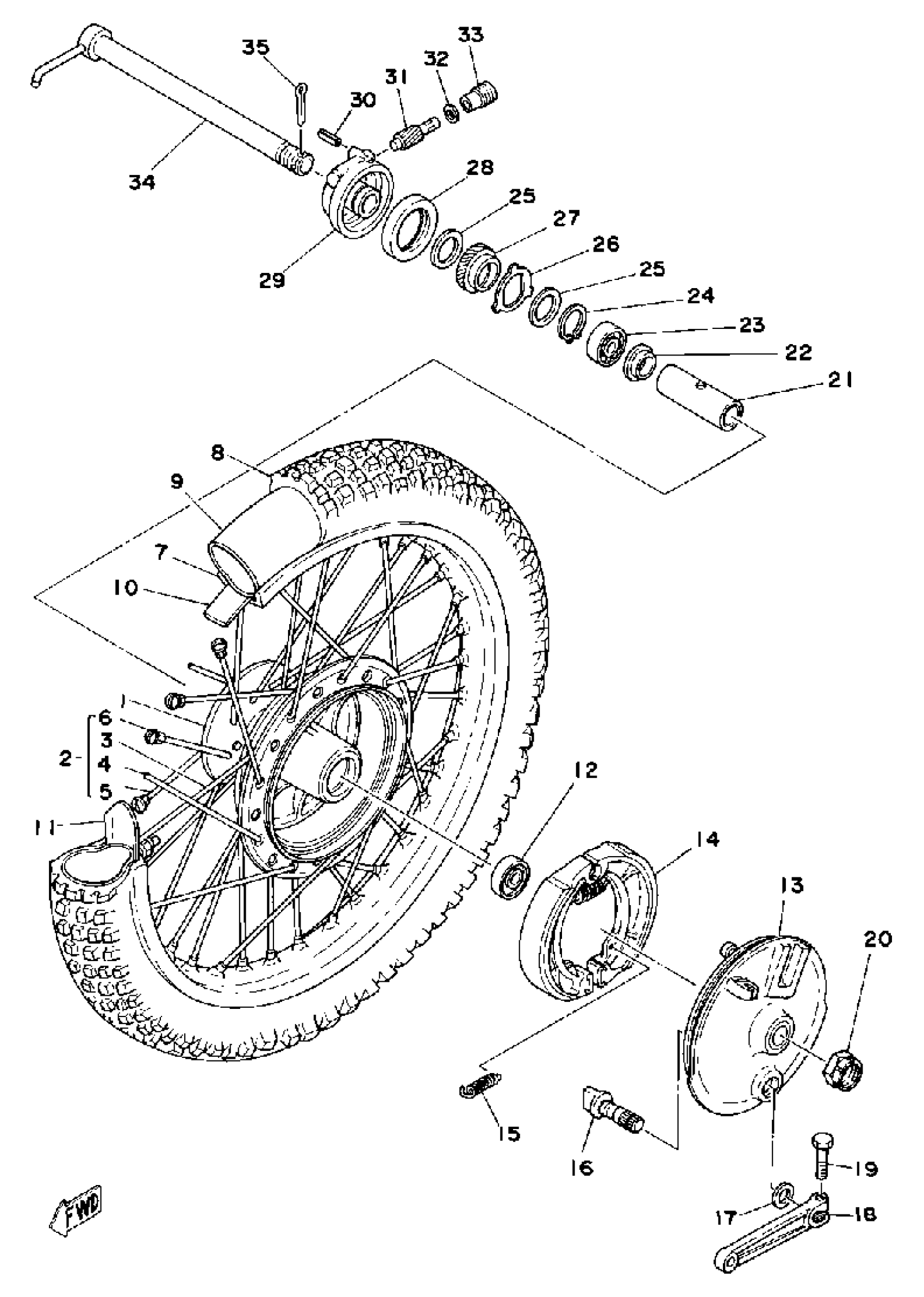

1979 Yamaha IT250 (IT250F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

2

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

3

SPOKE SET, INNER 1

(2W6-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(2W6-25197-90-00)

1
Out of stock

5

SPOKE SET, INNER 2

(2W6-25179-90-00)

1
Out of stock

6

SPOKE SET, OUTER 2

(2W6-25189-90-00)

1
Out of stock

7

RIM 1.60X21

94416-21326-00

1
Out of stock

8

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

9

TUBE

94230-21126-00

1
Out of stock

10

BAND, RIM

(94330-21088-00)

1
Out of stock

11

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

12

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

13

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

1
Out of stock

14

BRAKE SHOE KIT

322-W253A-10-00

1

$31.99

In stock

15

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

16

CAMSHAFT

23X-25151-00-00

1
Out of stock

17

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

18

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

19

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

20

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

21

SPACER

90560-15116-00

1
Out of stock

22

FLANGE, SPACER

146-25116-00-00

—
Out of stock

23

BEARING

93306-20205-00

—

$32.63

In stock

24

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

25

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

26

CLUTCH, METER

1K7-25149-00-00

1
Out of stock

27

GEAR, DRIVE

1W2-25135-00-00

1
Out of stock

28

OIL SEAL(3BC)

93106-40027-00

—

$13.22

In stock

29

GEAR UNIT ASSY

3XP-25190-00-00

—
Out of stock

30

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

31

GEAR, METER

1W2-25138-00-00

1
Out of stock

32

SHIM, ROD

102-18416-00-00

1
Out of stock

33

BUSH

306-25136-00-00

1
Out of stock

34

AXLE, WHEEL

1W2-25181-02-00

1
Out of stock

35

PIN, COTTER

91490-30030-00

—

$7.15

In stock
