1986 Yamaha IT200 (IT200S) Crankshaft-Piston Diagram

← All diagrams

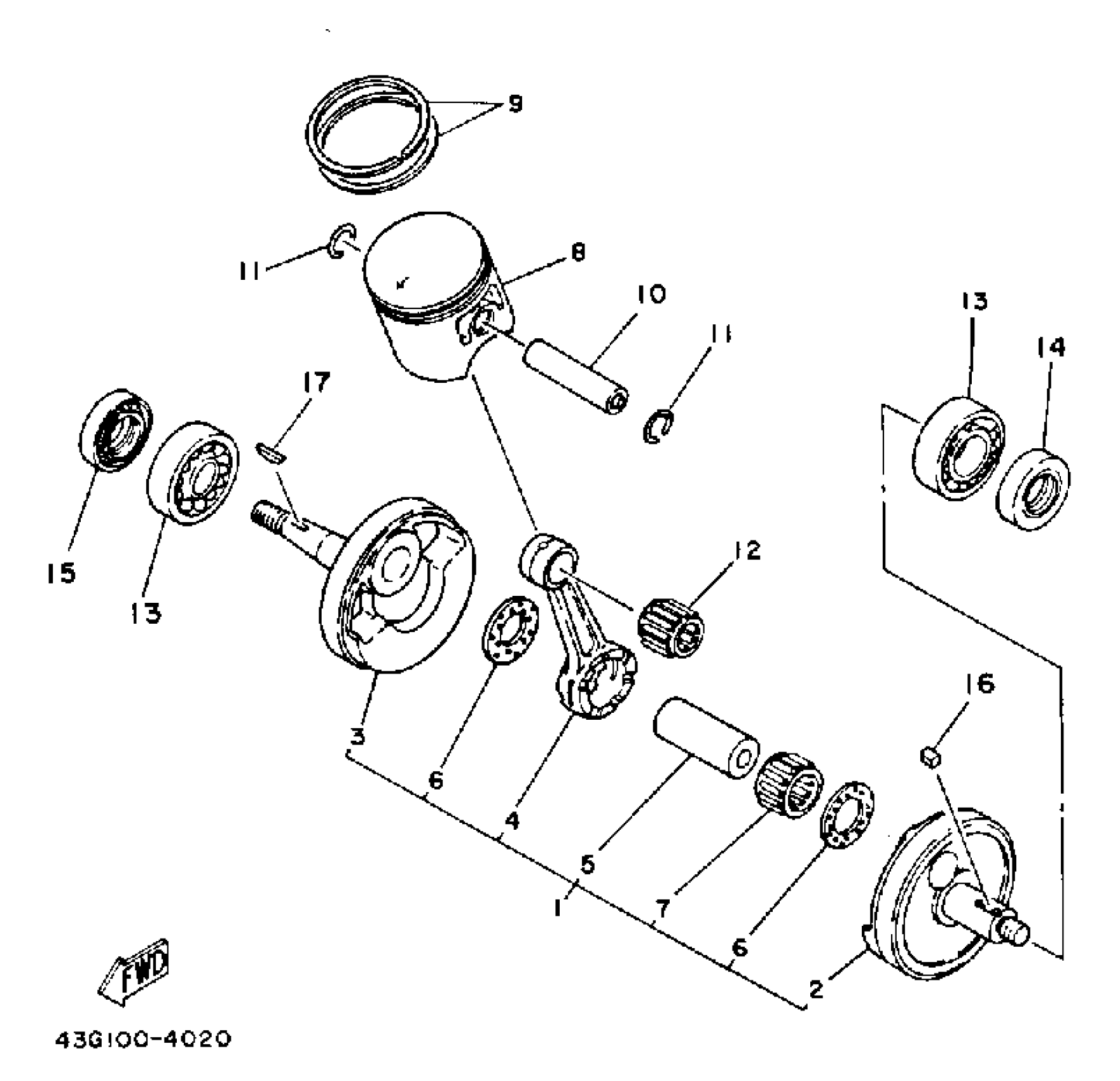

Find the part on the Crankshaft-Piston diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

43G-11400-00-00

1
Out of stock

2

. CRANK 1

43G-11412-00-00

1
Out of stock

3

. CRANK 2

43G-11422-00-00

1
Out of stock

4

ROD, CONNECTING

43G-11651-00-00

1
Out of stock

5

PIN, CRANK 1

37F-11681-00-00

1
Out of stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

BEARING

93310-52238-00

1

$64.94

In stock

8

PISTON STD

43G-11631-00-95

1
Out of stock

8

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

43G-11635-00-00

1
Out of stock

8

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

43G-11636-00-00

1
Out of stock

8

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

43G-11637-00-00

1
Out of stock

8

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

43G-11638-00-00

1
Out of stock

9

PISTON RING SET (STD)

3JM-11601-00-00

1
Out of stock

9

PISTON RING SET (0.25MM O/S)

3JM-11601-10-00

—
Out of stock

9

PISTON RING SET (0.50MM O/S)

3JM-11601-20-00

—
Out of stock

9

PISTON RINGSET 3RD

43G-11601-30-00

1
Out of stock

9

PISTON RINGSET 4TH

43G-11601-40-00

1
Out of stock

10

PIN, PISTON

251-11633-00-00

—

$23.85

In stock

11

UNAVAILABLE IN PRICE BOOK

3MA-50171-29-00

1
Out of stock

12

BEARING, CYLINDRICAL(8AX)

93310-316D6-00

—
Out of stock

13

BEARING(43G)

93306-20562-00

—
Out of stock

14

OIL SEAL(3KX)

93103-32171-00

—

$27.34

In stock

15

OIL SEAL(43G)

93102-25331-00

—
Out of stock

16

KEY, STRAIGHT (3L5)

90282-05034-00

—

$8.31

In stock

17

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
