1984 Yamaha IT200 (IT200L) Shift CAM-Fork Diagram

← All diagrams

Find the part on the Shift CAM-Fork diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

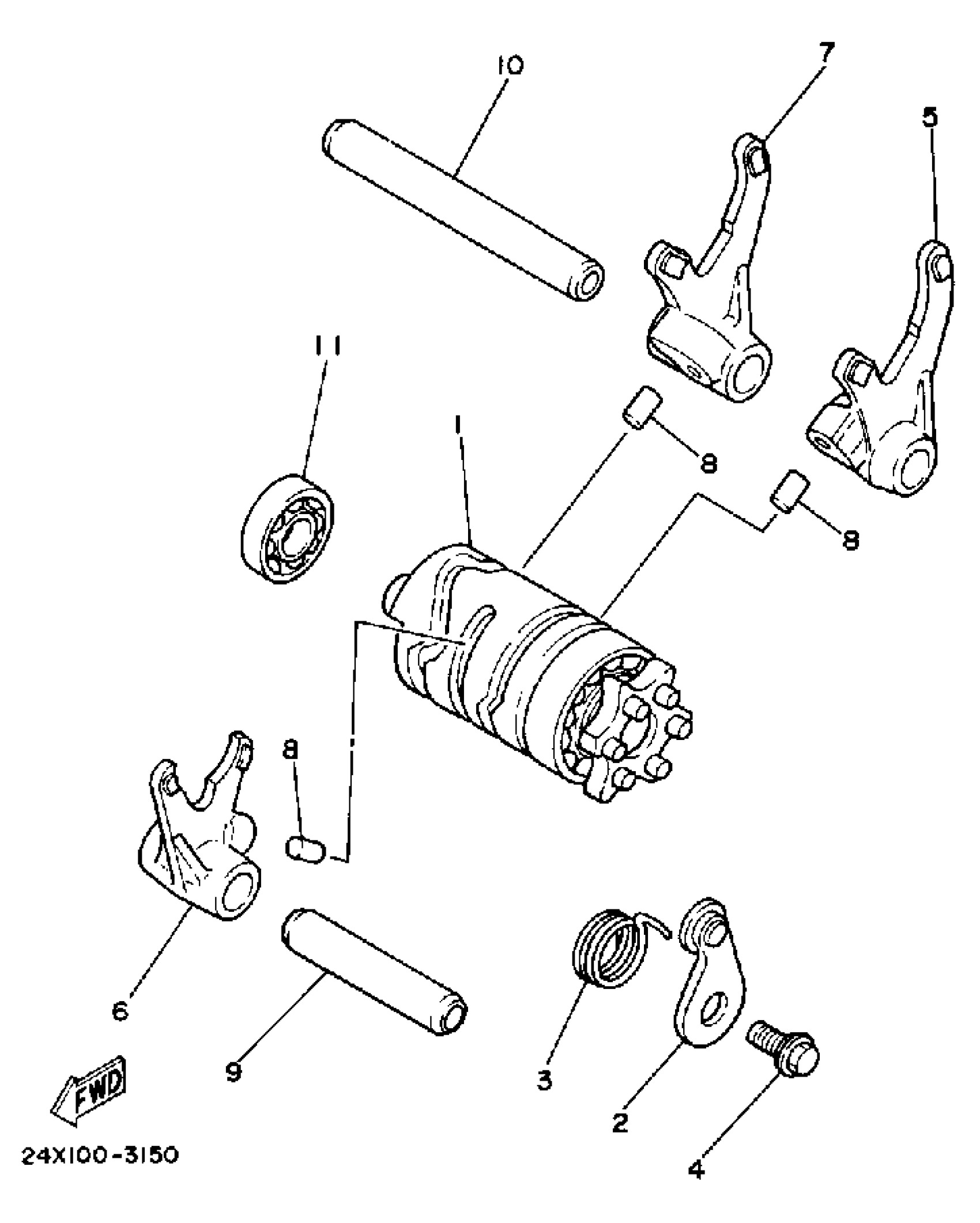

1984 Yamaha IT200 (IT200L) Shift CAM-Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

24X-18540-00-00

1
Out of stock

2

STOPPER LEVER ASSEMBLY

3R3-18140-00-00

1
Out of stock

3

SPRING, TORSION

90508-26435-00

1
Out of stock

4

BOLT

90109-06190-00

1

$3.49

In stock

5

FORK, SHIFT 1

43G-18511-00-00

1
Out of stock

6

FORK, SHIFT 2

43G-18512-00-00

1
Out of stock

7

FORK, SHIFT 3

43G-18513-00-00

1
Out of stock

8

PIN STRAIGHT 257185520000

90250-06013-00

1
Out of stock

9

BAR, SHIFT FORK GUIDE 1

4BA-18531-00-00

—
Out of stock

10

BAR, SHIFT FORK GUIDE 2

5X5-18535-01-00

1
Out of stock

11

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock
← Clutch Shift Shaft →

More Drive & Transmission diagrams
