1984 Yamaha IT200 (IT200L) Intake Diagram

← All diagrams

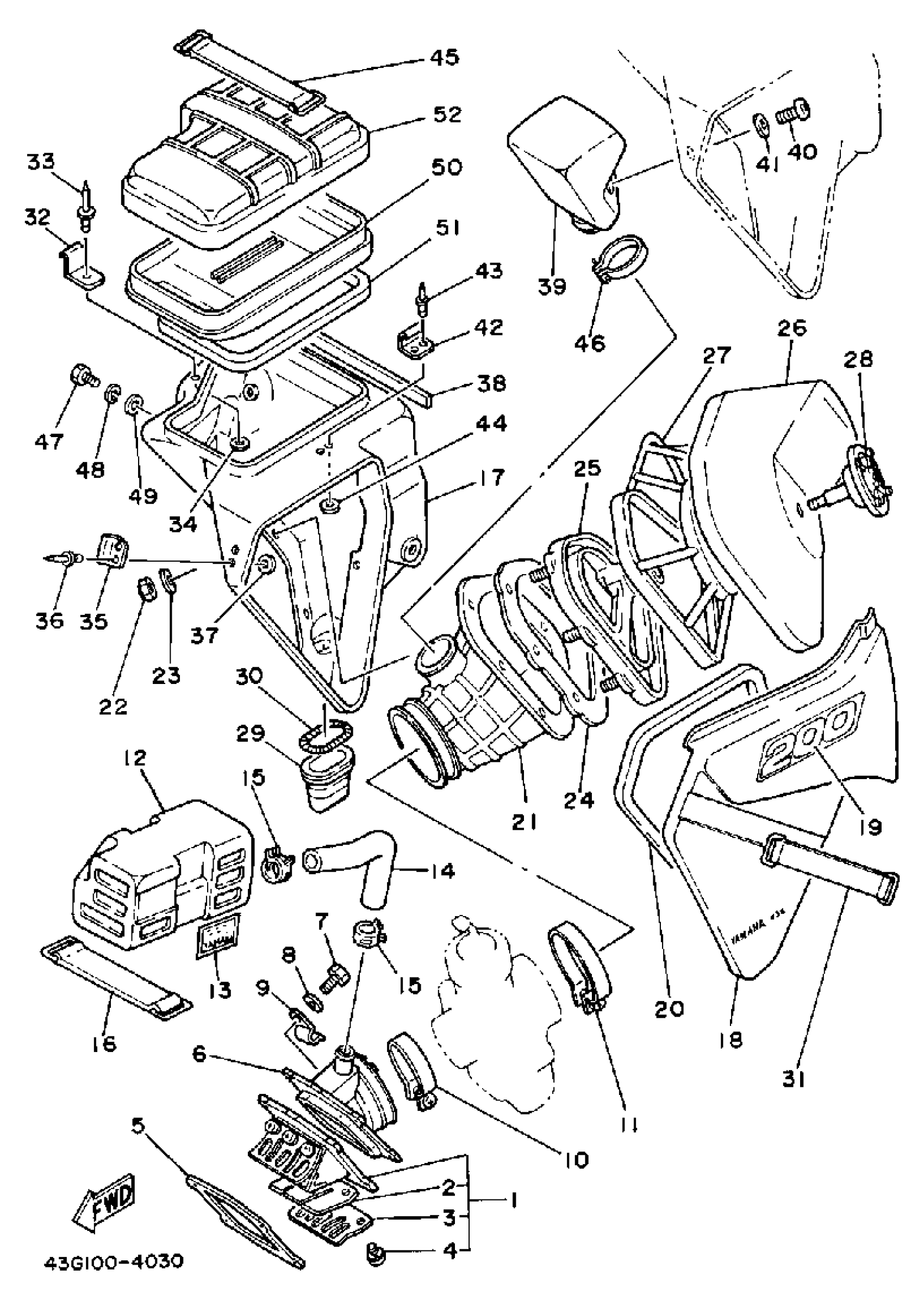

Find the part on the Intake diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha IT200 (IT200L) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

1LX-13610-01-00

1
Out of stock

1

REED VALVE ASSEMBLY

43G-13610-00-00

1
Out of stock

2

. REED, VALVE

3R3-13613-00-00

1
Out of stock

2

REED, VALVE

55Y-13613-00-00

—
Out of stock

3

. STOPPER, REED VALVE

55Y-13616-00-00

1
Out of stock

3

. STOPPER, REED VALVE

55Y-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET8VALVE SEAT

39W-13621-01-00

1
Out of stock

6

JOINT, CARBURETOR

43G-13565-00-00

1
Out of stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

9

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

10

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

11

HOSE CLAMP ASSY

90450-64004-00

1

$12.00

In stock

12

CHAMBER, AIR

5X8-13581-00-00

1
Out of stock

13

EMBLEM

4V3-1441K-00-00

1
Out of stock

14

HOSE

90445-210A6-00

1
Out of stock

15

CLIP (4V3)

90467-20050-00

—

$3.25

In stock

16

BAND, BATTERY

1E6-82131-00-00

—

$21.34

In stock

17

CASE, AIR CLEANER 1

43G-14411-00-00

1
Out of stock

18

CAP, CLEANER CASE 1

43G-14412-00-00

1
Out of stock

19

EMBLEM 1

43G-21781-00-00

1
Out of stock

20

SEAL

43G-14452-00-00

1
Out of stock

21

JOINT, AIR CLNR 1

43G-14453-00-00

1
Out of stock

22

NUT, U

95617-05100-00

—

$6.68

In stock

23

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

24

SEAL

43G-14462-00-00

1
Out of stock

25

HOLDER, GUIDE

43G-14459-00-00

1
Out of stock

26

ELEMENT, AIR CLEANER

43G-14451-01-00

—
Out of stock

27

GUIDE, ELEMENT

43G-14458-00-00

1
Out of stock

28

PLATE, ELEMENT FTTTING (4V2-14468-01)

4V2-14468-02-00

1
Out of stock

29

SEAL

39K-14457-00-00

1
Out of stock

30

SPRING, COMPRESSION

90504-03033-00

1
Out of stock

31

BAND

43G-14455-00-00

1
Out of stock

32

PLATE, CLEANER CASE FITTING

34K-14484-00-00

1
Out of stock

33

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

34

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

35

HOOK

26A-14436-00-00

1
Out of stock

36

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

37

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

38

SEAL

43G-14457-00-00

1
Out of stock

39

CHAMBER, AIR 2

(43G-13591-00-00)

1
Out of stock

40

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

41

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

42

HOOK

(43G-14436-00-00)

1
Out of stock

43

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

44

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

45

BAND, BATTERY

133-82131-00-00

—

$21.78

In stock

46

CLAMP, HOSE

90460-36174-00

1
Out of stock

47

BOLT (661)

97013-06012-00

—

$4.71

In stock

48

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

49

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

50

DUCT

43G-14437-00-00

1
Out of stock

51

SEAL

43G-14467-00-00

1
Out of stock

52

CAP, CLEANER CASE 2

43G-14422-00-00

1
Out of stock
