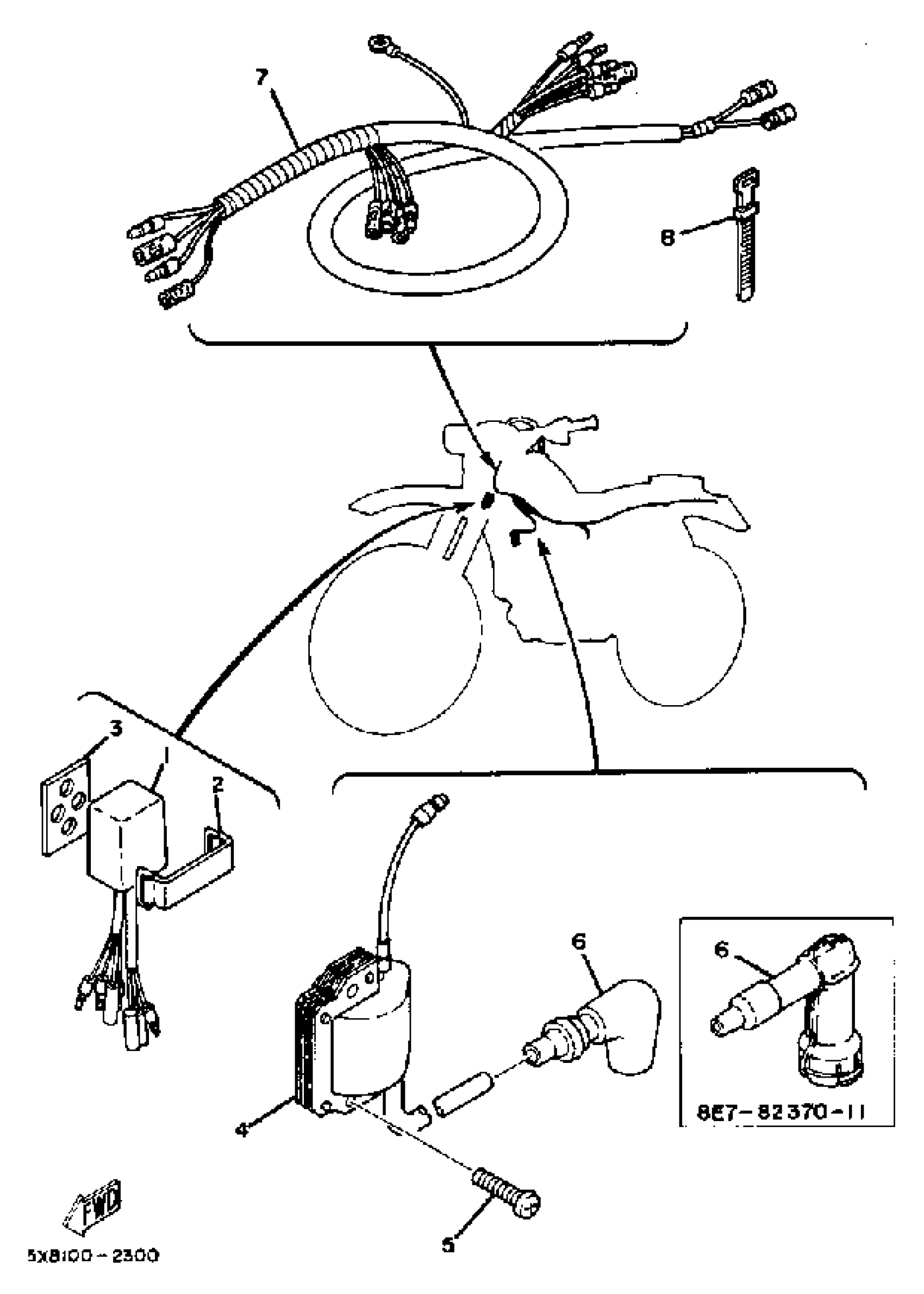

Yamaha IT175K (IT175) 1983 ELECTRICAL - 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

2W6-85540-20-00

Unavailable

2

BAND, TOOL

21V-21376-00-00

$5.96

3

DAMPER

3RB-85547-01-00

Unavailable

4

IGNITION COIL ASSY

355-82310-40-00

Unavailable

5

SCREW PAN HEAD

98580-06020-00

$4.89

6

PLUG CAP ASSY

8DG-82370-00-00

$41.54

6

PLUG CAP ASSY

7KA-82370-00-00

$61.30

7

WIRE HARNESS ASSEMBLY

(5X8-82590-00-00)

Unavailable

8

BAND, SWITCH CORD

437-83936-01-00

$4.56
