1982 Yamaha IT175 (IT175J) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

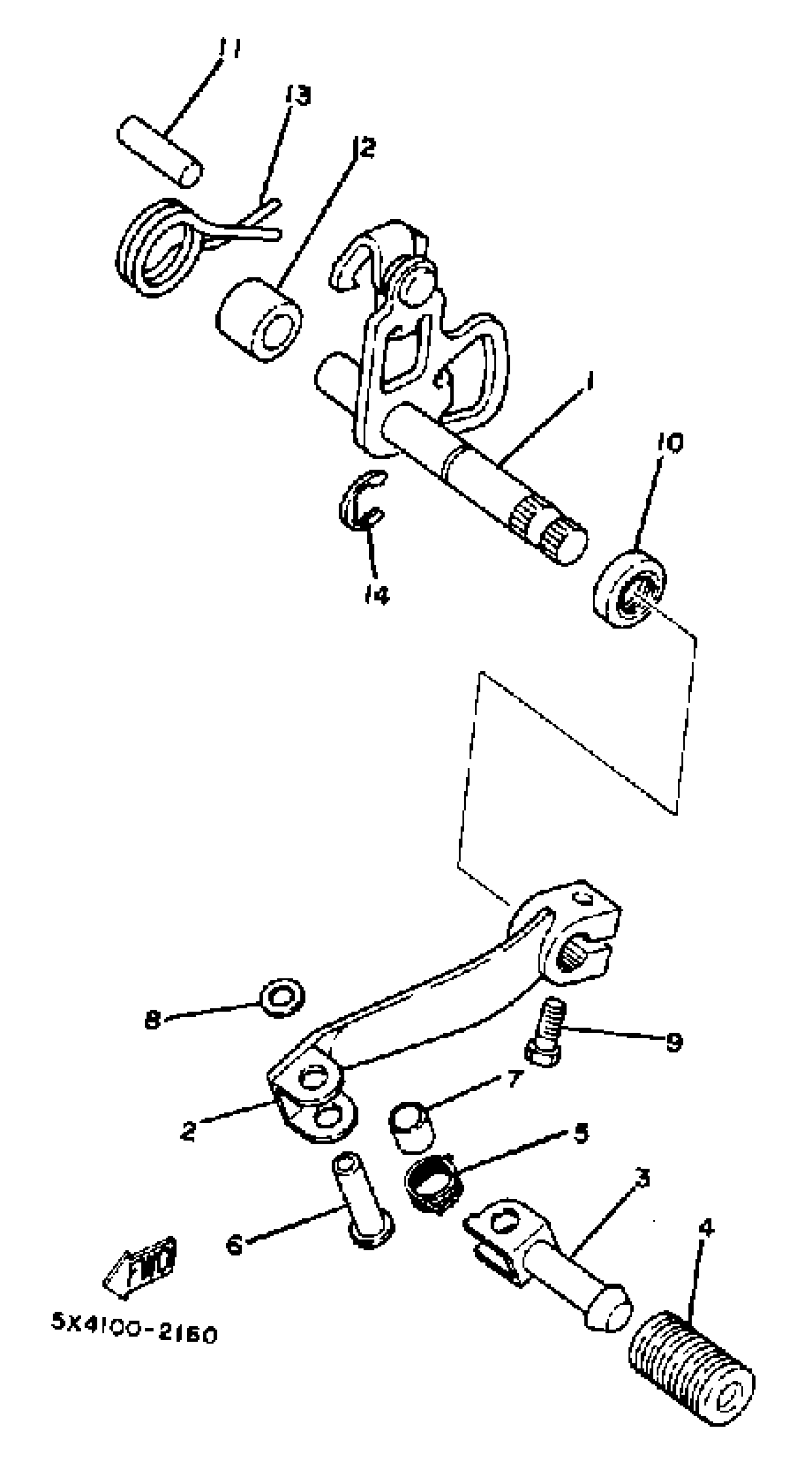

1982 Yamaha IT175 (IT175J) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY. 1

24X-18101-01-00

1
Out of stock

2

SHIFT PEDAL ASSEMBLY (509-18111-01)

5X4-18110-01-00

1
Out of stock

3

PEDAL, SHIFT

(5X4-18162-00-00)

1
Out of stock

4

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

5

SPRING, TORSION

90508-16558-00

1
Out of stock

6

RIVET(25Y)

90269-08041-00

1
Out of stock

7

HOSE

90446-11180-00

1
Out of stock

8

1

$6.58

In stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

OIL SEAL

93101-12173-00

1
Out of stock

11

PIN, DOWEL

93608-25150-00

1
Out of stock

12

SPACER

90560-11189-00

1
Out of stock

13

SPRING, TORSION

90508-29361-00

1
Out of stock

14

CIRCLIP

99006-10600-00

1

$6.91

In stock
