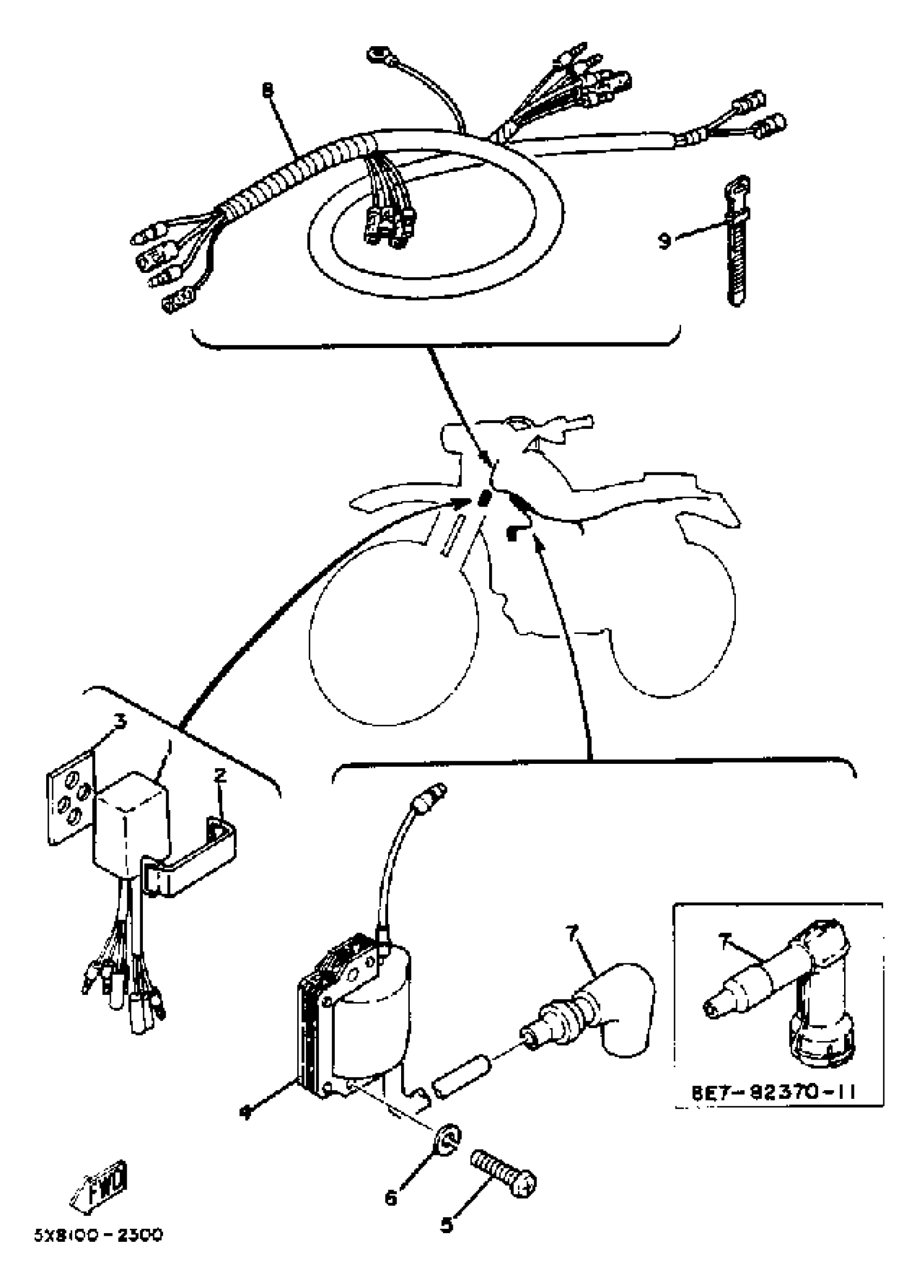

Find the part on the Electrical 1 diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha IT175 (IT175J) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

2W6-85540-20-00

1
Out of stock

2

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock

3

DAMPER

3RB-85547-01-00

1
Out of stock

4

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

5

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

7

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

8

WIRE HARNESS ASSEMBLY

(5X8-82590-00-00)

1
Out of stock

9

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
