1981 Yamaha IT175 (IT175H) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1981 Yamaha IT175 (IT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

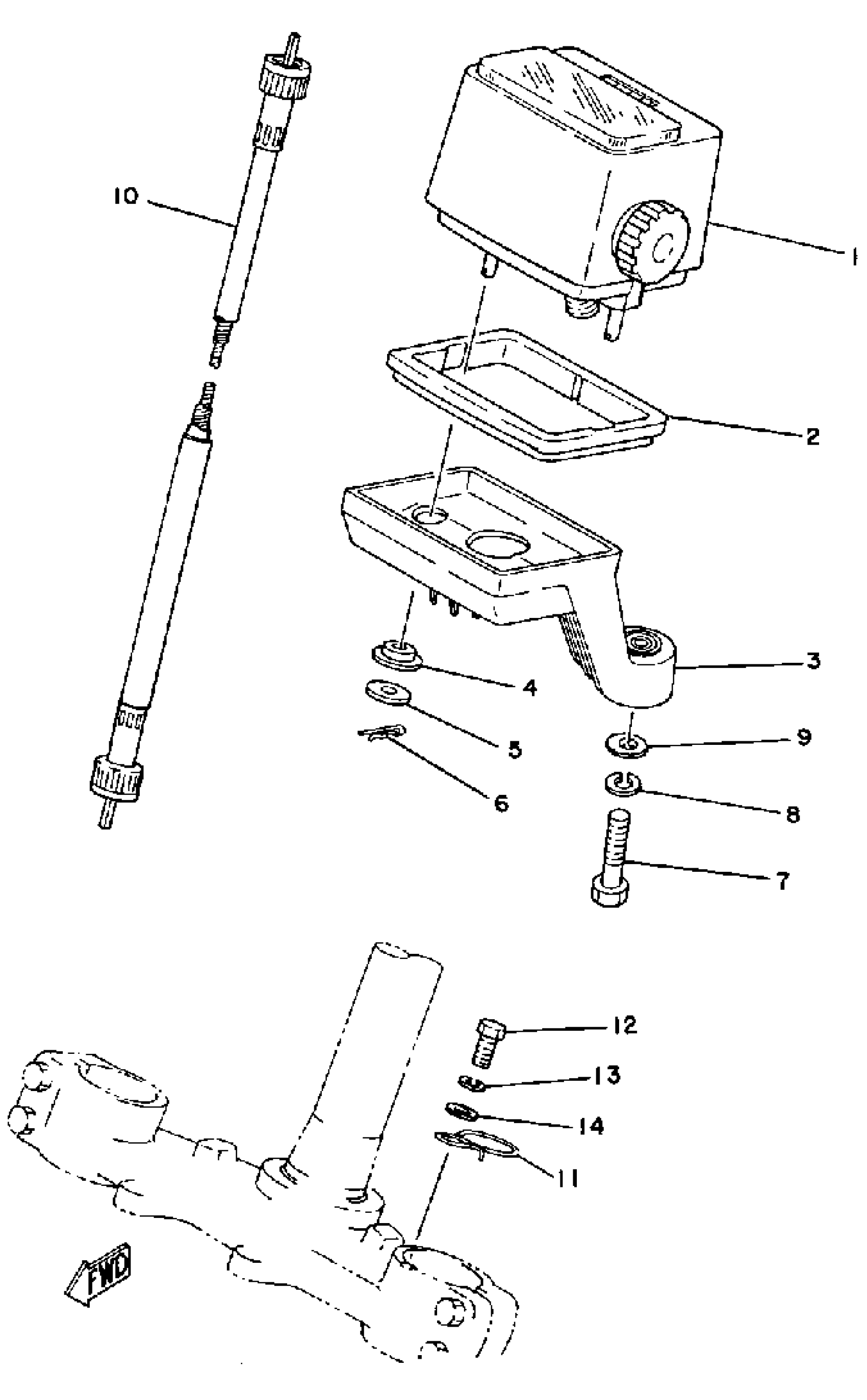

1981 Yamaha IT175 (IT175H) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. SPEEDOMETER ASSEMBLY

3R8-83570-60-00

1
Out of stock

2

. DAMPER

3R8-83513-00-00

1
Out of stock

3

. BRACKET, METER

3R8-83519-00-00

1
Out of stock

4

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

5

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

6

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

7

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

SPEEDOMETER CABLE ASSY

16M-83550-01-00

1
Out of stock

11

CLAMP

(2A6-83595-00-00)

1
Out of stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
