1980 Yamaha IT175 (IT175G) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1980 Yamaha IT175 (IT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

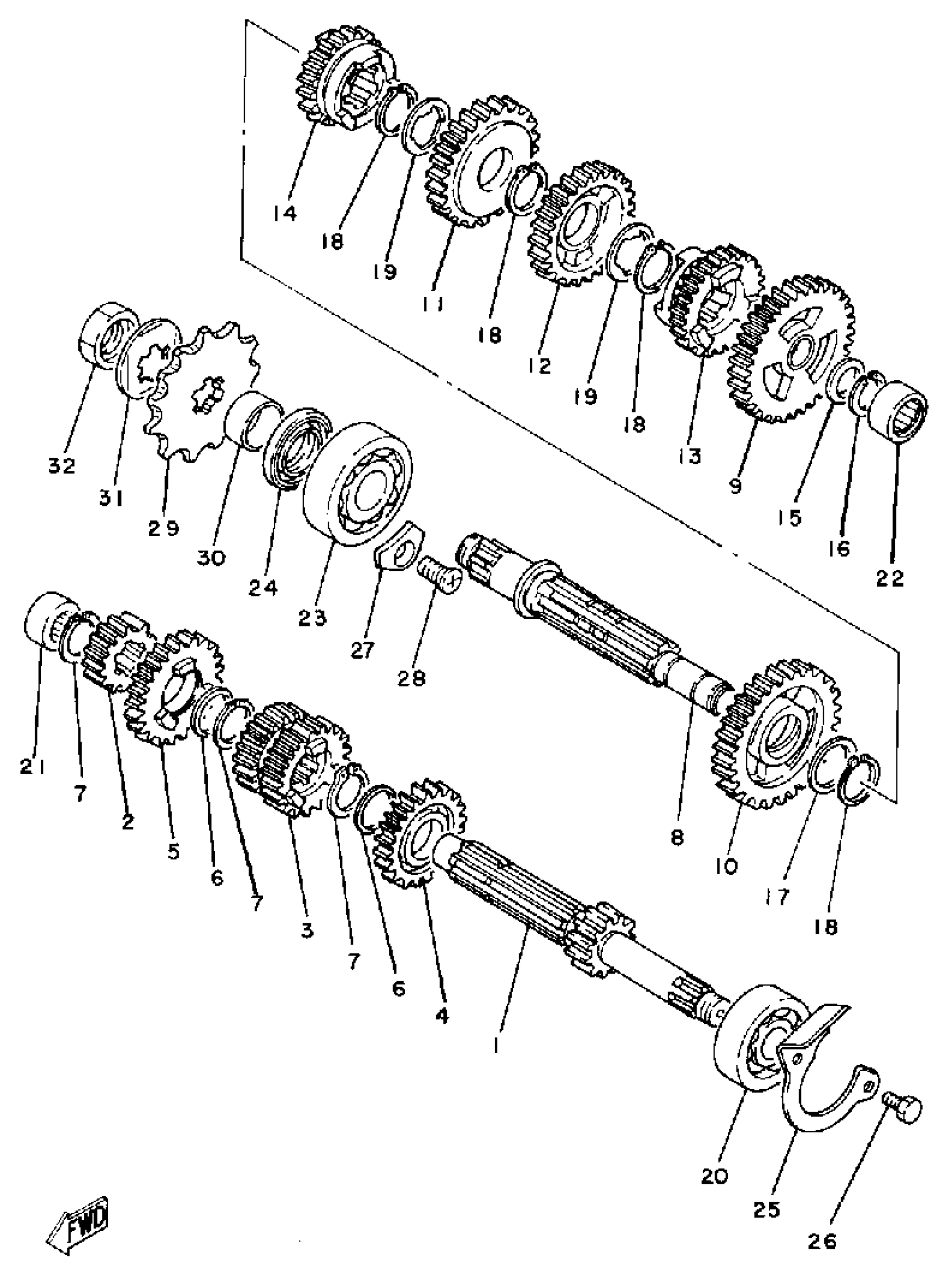

1980 Yamaha IT175 (IT175G) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

3R6-17411-00-00

1
Out of stock

2

GEAR, 2ND PINION

3R6-17121-00-00

1
Out of stock

3

GEAR, 3RD PINION

3R6-17131-00-00

1
Out of stock

4

GEAR, 5TH PINION

3R6-17151-00-00

1
Out of stock

5

GEAR, 6TH PINION

3R6-17161-00-00

1
Out of stock

6

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

7

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

8

AXLE, DRIVE

3R3-17421-00-00

1
Out of stock

9

GEAR, 1ST WHEEL

3R6-17211-00-00

1
Out of stock

10

GEAR, 2ND WHEEL

3R6-17221-00-00

1
Out of stock

11

GEAR, 3RD WHEEL (24T)

3R3-17231-01-00

1
Out of stock

12

GEAR, 4TH WHEEL

3R6-17241-00-00

1
Out of stock

13

GEAR, 5TH WHEEL

3R6-17251-00-00

1
Out of stock

14

GEAR, 6TH WHEEL

3R6-17261-00-00

1
Out of stock

15

WASHER (566)

90201-15701-00

1

$6.17

In stock

16

CIRCLIP

93440-15012-00

—
Out of stock

17

WASHER, PLATE (537)

90201-22555-00

—
Out of stock

18

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

19

WASHER (537)

90209-18135-00

—
Out of stock

20

BEARING(4HM)

93306-30317-00

—

$33.54

In stock

21

—

$38.21

In stock

22

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

23

BRG,R-B 6304 52MM 150G NT

93306-30411-00

—

$51.96

In stock

24

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

25

PLATE, COVER

3R3-17471-00-00

1
Out of stock

26

BOLT (661)

97013-06012-00

—

$4.71

In stock

27

PLATE, BEARING COVER

4XM-15383-00-00

—

$11.03

In stock

28

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

29

SPROCKET, DRIVE 11T

93832-11007-00

1
Out of stock

29

SPROCKET, DRIVE 12T

93832-12014-00

1
Out of stock

29

SPROCKET, DRIVE 13T

93832-13027-00

1
Out of stock

30

COLLAR (3V3)

90387-202A0-00

—

$18.57

In stock

31

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

32

NUT (1L8)

90179-16226-00

—

$7.46

In stock
