1980 Yamaha IT175 (IT175G) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1980 Yamaha IT175 (IT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

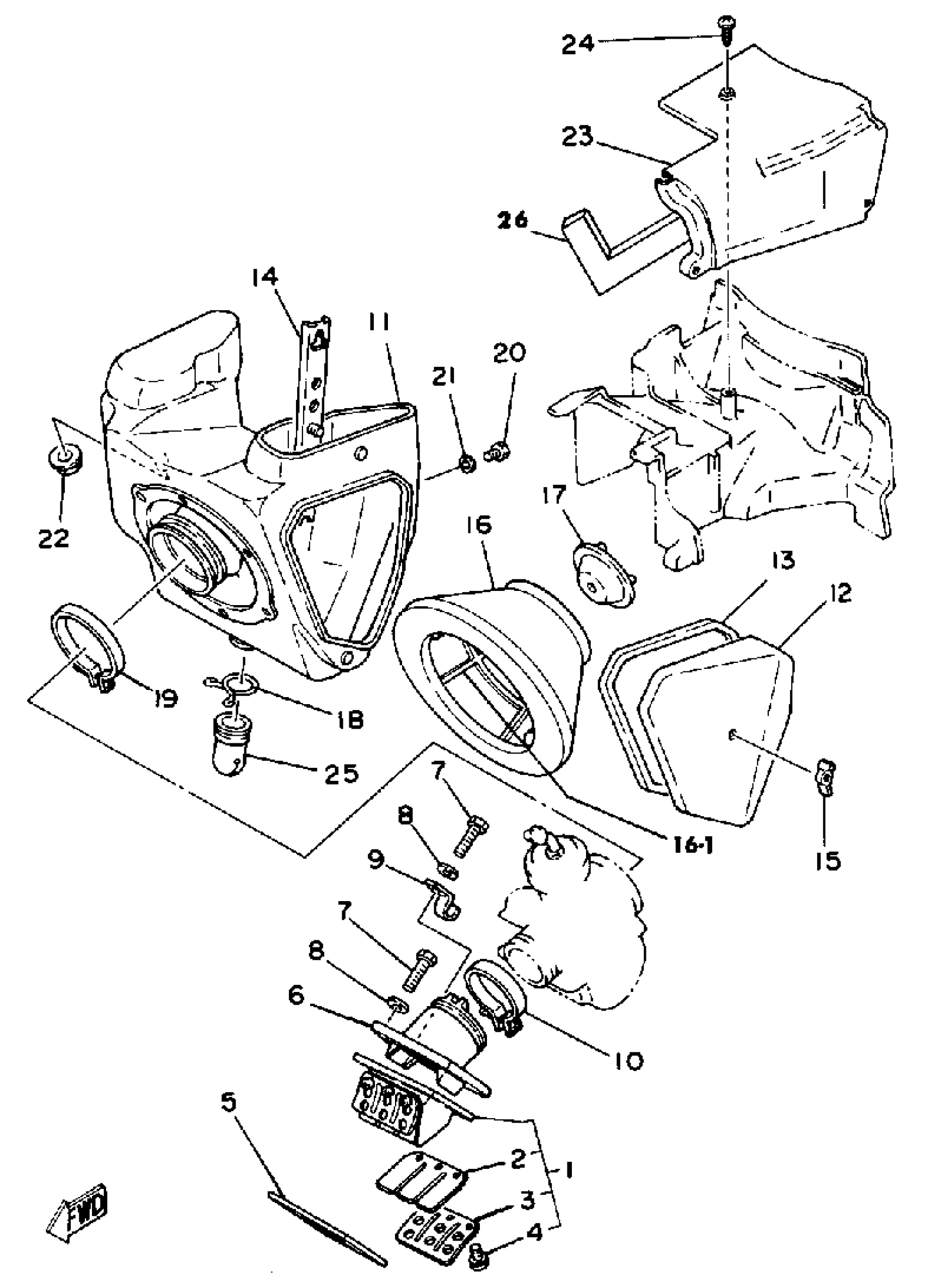

1980 Yamaha IT175 (IT175G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

43G-13610-00-00

1
Out of stock

2

. REED, VALVE

3R3-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

55Y-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

3R3-13621-01-00

1

$17.91

In stock

6

JOINT, CARBURETOR

3R3-13565-00-00

1
Out of stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

10

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

11

AIR CLNR CASE ASSEMBLY

(3R6-14401-01-00)

1
Out of stock

12

CAP, CLEANER CASE 1

3R3-14412-01-00

1
Out of stock

13

SEAL

50M-14462-01-00

1

$8.99

In stock

14

STAY 2

3R3-14494-00-00

1
Out of stock

15

NUT, WING (646)

90175-06008-00

1

$1.88

In stock

16

ELEMENT, AIR CLNR

3R3-W1442-01-00

1
Out of stock

17

PLATE, ELEMENT FTNG

(3R3-14468-00-00)

1
Out of stock

18

CLIP

90467-20M15-00

1

$6.23

In stock

19

HOSE CLAMP ASSY

90450-64004-00

—

$12.00

In stock

20

BOLT (661)

97013-06012-00

—

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

GROMMET

90480-13014-00

—

$6.85

In stock

23

DUCT

(3R6-14437-00-00)

1
Out of stock

24

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

25

SEAL

1W4-14457-00-00

1
Out of stock

26

SEAL

(3R6-14457-00-00)

1
Out of stock
