1980 Yamaha IT175 (IT175G) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1980 Yamaha IT175 (IT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

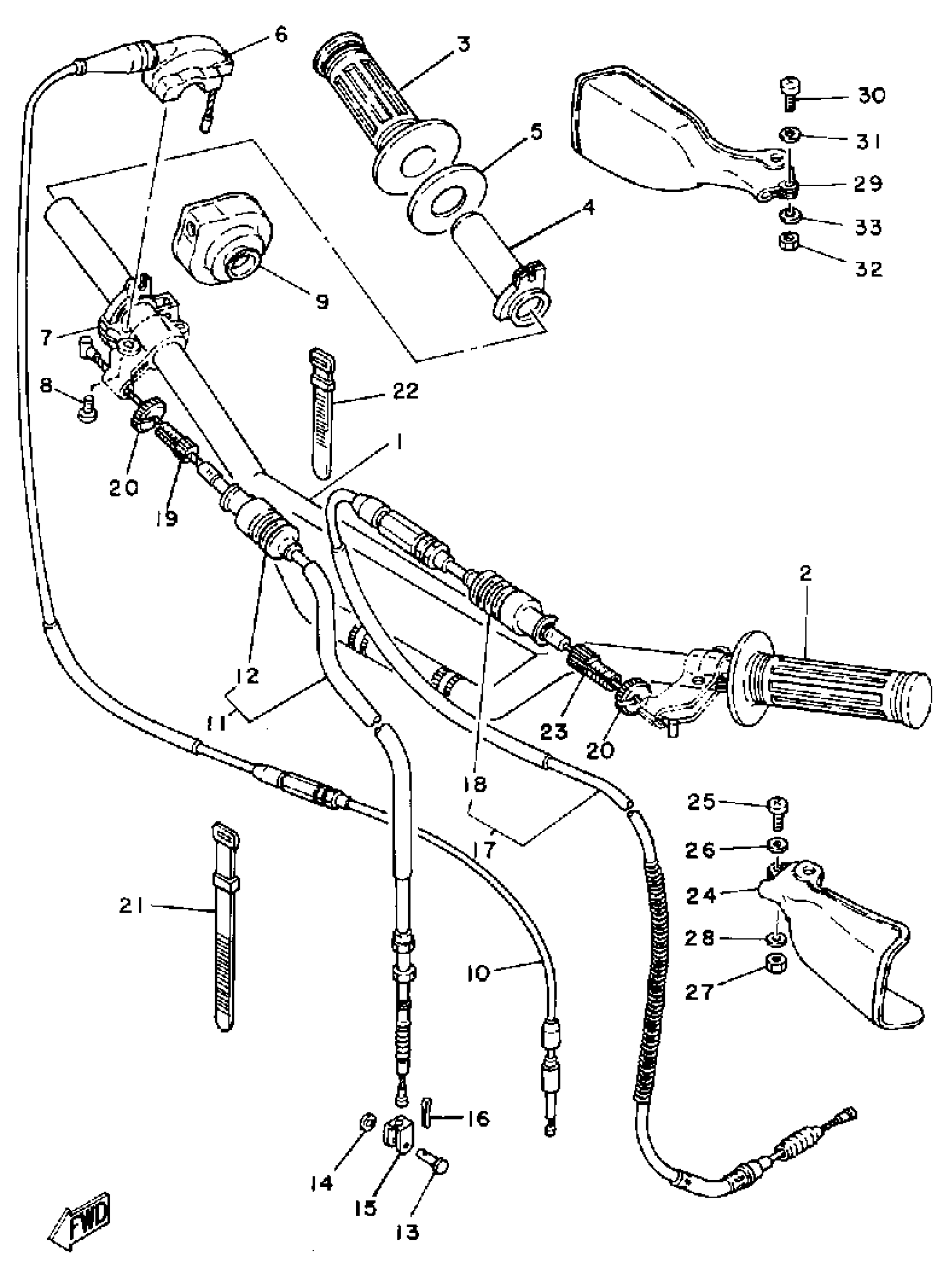

1980 Yamaha IT175 (IT175G) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

2A8-26111-00-00

1

$113.06

In stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

GRIP (R.H)

583-26242-00-00

1

$30.97

In stock

4

TUBE, THROTTLE GUIDE

22W-26243-00-00

1

$26.34

In stock

5

RING, LEAF

1W1-26249-00-00

1
Out of stock

6

CAP, GRIP UPPER

322-26281-00-98

1
Out of stock

7

CAP, GRIP UNDER

322-26282-00-00

1

$23.60

In stock

8

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

9

COVER, CAP GRIP

3R8-26287-00-00

1
Out of stock

10

CABLE, THROTTLE 1

3R6-26311-00-00

1
Out of stock

11

CABLE, BRAKE

3R6-26341-01-00

1
Out of stock

12

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

13

PIN W/HOLE 307181180000

90240-08013-00

1

$5.10

In stock

14

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

15

JOINT, WIRE

156-26347-00-00

1

$7.51

In stock

16

PIN, COTTER

91490-20025-00

—

$1.31

In stock

17

CABLE, CLUTCH

3R3-26335-02-00

1
Out of stock

18

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

19

BOLT

90123-08002-00

—

$8.93

In stock

20

NUT

90179-08030-00

—

$3.78

In stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

22

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

23

BOLT

90123-08002-00

—

$8.93

In stock

24

GUARD, BRUSH 1

3Y0-26141-00-00

1
Out of stock

25

SCREW, PAN

98507-06014-00

—

$6.18

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

NUT(650)

95380-06700-00

—

$6.17

In stock

28

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

29

GUARD, BRUSH 2

3Y0-26142-00-00

1
Out of stock

30

SCREW, PAN

98507-06014-00

—

$6.18

In stock

31

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

32

NUT(650)

95380-06700-00

—

$6.17

In stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
