1980 Yamaha IT175 (IT175G) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1980 Yamaha IT175 (IT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

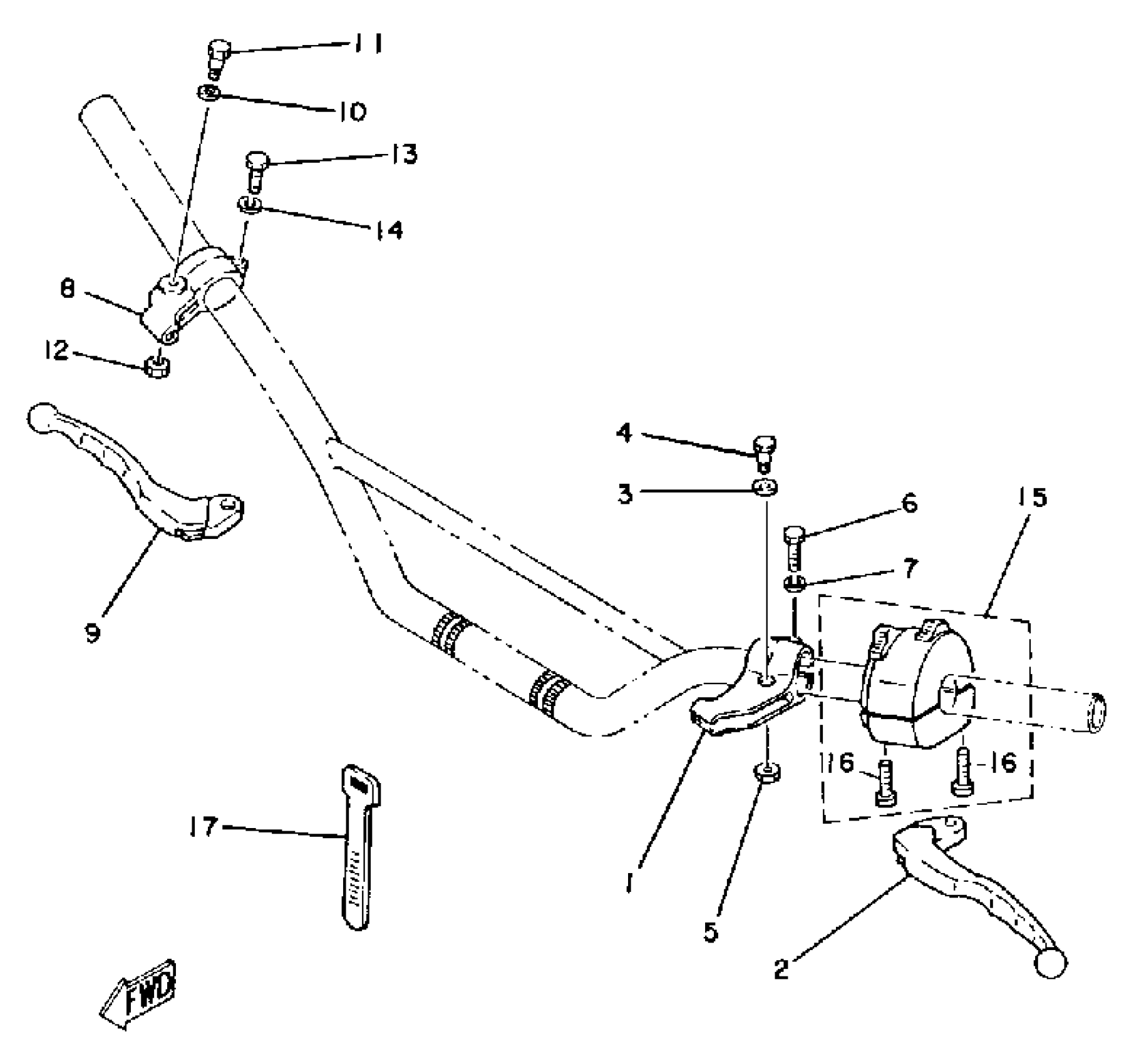

1980 Yamaha IT175 (IT175G) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

2

LEVER 1

23X-83912-02-00

1

$21.46

In stock

3

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

4

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

HOLDER, LEVER 2

516-82921-30-00

1
Out of stock

9

LEVER R

23X-83922-01-00

1

$21.74

In stock

10

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

11

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

12

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

13

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SWITCH, HANDLE 3

3R8-83973-00-00

1
Out of stock

16

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

17

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
