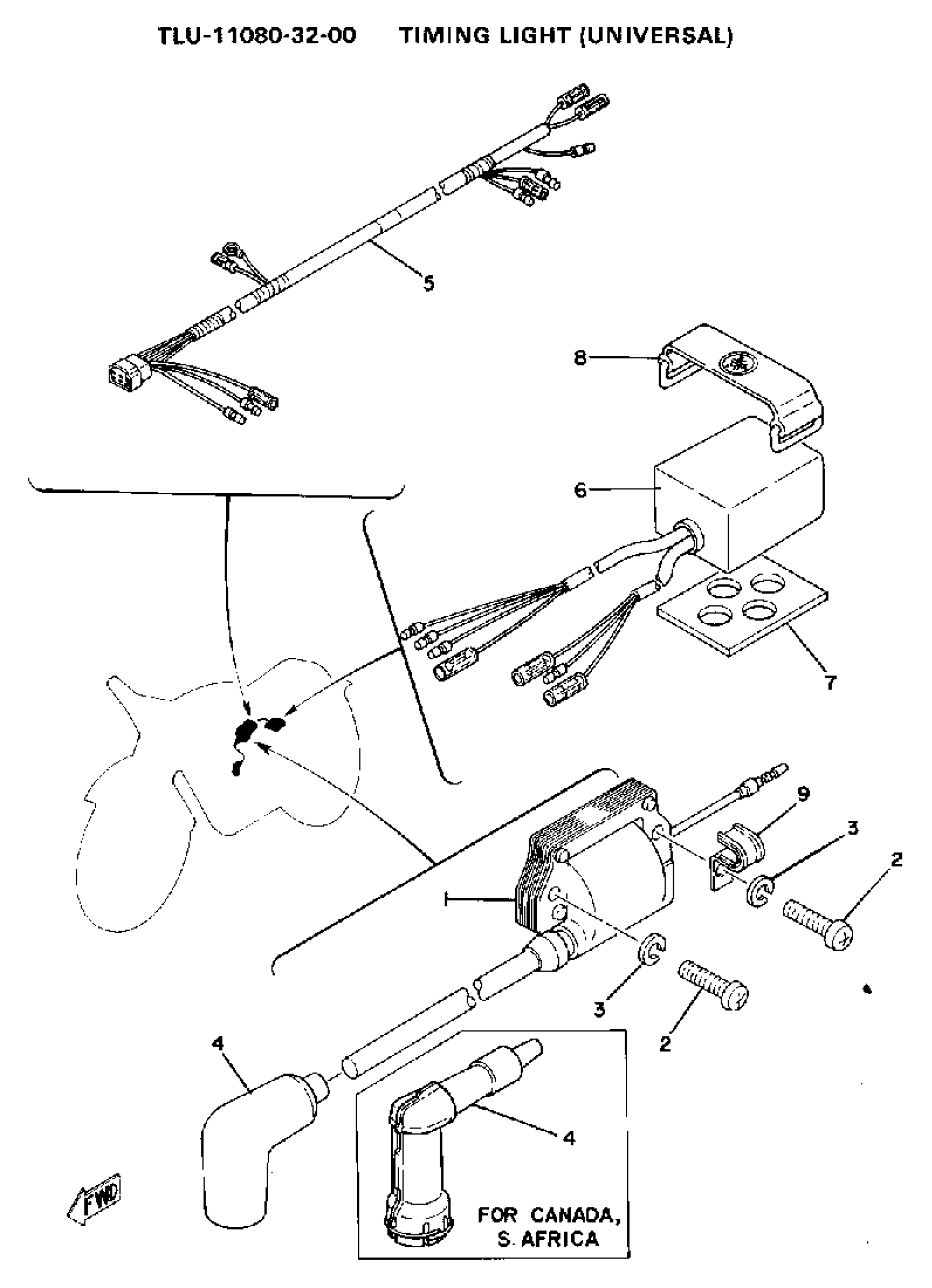

Yamaha IT175F (IT175) 1979 ELECTRICAL Diagram

#

Description

Price

1

IGNITION COIL ASSY

355-82310-40-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

3

WASHER, SPRING

92995-06100-00

$2.95

4

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

4

PLUG CAP ASSEMBLY

808-82370-10-00

Unavailable

5

WIRE HARNESS ASSEMBLY

(1W2-82590-01-00)

Unavailable

6

CDI UNIT ASSEMBLY

2W6-85540-20-00

Unavailable

7

DAMPER

3RB-85547-01-00

Unavailable

8

BAND, TOOL

21V-21376-00-00

$5.96

9

CLAMP 363154850100

90462-05005-00

Unavailable
