1977 Yamaha IT175 (IT175D) Rear Wheel Diagram

← All diagrams

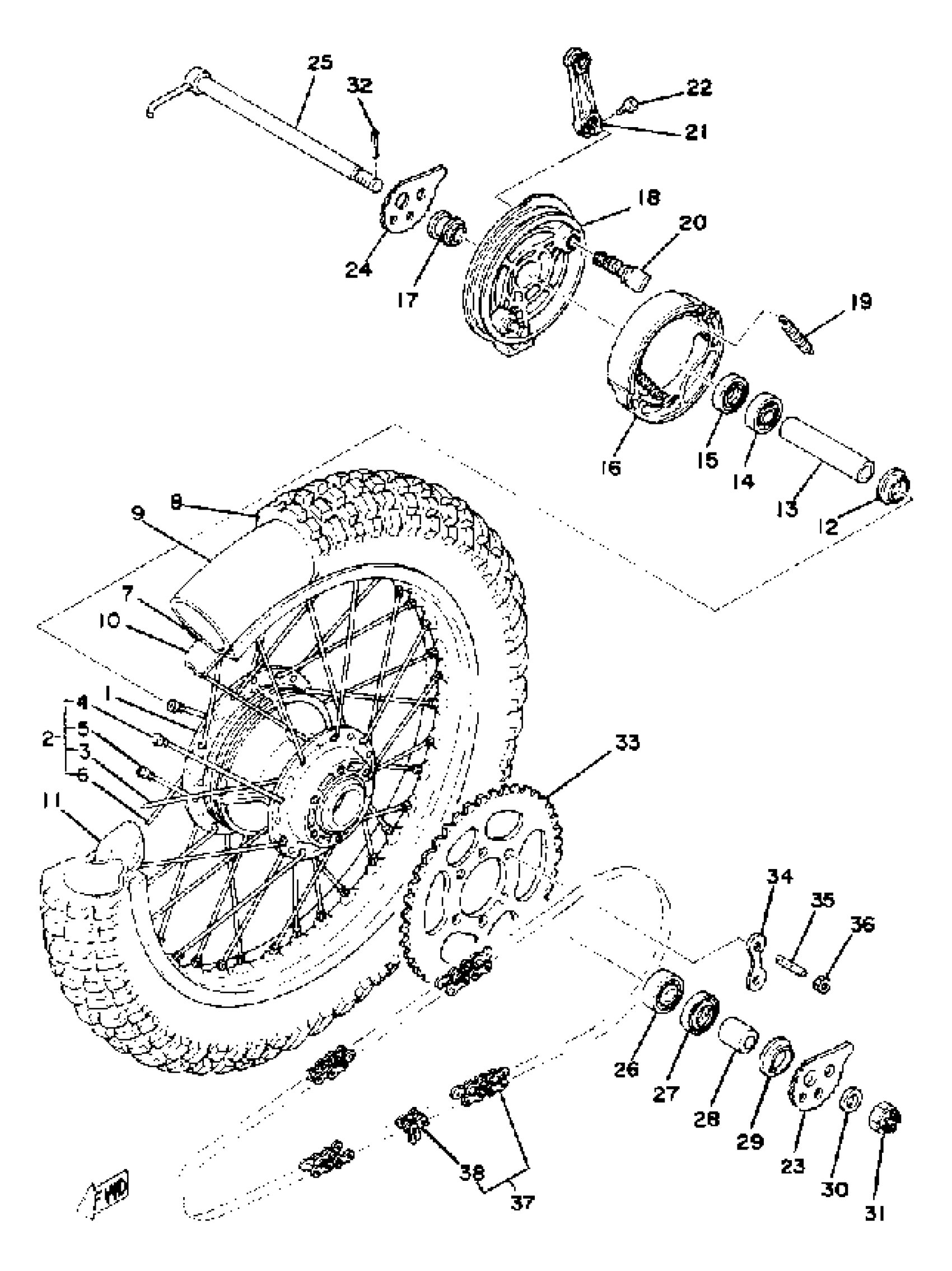

Find the part on the Rear Wheel diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT175 (IT175D) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

1W1-25311-00-98

1
Out of stock

2

SPOKE SET, REAR

537-25304-01-00

1
Out of stock

3

SPOKE SET, INNER 2

(537-25396-90-00)

1
Out of stock

4

SPOKE SET, OUTER 2

(537-25397-90-00)

1
Out of stock

5

SPOKE SET, INNER 1

(537-25391-90-00)

1
Out of stock

6

SPOKE SET, OUTER 1

(537-25392-90-00)

1
Out of stock

7

RIM 1.85X18

94418-18245-00

1
Out of stock

8

410X18 IRC MX

(94141-18270-00)

1
Out of stock

9

TUBE (5H5)

94227-18195-00

1
Out of stock

10

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

11

SPACER, BEAD

2X3-25394-00-00

1
Out of stock

12

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

13

SPACER

90560-15313-00

1

$39.77

In stock

14

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

15

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

16

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

17

COLLAR

90387-15623-00

1
Out of stock

18

PLATE, BRAKE SHOE

(1W2-25321-00-98)

1
Out of stock

18

PLATE, BRAKE SHOE

(1W2-25321-02-98)

1
Out of stock

19

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

20

UNAVAILABLE IN PRICE BOOK

2A6-25310-10-0

1
Out of stock

20

CAMSHAFT

26A-25351-00-00

1
Out of stock

21

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

22

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

23

PULLER, CHAIN (L.H)

1W2-25388-01-00

—
Out of stock

24

PULLER, CHAIN (R.H)

1W2-25389-01-00

—
Out of stock

25

AXLE, WHEEL

5X3-25381-00-00

1
Out of stock

26

BEARING

93306-30212-00

—

$33.35

In stock

27

SEAL,OIL

93106-26005-00

—

$6.67

In stock

28

COLLAR

90387-15524-00

1
Out of stock

29

COVER, DUST

401-25367-00-00

—

$7.66

In stock

30

WASHER (525)

90201-15238-00

—
Out of stock

31

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

32

PIN, COTTER

91490-30030-00

—

$7.15

In stock

33

SPROCKET, DRIVN 39T

1W2-25439-00-00

1
Out of stock

33

SPROCKET, DRIVN 41T

1W2-25441-00-00

1
Out of stock

33

SPROCKET, DRIVN 43T

1W2-25443-00-00

1
Out of stock

34

WASHER, SPECIAL.

1G8-25412-00-00

—

$7.51

In stock

35

BOLT, STUD (537 HUB)

90116-10221-00

—

$4.08

In stock

36

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

37

CHAIN 520TR-94L (DK520TR-94L)

94585-20094-00

1
Out of stock

38

. JOINT CHAIN

94680-11001-00

1
Out of stock
