1977 Yamaha IT175 (IT175D) Frame - Side Cover Diagram

← All diagrams

Find the part on the Frame - Side Cover diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

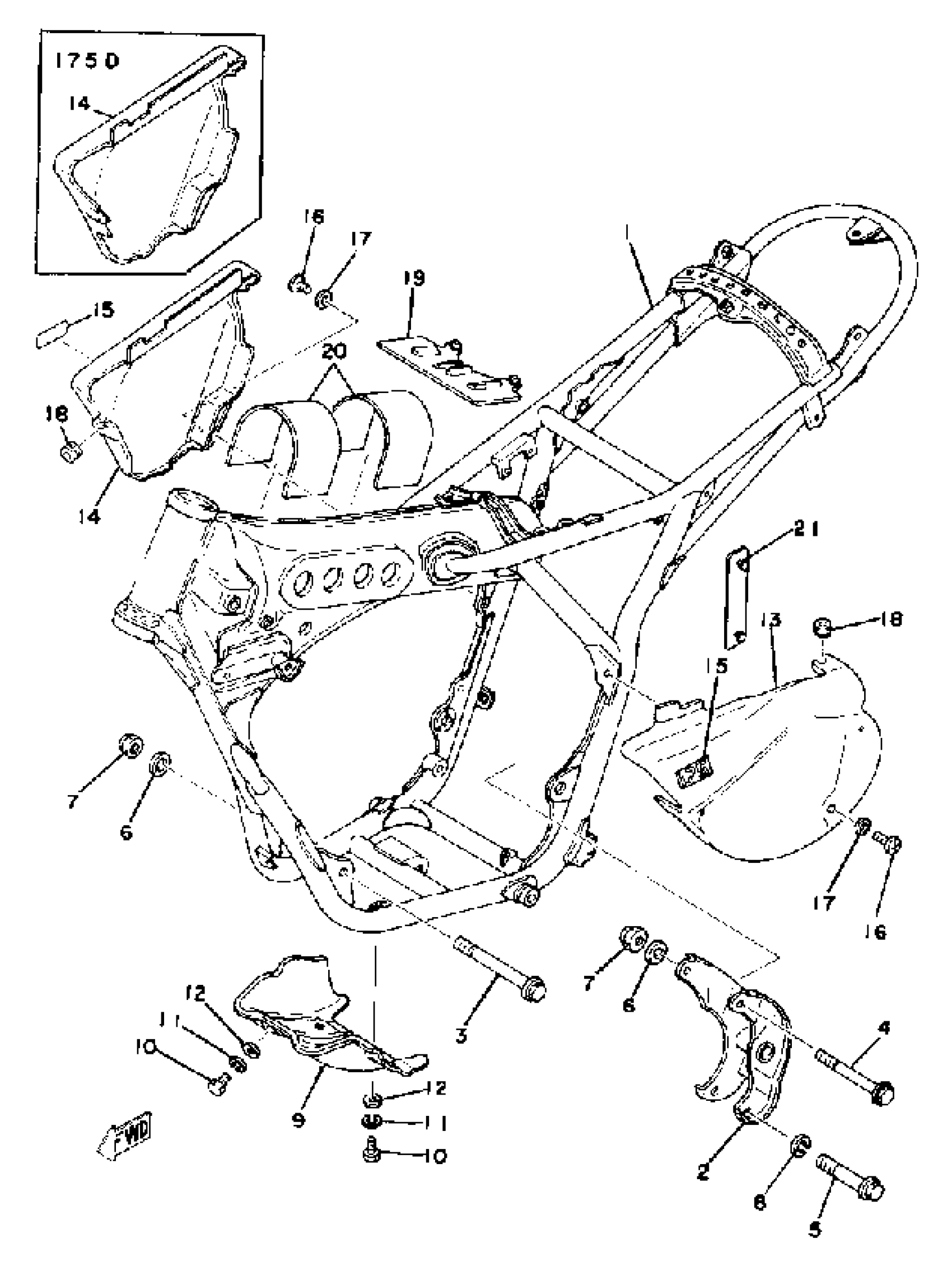

1977 Yamaha IT175 (IT175D) Frame - Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1W2-21110-01-33)

1
Out of stock

1

FRAME

(1W2-21110-03-33)

1
Out of stock

2

ENGINE BRKT

1W1-21410-00-00

1
Out of stock

3

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

4

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

5

BOLT

90105-10037-00

—

$7.51

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

PROTECTOR, ENGINE

(1W2-21471-00-00)

1
Out of stock

10

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

COVER, SIDE 1

1W2-21711-00-00

1
Out of stock

14

COVER, SIDE 2

(1W2-21721-01-00)

1
Out of stock

15

EMBLEM, PROTECTOR

525-14729-20-00

1
Out of stock

16

SCREW, BIND(J45)

98980-06012-00

—

$4.70

In stock

17

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

18

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

18

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

19

UNAVAILABLE IN PRICE BOOK

1W1-21481-00-00

1
Out of stock

20

DAMPER, LOCATING 3

1W1-24183-00-00

1
Out of stock

21

SEAL 1

537-21732-00-00

1
Out of stock
