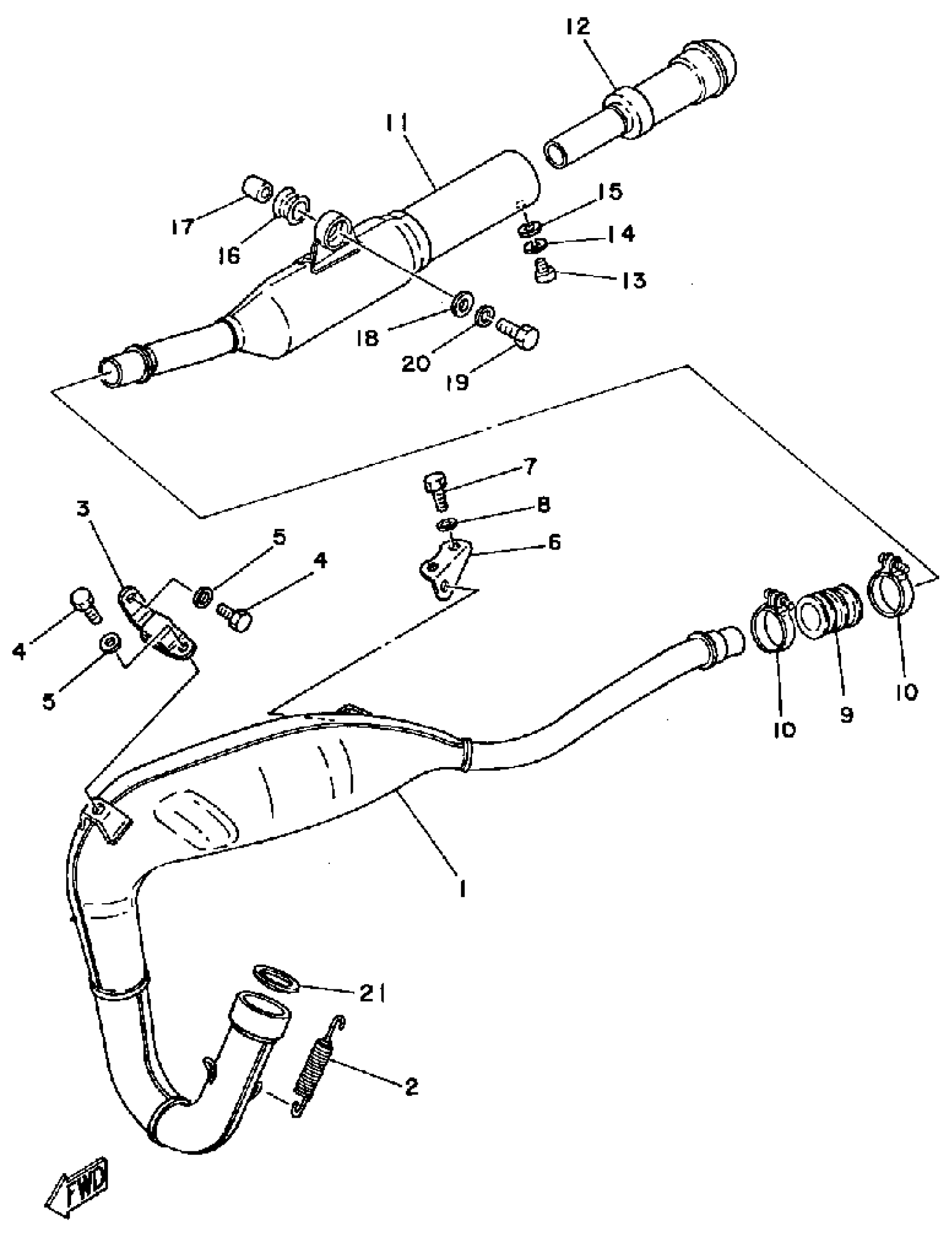

Yamaha IT125G (IT125) 1980 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

3R9-14610-00-00

Unavailable

2

SPRING, TENSION (1W4)

90507-20030-00

$11.73

3

STAY, MUFFLER 2

1M1-14772-00-00

Unavailable

4

BOLT (661)

97013-06012-00

$4.40

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

STAY, MUFFLER 1

565-14771-01-00

$15.57

7

BOLT (661)

97013-06012-00

$4.40

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

GASKET, MUFFLER JOINT

1W2-14714-00-00

$27.41

10

CLAMP, HOSE

90460-37130-00

Unavailable

11

SILENCER, EXHAUST

2A6-14753-00-00

Unavailable

12

PIPE, OUTLET

1M1-14752-01-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

14

WASHER, SPRING

92995-06100-00

$2.95

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

DAMPER

565-14747-00-00

Unavailable

17

COLLAR (437)

90387-08258-00

Unavailable

18

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

19

BOLT, HEXAGON

97013-08030-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

GASKET, EXHAUST PIPE

3R3-14613-00-00

Unavailable
