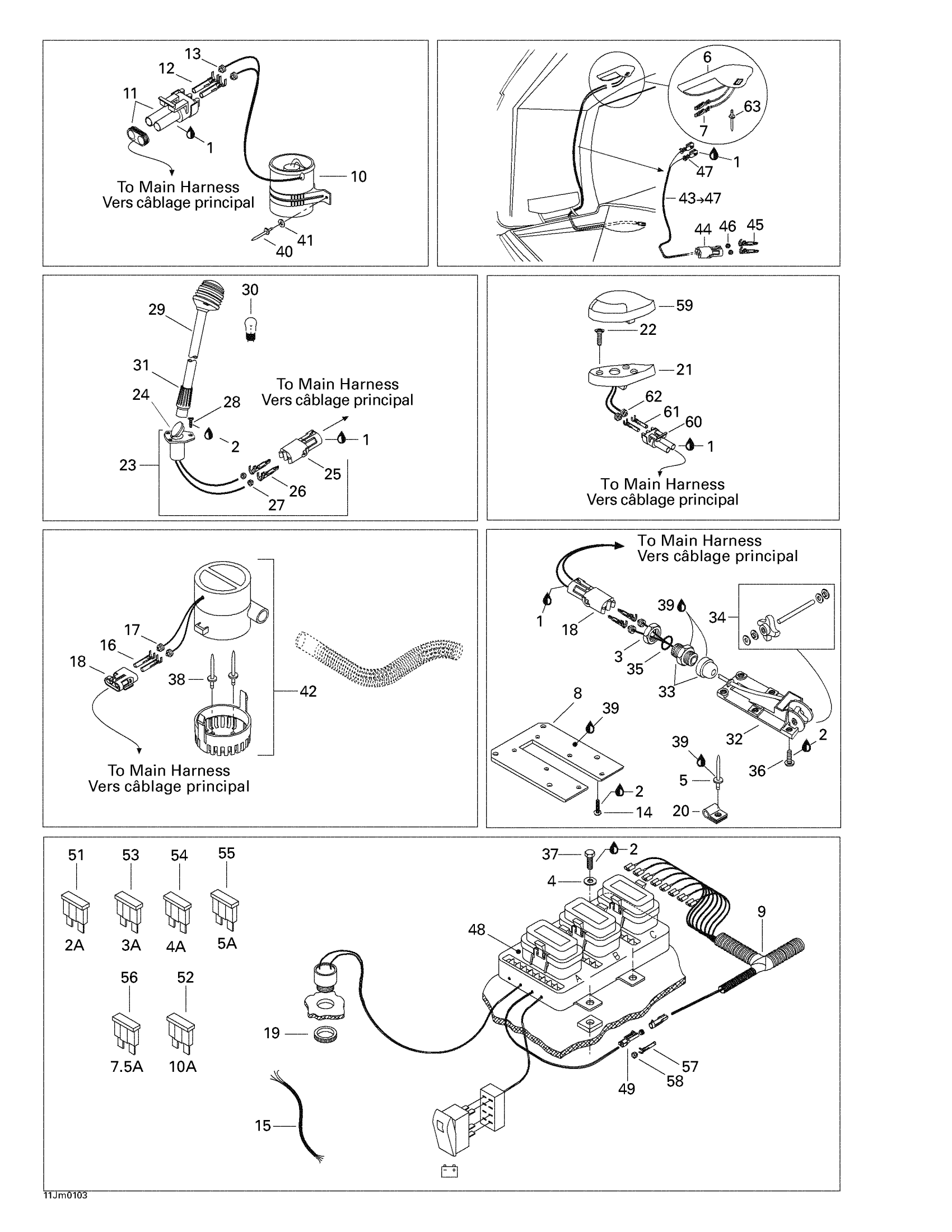

Sea-doo Islandia, 5449, 2001 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Loctite 243, 10 ml

293800060

$20.77

3

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.64

5

Pop Rivet 3/16"

293150088

$0.91

6

Toilet Lamp

204470413

Unavailable

7

Male Terminal

204470553

Unavailable

8

Sensor Support

204470538

Unavailable

9

Harness

204470576

Unavailable

10

Fan Ass'y | Includes 44 to 47

204470108

$114.37

11

Male Connector, 2 Circuits

278000220

$11.02

12

Female Terminal

278000223

$2.55

13

Wire Seal

278000218

$3.48

14

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.88

15

Fuse Harness

204470566

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Wire Seal

278000216

$2.55

18

Female Housing, 2 Circuits

278000217

$7.59

19

Buzzer Nut

278000707

Unavailable

20

Cable Clamp 3/16”

204100026

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Female Housing, 2 Circuits

278000217

$7.59

26

Male Terminal | XT Models

278000222

$2.55

27

Wire Seal

278000218

$3.48

28

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

29

Rear Lamp Pole | Includes 29 - 31.

204470533

Unavailable

30

Bulb

204470053

Unavailable

31

COLLAR - Call your local BRP dealership

204470350

Unavailable

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

37

Hex. Cap Screw M6 X 12

207161260

$1.21

38

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

39

Silicone Sealant 51388, 300 ml

296000309

$35.72

40

Pop Rivet 3/16"

293150008

$0.40

41

Flat Washer 5 mm, Stainless

234052600

$0.64

42

Bilge Pump

204471431

Unavailable

43

Toilet Light Harness | Includes 30 To 34

204470552

Unavailable

44

Female Housing, 2 Circuits

278000217

$7.59

45

Male Terminal | XT Models

278000222

$2.55

46

Wire Seal

278000218

$3.48

47

Not Available As Spare Part - Friction Washer

Unavailable

48

FUSE BLOCK - Call your local BRP dealership | Includes 18 To 28

204470610

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Male Connector, 2 Circuits

278000220

$11.02

51

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

52

Fuse, 10 Amperes | North America

278001197

$1.79

53

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Fuse, 5 Amperes | CE

278000344

$3.12

56

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

57

Female Terminal

278000223

$2.55

58

Wire Seal

278000218

$3.48

59

NAVIGATION LIGHT, GREEN, STARBOARD - Call your local BRP dealership | Includes 5 to 8

204470407

Unavailable

Navigation Light, Red, Port Side | Includes 5 to 8

204470409

Unavailable

60

Female Housing, 2 Circuits

409209500

$13.07

61

Female Terminal

278001014

$2.72

62

Wire Seal

278001013

$2.72

63

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
