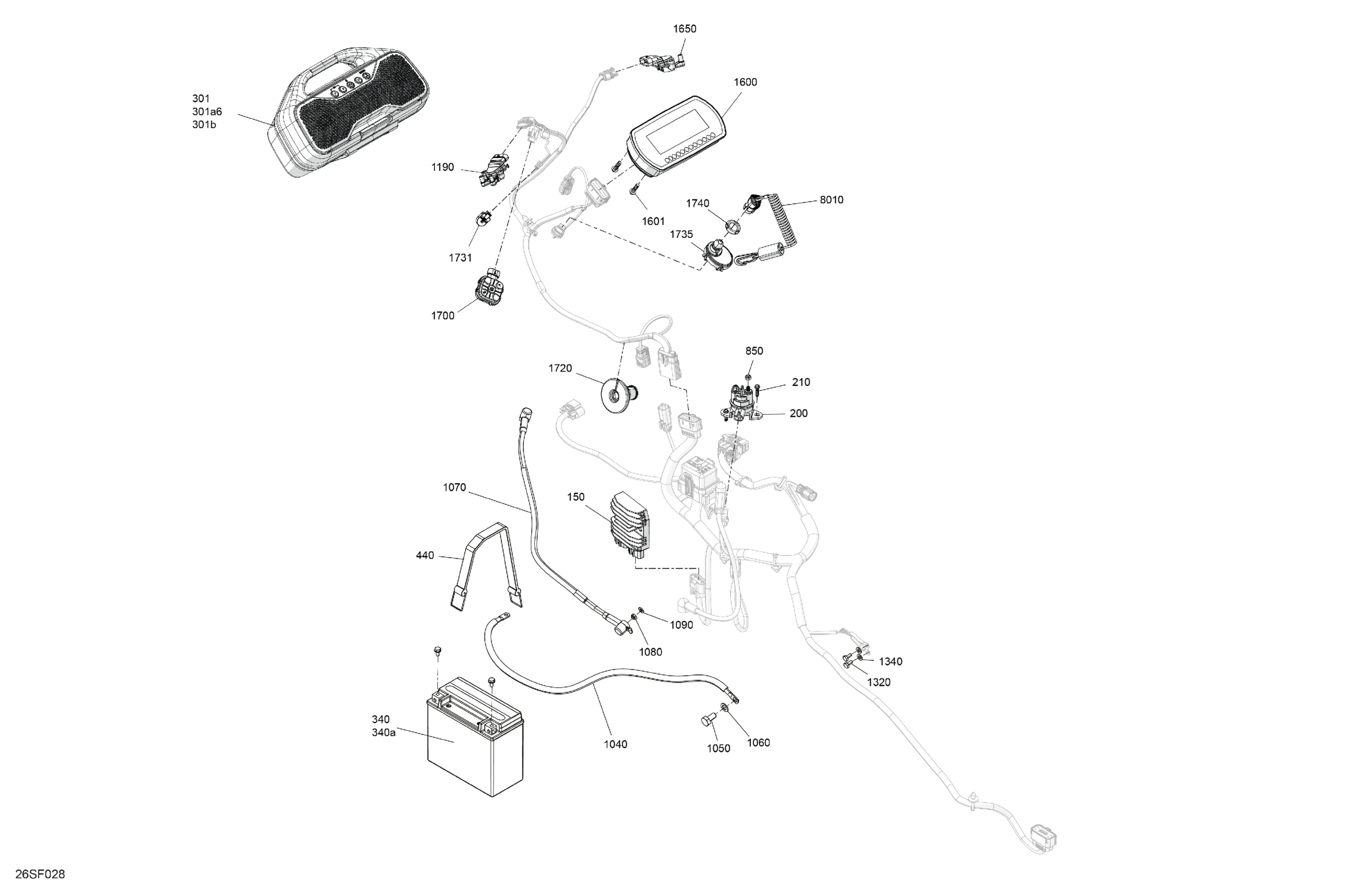

Sea-doo International - SPARK - 900 HO ACE - CONV - 63TF - Sunrise Orange - 3UP, 2026 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

210

Hex. Flange PT Screw K50 X 20

241152040

$1.74

301

Bluetooth Audio System Kit | Includes 301 to 301b

295101184

$1,024.99

301a6

Battery Support

278003689

$15.35

301b

Power Cable

278004778

$26.12

340

Battery 12 Amperes | Includes 50 to 50a

219800518

$105.92

340a

Battery Bolt Kit

219800485

$5.19

440

Fuel Tank Strap

293850093

$16.87

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Cable

278003271

$31.17

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

1060

Flat Washer 10 mm, Stainless

234000600

$1.07

1070

Starter Cable

278003268

$59.97

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1600

Multifunction Mono Compact Gauge

278003430

$563.05

1601

Hex. Flange PT Screw K50 X 20

241152040

$1.74

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch

278004171

$66.92

1720

Cable Grommet

293720092

$10.28

1731

Switch Start/Stop This part replaces 278002676.

278002676

$42.87

1735

Terminal DESS One Wire

515179305

$60.42

1740

Specialized Nut

278004274

$2.72

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
