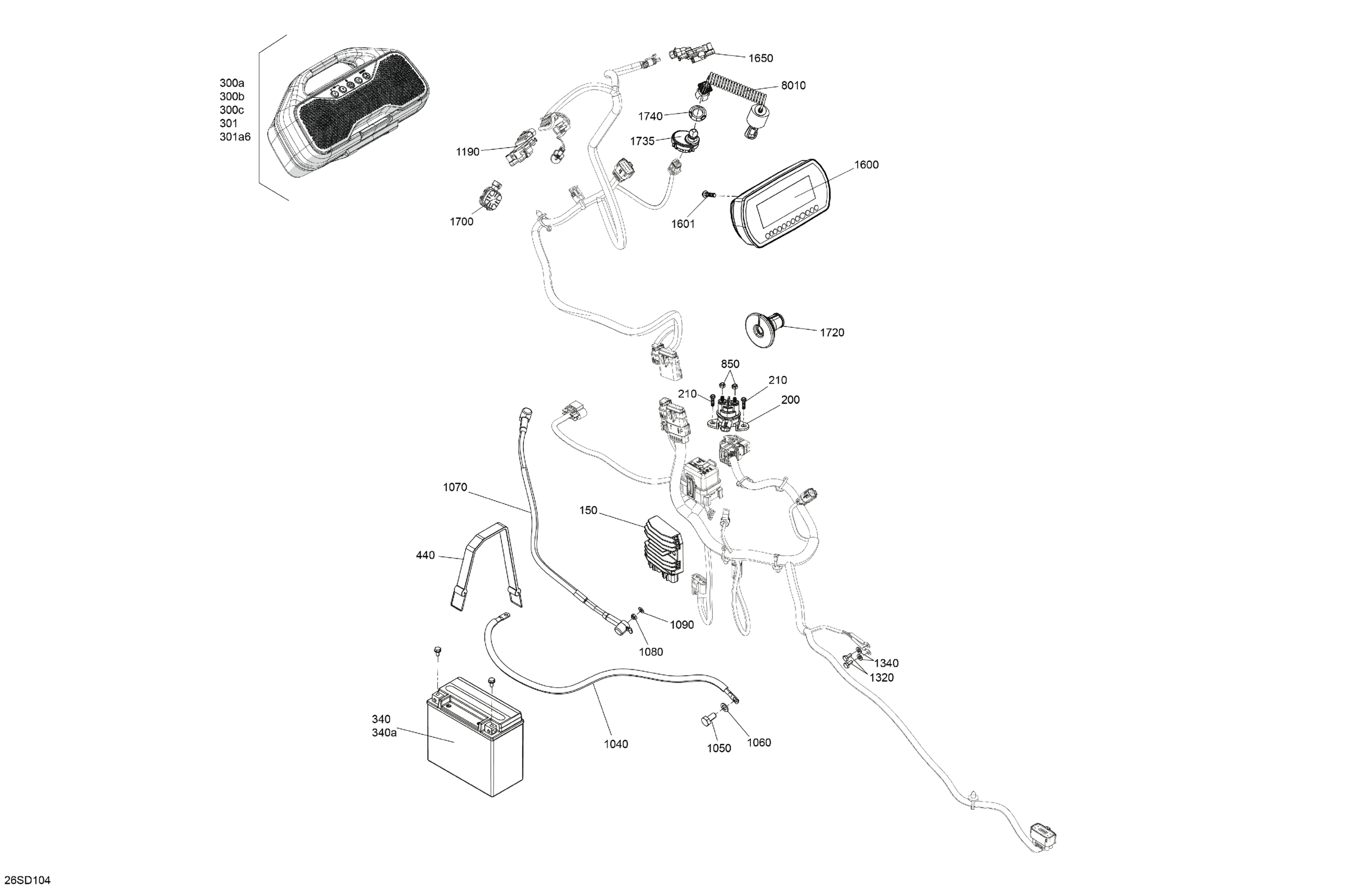

Sea-doo International - SPARK 900 HO ACE - 63RD - Conv package - Sunrise Orange - 3UP - Audio,2024 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

210

Hex. Flange Screw K50 X 20

241152060

$1.57

300a

AC Power Adapter

278003825

$118.92

300b

Type C Power Cable Kit

278003832

$27.66

300c

Type I Power Cable Kit

278003831

$27.66

301

Bluetooth Audio System Kit | Includes 301 to 301b

295101184

$1,024.99

301a6

Battery Support

278003689

$15.35

340

Battery 12 Amperes | Includes 50 to 50a

219800472

$105.92

340a

Battery Bolt Kit

219800541

$7.46

440

Fuel Tank Strap

293850093

$16.87

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Cable

278003271

$31.17

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

1060

Flat Washer 10 mm, Stainless

234000600

$1.07

1070

Starter Cable

278003268

$59.97

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1600

Multifunction Mono Compact Gauge

278003430

$563.05

1601

Hex. Flange Screw K50 X 20

241152060

$1.57

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch

278004171

$66.92

1720

Cable Grommet

293720092

$10.28

1731

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

1735

Terminal DESS One Wire

515179305

$60.42

1740

Specialized Nut

278004274

$2.72

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
