Description

Price

1

Transmission Housing Ass'y

420213008

$660.00

2

Center Pin 8 X 12

420632010

$3.07

3

Dowel Pin 10 X 13

420929670

$10.52

4

Ball Bearing

420632745

$24.58

5

Ball Bearing

420832098

$26.89

6

Ball Bearing 6204

420932433

$22.28

7

Oil Seal

420431402

$18.43

8

Transmission Cover

420213015

$217.00

9

Ball Bearing

420632745

$24.58

10

Ball Bearing

420832098

$26.89

11

Oil Seal

420831187

$15.22

12

Oil Seal

420950089

$18.43

13

Collar Screw M6 X 45

420441921

$1.83

14

Oil Seal

420250457

$15.22

15

Plug

420460031

$5.00

16

Sealing Ring

420950141

$1.64

17

Torx Flange Screw M8 X 16

420440852

$4.00

18

Index Pin

420637990

$15.00

19

Spring

420238065

$2.00

20

Gasket Ring

420430624

$1.51

21

Plug Screw M16 X 1.5

420240234

$13.58

22

Crush Washer

420552280

$2.99

23

Drain Plug M18 X 1.5

420840278

$23.05

24

O-Ring

420650350

$8.81

25

Plug Screw M14 X 1.5

420241662

$14.37

26

Breather Plug

420956590

$12.00

27

Gear Selection Switch

420640194

$41.51

28

Tie-Rap With Mount

420651810

$5.92

29

O-Ring

420450520

$3.98

30

Collar Hex Screw M8 X 95

420941565

$4.00

31

Engine Bracket Rear Inl

420911783

$22.00

32

Torx Flange Screw M8 X 45

420441932

$1.83

33

Rubber Grommet

420260255

$6.00

34

Transmission Ass'y

420686717

$2,860.00

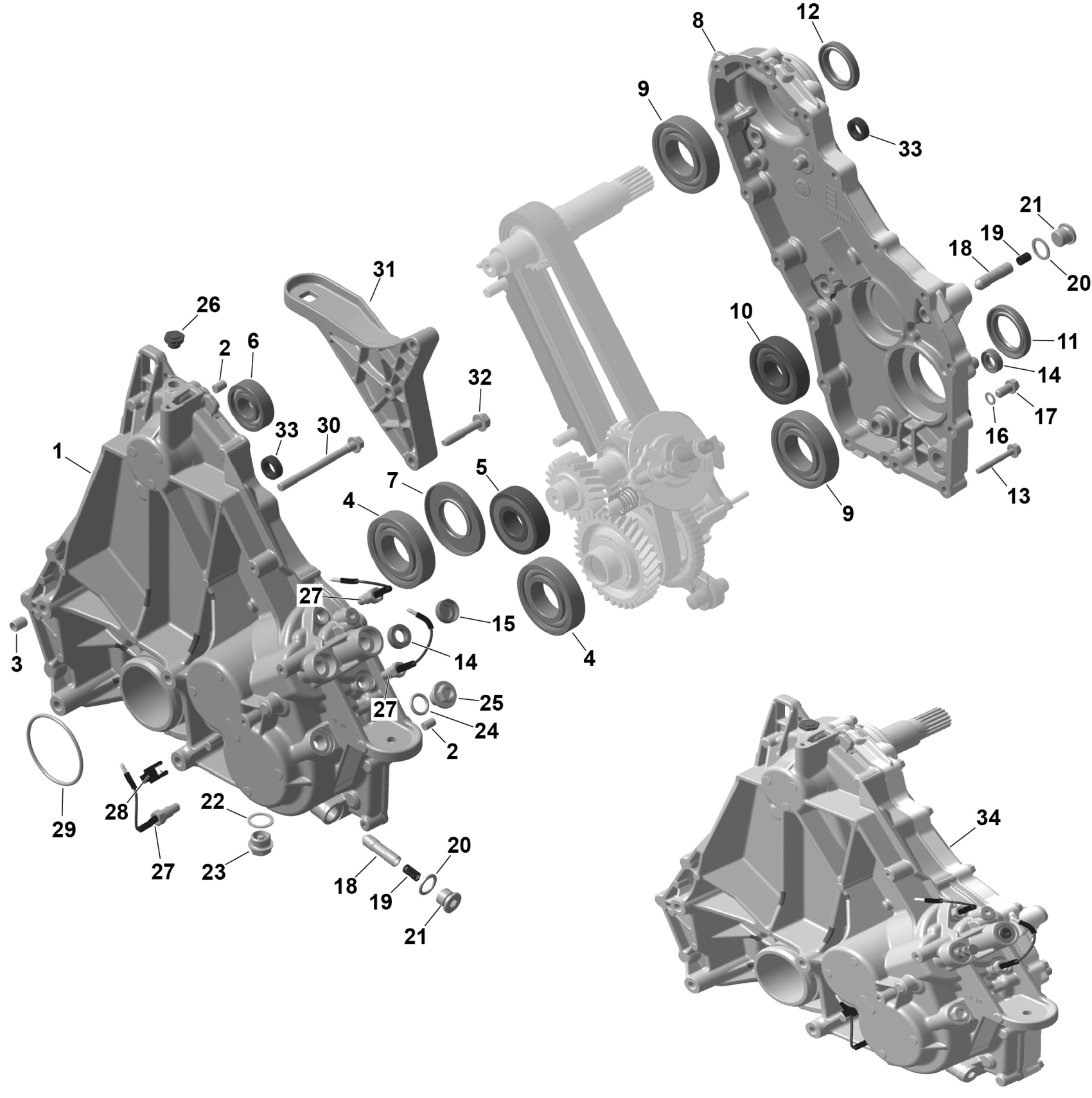

Can-Am RYKER - STD - 900 ACE - F2TA - Deep Black, 2026 ROTAX - GearBox Housing Diagram
