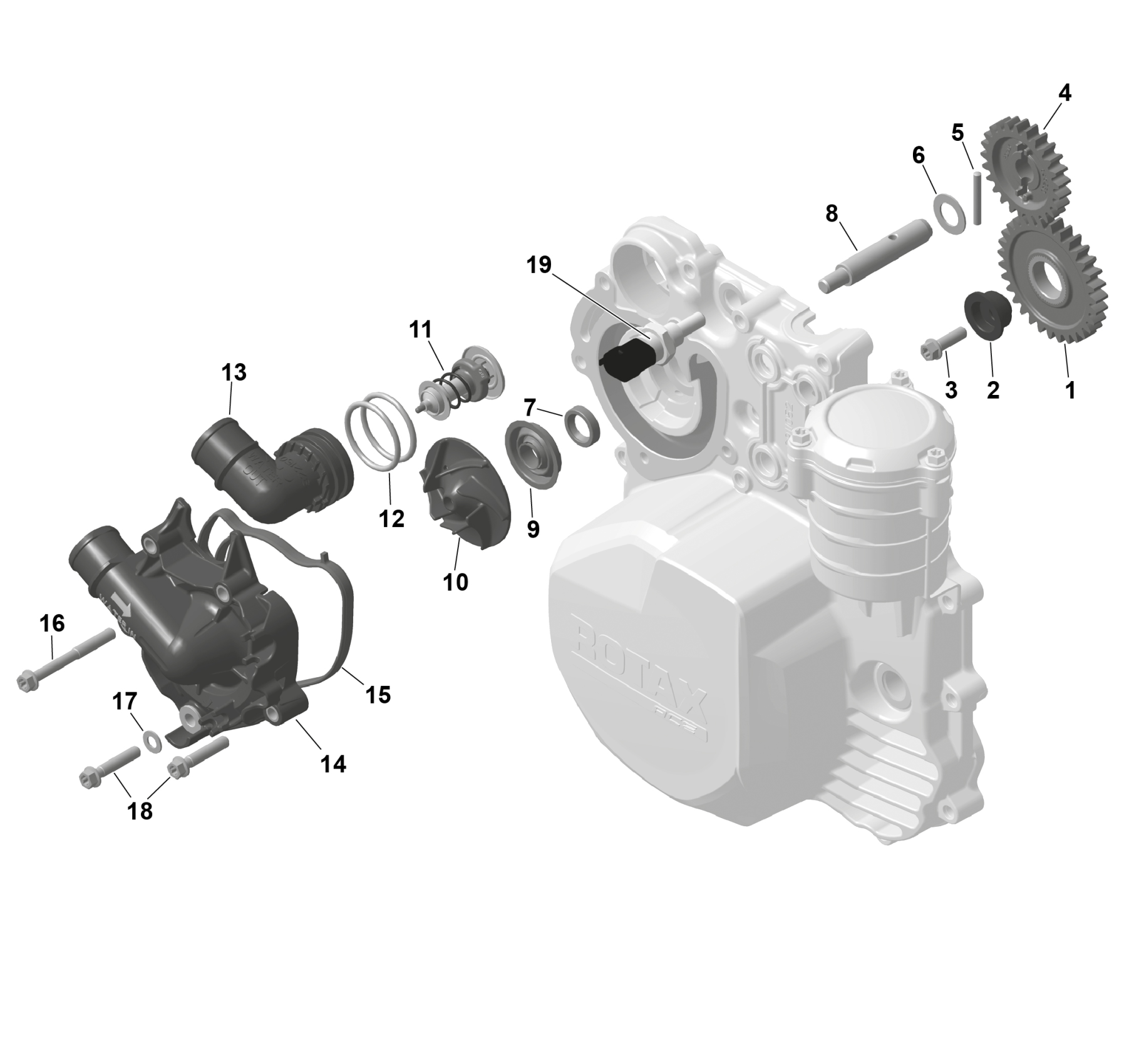

Can-Am RYKER - STD - 900 ACE - F2TA - Deep Black, 2026 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Idle Gear, 31 Teeth

420835067

Unavailable

2

Spacer

420947394

$20.77

3

Torx Flange Screw M6 X 20

420440207

$2.54

4

Water Pump Gear

420835230

Unavailable

5

Needle Pin

420232432

$3.67

6

Thrust Washer

420827261

Unavailable

7

Oil Seal

420931802

Unavailable

8

Waterpump Shaft

420820150

Unavailable

9

Seal | included in gaket kit

420850948

Unavailable

10

Water Impeller

420222880

Unavailable

11

Thermostat 80°

420822651

Unavailable

12

Water Pump Housing O-Ring

420950896

Unavailable

13

Thermostat Cover

420922150

$8.34

14

Water Pump Housing

420922293

$59.12

15

Water Pump Housing Gasket

420431682

Unavailable

16

Torx Flange Screw M6 X 55

420440702

Unavailable

17

Sealing Washer

404146600

Unavailable

18

Torx Flange Screw M6 X 30

420440647

Unavailable

19

Temperature Sensor

278002895

$31.82
