Description

Price

1

Engine Block

420894024

$2,140.00

2

Center Pin 8 X 12

420632010

$3.07

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Cushion

420933180

$14.27

6

Cushion

420933185

$14.92

7

Ring Half

420933140

$8.89

8

Threaded Pin

420840508

$14.92

9

Torx Flange Screw M8 X 55

420641213

$6.11

10

Torx Flange Screw M6 X 35

420440274

$0.83

11

Torx Flange Screw M9 X 113

420940945

$10.41

12

Oil Sump Gasket | Included in gasket kit

420431822

$12.97

13

Oil Sump

420912383

$101.51

14

Torx Flange Screw M6 X 25

420841548

$4.39

15

PTO Cover

420911686

$52.00

16

PTO Cover Gasket

420450080

$5.29

17

Torx Flange Screw M8 X 35

420440861

$3.17

18

Sealing Ring

420950141

$1.64

19

Torx Flange Screw M8 X 16

420440852

$4.00

20

Engine Bracket Front Exh.

420911777

$22.00

21

Engine Bracket Front inl.

420911773

$22.00

22

Collar Hex Screw M8X35

420640440

$1.00

23

Engine Gasket Set

420686241

$529.00

24

Long Block 903

420090370

$4,104.00

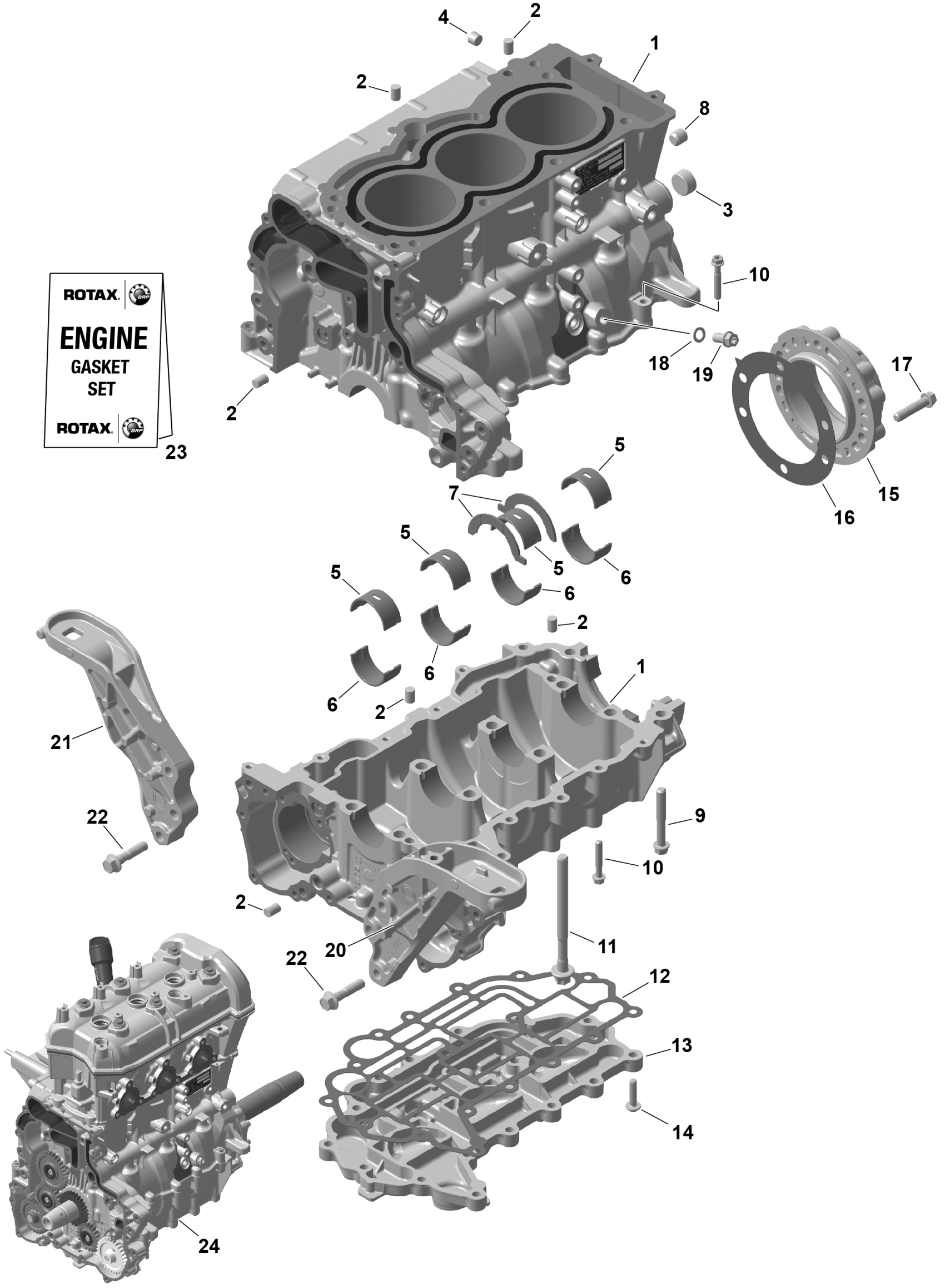

Can-Am RYKER - STD - 900 ACE - F2TA - Deep Black, 2026 ROTAX - Crankcase Diagram
