Description

Price

100a

LH Upper Frame

705208901

$145.00

100c

Panel Nut M6 X 1.0

250100208

$1.07

100d

LH Holder (support)

705013415

$4.00

100f

Torx Truss PT K40 x 12

250001131

$1.74

100g

Low Beam Support Ass'y

705207855

$21.00

100h

Torx Screw M6 X 20

250000722

$1.34

100j

LH Upper Front Acoustic Foam

705013944

$4.00

100k

LH Upper Rear Acoustic Foam

705013946

$19.00

100m

RH Upper Frame

705208902

$145.00

100p

Panel Nut M6 X 1.0

250100208

$1.07

100q

RH Holder (support)

705013416

$4.00

100r

Torx Truss PT K40 x 12

250001131

$1.74

100s

Low Beam Support Ass'y

705207855

$21.00

100t

Torx Screw M6 X 20

250000722

$1.34

100u

RH Upper Front Acoustic Foam

705013945

$5.00

100v

RH Upper Rear Acoustic Foam

705013947

$19.00

100w

Hex. Flange Screw M6 X 20

207662054

$0.83

100x

Hex. Flange Elastic Nut M6

233261466

$1.66

100y

Tank Trim

705016524

$215.00

100z

Tuflok Plastic Rivet

293150230

$1.21

100aa

Connector Support

515179692

$1.63

100ab

Storage Compartment Front

705205819

$110.00

100ac

Neoprene Seal Joint

708200794

$16.00

100ad

Lid Latch Ass'y

705019858

$155.00

100af

Torx Truss PT K40 x 12

250001131

$1.74

100ag

Acoustic Foam, Storage Compartment

705013943

$4.00

100ah

Center Front Fairing

705013110

$21.00

100aj

Driver Seat Ass'y | Includes 100ad to 100ad5

708003307

$490.00

100aj4

Grommet

705003264

$3.43

100aj5

Seat Stopper

708003866

$3.61

100ak1

Upper Rear Fender

705013197

$205.00

100ak2

LH Cover

705013619

$7.00

100ak3

RH Cover

705013620

$7.00

100ak4

Rear Frame

219400800

$417.00

100ak4a

Passenger Chassis Module Kit

219401169

$406.00

100ak4b

Warning Decal, Passenger

704907499

Unavailable

100ak5

Torx Truss M8 X 25

250000874

$1.74

100ak6

Torx-truss M/s M6 X 10

250000995

$3.61

100ak7

Rivet, Plastic

293730084

$4.00

100am

Large Shoulder Nut M6

705014119

$6.00

100an

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

100ap

Torx Truss Screw M6 X 25

250000807

$1.74

100aq

Stainless Steel Flat Washer

234062670

$1.74

100ar

Torx Truss Screw M6 X 16

250000721

$1.39

100as

RH Rear Chassis Trim

705016201

$8.00

100at

LH Rear Chassis Trim

705016202

$8.00

100au

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$81.00

100au2

Decal Aesthetic Notice

704907056

Unavailable

100av

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$52.00

100av2

Fuel Door Filler

705017575

$52.00

100av3

Torx-Truss Screw K40 X 10

250001034

$0.81

100aw

Upper Fairing

705017574

$39.00

600a1

Tuflok Plastic Rivet

293150230

$1.21

600a2

Torx-Truss Screw K40 X 10

250001034

$0.81

600a3

Pivot

705013475

$1.00

600a4

Torx Truss Screw K40 X 12

250000577

$1.74

600a5

Dart Clip

293730080

$1.00

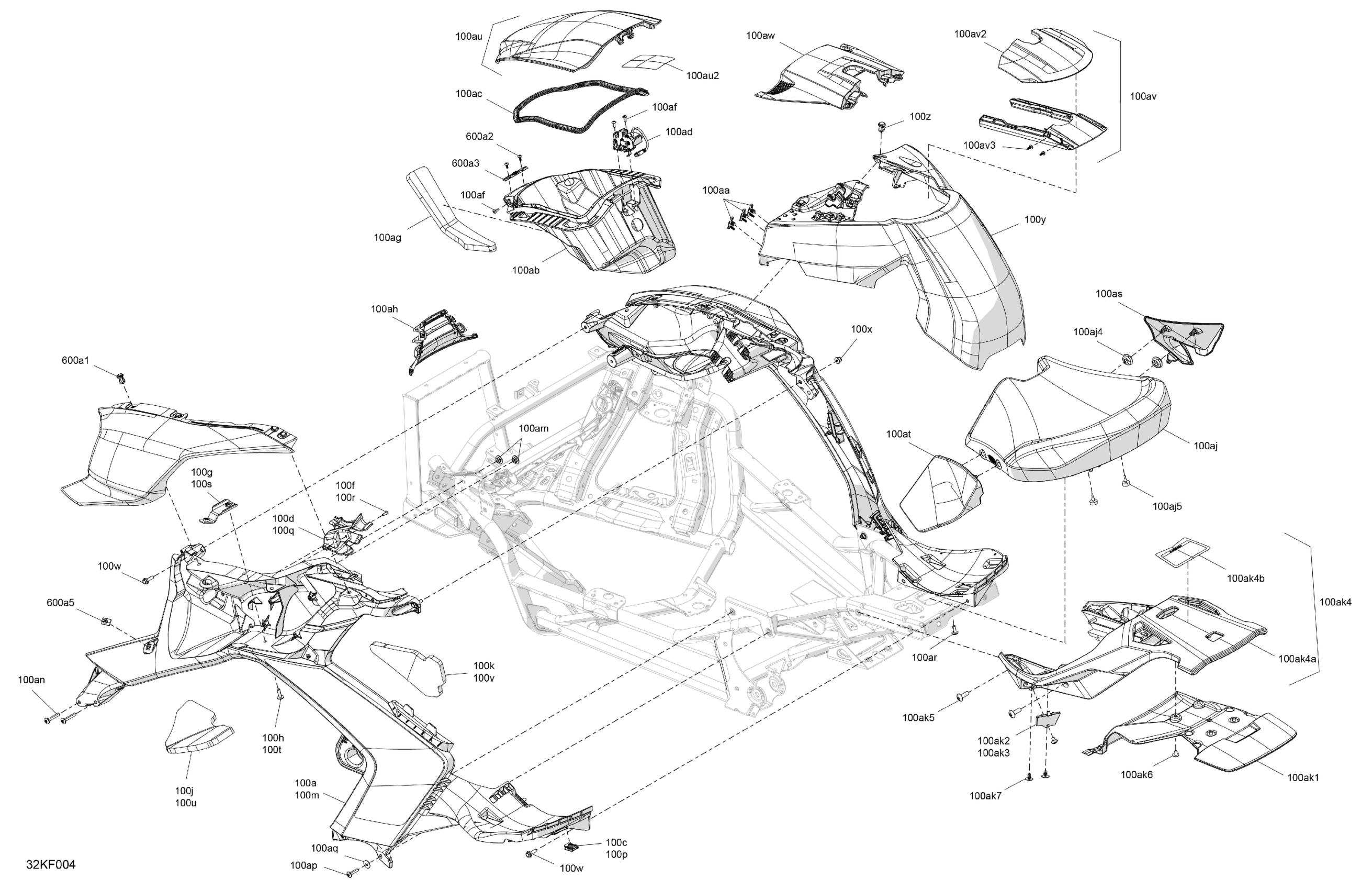

Can-Am International - RYKER - RALLY - 900 ACE - F3TB - Deep Black, 2026 Body - Upper Section Diagram
