Description

Price

100a

Rear Fender Support

705014612

$115.00

100b

Grommet Ass'y

705005055

$13.00

100c

Black, Pop Rivet 3/16 X ,425

293150300

$0.71

100d

Insert M5 - 0.8

293450267

$4.22

100f

Insert Half Hex Body M6 x 1.0

250100199

$2.54

100g

Panel Nut M6 X 1.0

250100208

$1.07

100h

LH Fender Trim Support

705013621

$18.00

100j

Torx Truss Screw M5 X 16, T25

250000578

$1.74

100k

Rear Lower Fender

705013625

$410.00

100m

Torx Truss M6X14

250000789

$4.41

100n

Panel Nut M6 X 1.0

250100208

$1.07

100p

Hex. Flange Nut M6

233061414

$1.34

100q

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

100r

Screw 8-32

250001097

$3.00

100s

Mud Guard

705013229

$40.00

100t

Rear Fender Trim

706003151

$15.00

100u

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

100v

Flat Washer

224061121

$0.44

100w

Rear Mud Guard

705016134

$57.00

100x

License Plate Support Ass'y

706005434

$39.00

100x2

Amber Reflector

520002069

$5.00

100y

Screw M4 X 16

250000725

$2.87

300a

LH Front Fender | Includes 100 to 100a

705016207

$205.00

300a1

LH Front Fender

705010755

$205.00

300b

LH Front Mud Guard

705016133

$32.00

300c

Push Nut

250100181

$2.00

300f

LH Front Position Light

710007008

$120.00

300g

Torx Truss PT K40 x 12

250001131

$1.74

300h

Yellow, LH Reflector

705012404

$18.00

300j

Rear Reflector, Front Fender

705012406

$5.00

300k

LH Front Fender Support

705017326

$115.00

300m

Plastite Screw M4 X 10

250000805

$1.74

300n

Torx Screw K50 X 16

250000720

$1.39

300p

Clip Bracket Connector (edge)

409210100

$2.00

300q

LH Front Fender Trim

705018433

$8.00

300r

Torx Truss PT K40 x 12

250001131

$1.74

400a

RH Front Fender

705016208

$140.00

400b

RH Front Mud Guard

705016132

$32.00

400c

Push Nut

250100181

$2.00

400f

RH Front Position Light

710007009

$120.00

400g

Torx Truss PT K40 x 12

250001131

$1.74

400h

Yellow, RH Reflector

705012405

$18.00

400j

Rear Reflector, Front Fender

705012406

$5.00

400k

RH Front Fender Support

705017327

$115.00

400m

Plastite Screw M4 X 10

250000805

$1.74

400n

Torx Screw K50 X 16

250000720

$1.39

400p

Clip Bracket Connector (edge)

409210100

$2.00

400q

RH Front Fender Trim

705018434

$8.00

400r

Torx Truss PT K40 x 12

250001131

$1.74

600a1

Screw M4 X 16

250000725

$2.87

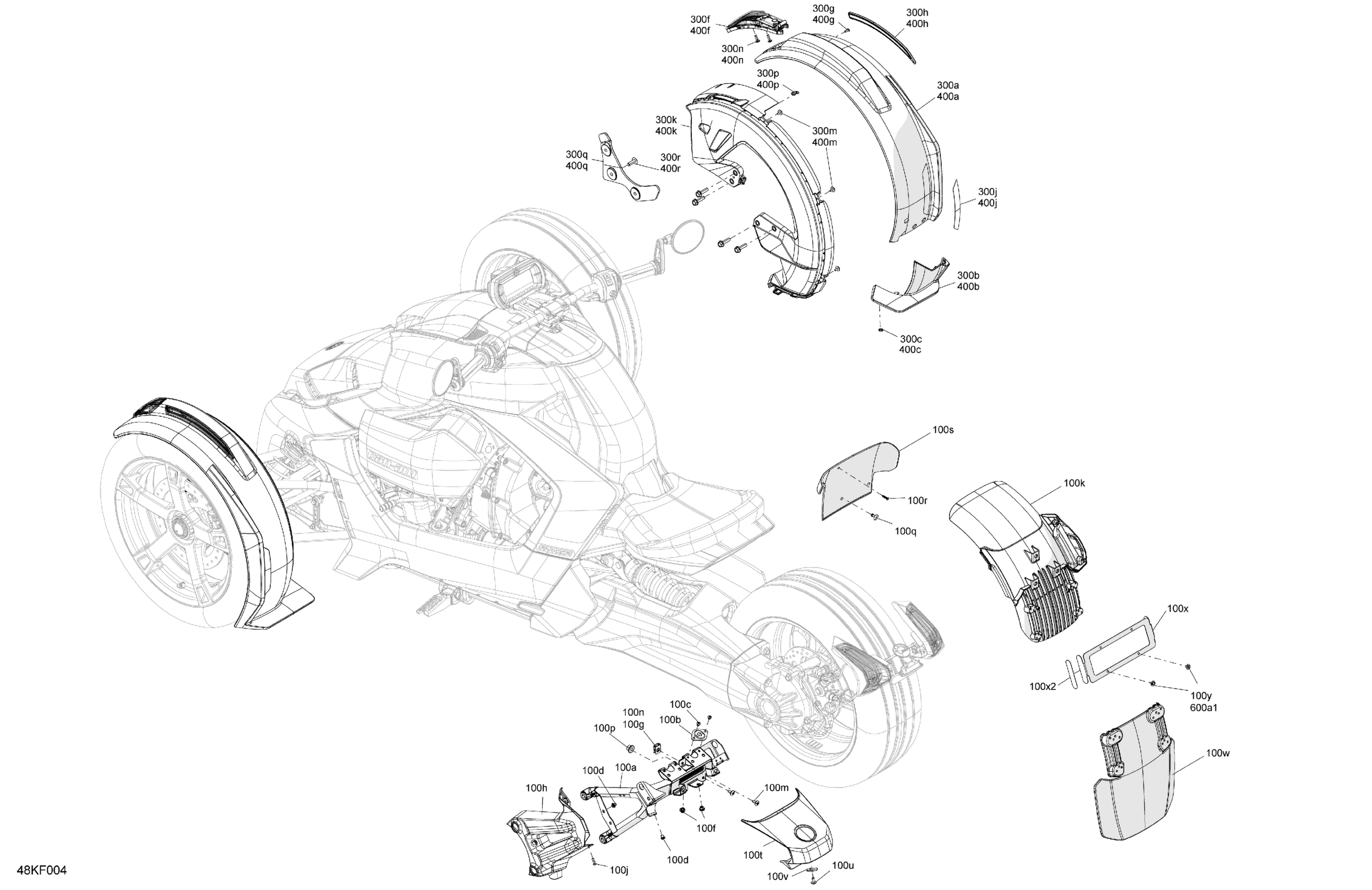

Can-Am International - RYKER - RALLY - 900 ACE - F3TB - Deep Black, 2026 Body - Fender Kit Diagram
