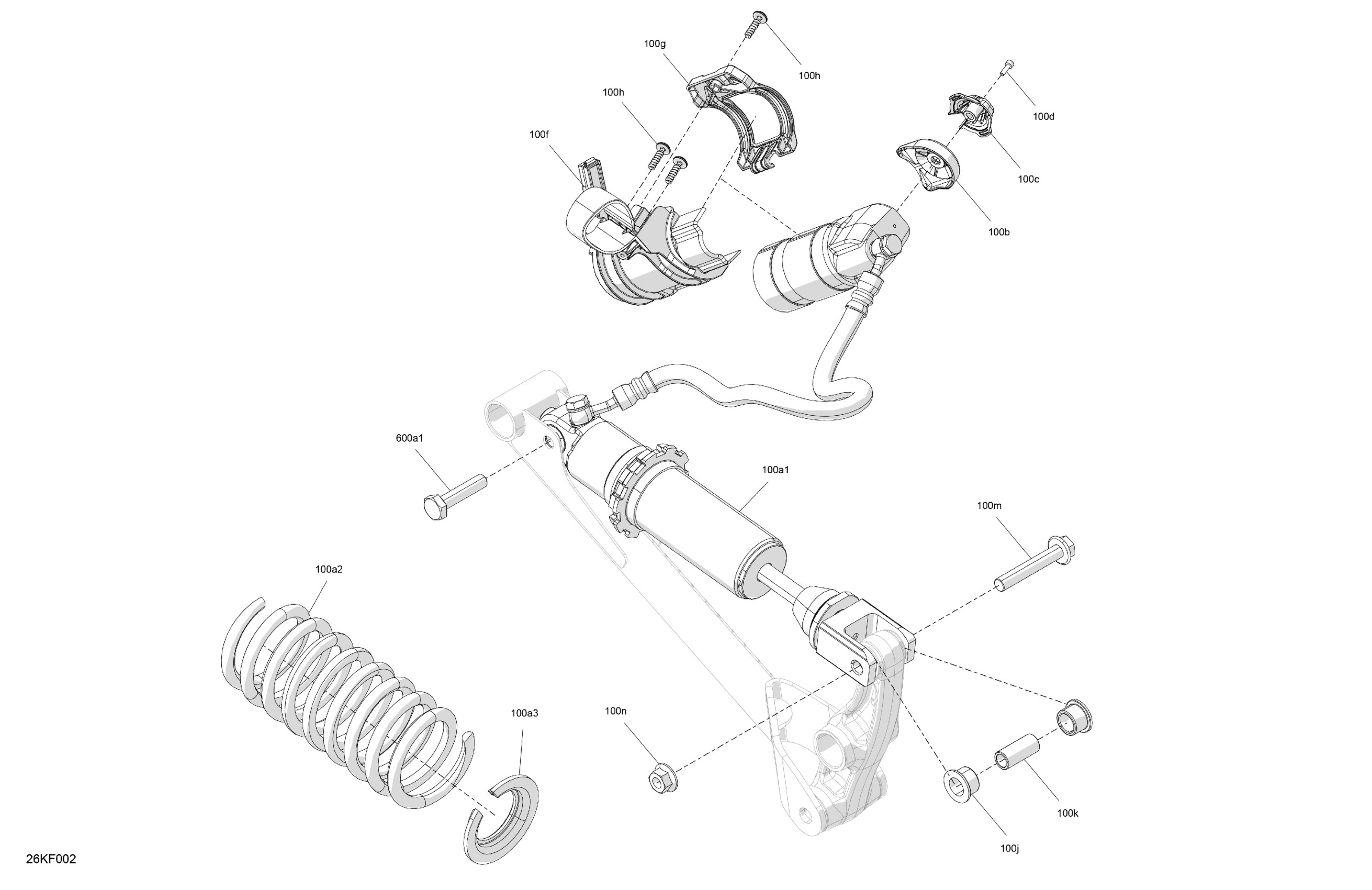

Can-Am RYKER - RALLY - 900 ACE - F3TA - CARB - Deep Black, 2026 Suspension - Rear Shock Diagram

Description

Price

100a1

Rear Adjustable Shock Absorber

706004355

$434.00

100a2

Hyper Silver, Compression Spring

706005477

$50.00

100a3

Spring Stopper

706000567

$15.35

100b

Gauge

706004533

$3.00

100c

Adjustment Button

706004415

$3.00

100d

Allen Screw M3 X 0.5 X 10

250000644

$1.74

100f

Primarey Tank Support Shock Absorber

706004369

$20.00

100g

Ext Tank Support Shock Absorber

706004531

$4.00

100h

Torx Screw Truss Head K50X20 T20

250000760

$1.74

100j

Urethane Bushing

503189117

$6.88

100k

Spacer

706002678

$4.00

100m

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$5.00

100n

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

600a1

Hexagonal Screw M10 x 45

207204556

$3.00
