Description

Price

100

LH Front Fender | Includes 100 to 100a

705016207

$205.00

110

LH Front Mud Guard

705016133

$32.00

120

Push Nut

250100181

$2.00

200

LH Front Position Light

710007008

$120.00

300

Torx Truss PT K40 x 12

250001131

$1.74

400

Yellow, LH Reflector

705012404

$18.00

500

Rear Reflector, Front Fender

705012406

$5.00

600

LH Front Fender Support

705017326

$115.00

610

Plastite Screw M4 X 10

250000805

$1.74

620

Torx Screw K50 X 16

250000720

$1.39

700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

810

Clip Bracket Connector (edge)

409210100

$2.00

900

LH Front Fender Trim

705018433

$8.00

910

Torx Truss PT K40 x 12

250001131

$1.74

1100

RH Front Fender

705016208

$140.00

1110

RH Front Mud Guard

705016132

$32.00

1120

Push Nut

250100181

$2.00

1200

RH Front Position Light

710007009

$120.00

1300

Torx Truss PT K40 x 12

250001131

$1.74

1400

Yellow, RH Reflector

705012405

$18.00

1500

Rear Reflector, Front Fender

705012406

$5.00

1600

RH Front Fender Support

705017327

$115.00

1610

Plastite Screw M4 X 10

250000805

$1.74

1620

Torx Screw K50 X 16

250000720

$1.39

1700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

1810

Clip Bracket Connector (edge)

409210100

$2.00

1900

RH Front Fender Trim

705018434

$8.00

1910

Torx Truss PT K40 x 12

250001131

$1.74

10500

Rear Fender Support

705014612

$115.00

10505

Grommet Ass'y

705005055

$13.00

10506

Rivet 3/16"

293150102

$0.71

10507

Insert M5 - 0.8

293450267

$4.22

10508

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10509

Panel Nut M6 X 1.0

250100208

$1.07

10510

LH Fender Trim Support

705013621

$18.00

10515

Torx Truss Screw M5 X 16, T25

250000578

$1.74

10520

Rear Lower Fender

705013625

$410.00

10521

Torx Truss M6X14

250000789

$4.41

10522

Panel Nut M6 X 1.0

250100208

$1.07

10523

Hex. Flange Nut M6

233061414

$1.34

10525

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

10526

Screw 8-32

250001097

$3.00

10530

Mud Guard

705013229

$40.00

10550

Rear Fender Trim

706003151

$15.00

10551

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

10600

Rear Mud Guard

705016134

$57.00

11000

License Plate Support Ass'y

706005434

$39.00

11010

Screw M4 X 16

250000725

$2.87

12020

BRP Logo Emblem 48 MM UV

704909040

$12.87

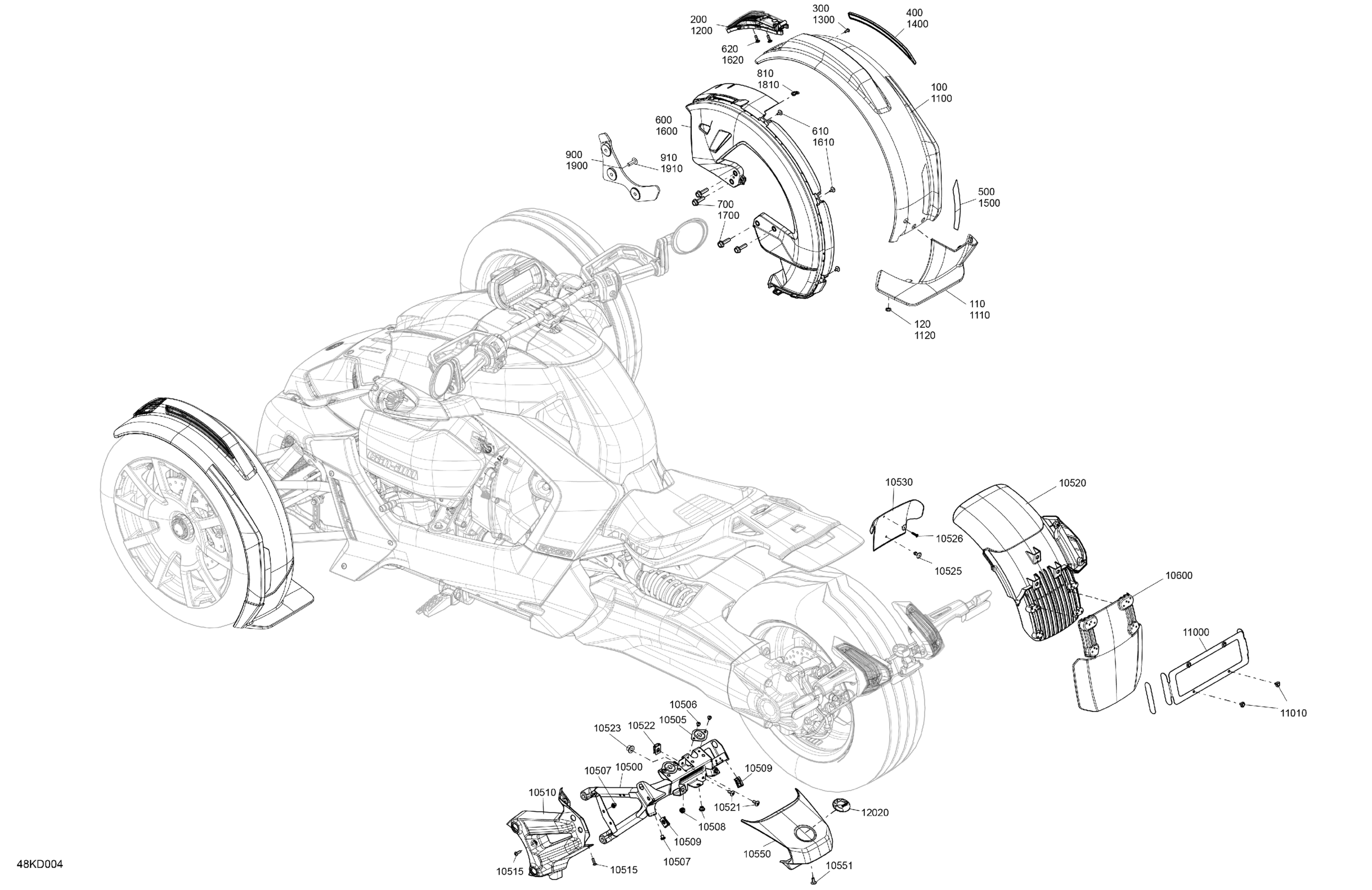

Can-Am International - RYKER RALLY 900 ACE - F3RB - RALLY - Deep Black, 2024 Body - Fender Kit Diagram
