Description

Price

100av1

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

100av2

Elastic Stop Nut M12

232521416

$1.69

100a

Swing Arm

706004488

$656.99

100b

Ball Bearing, ID 12, OD 37, L 12

706002649

$14.81

100d

Hex. Flange Screw M12 X 70

250000858

$3.89

100f

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$7.51

100g

Elastic Stop Nut M12

232521416

$1.69

100h1

Rear Adjustable Shock Absorber

706004355

$434.49

100h2

Hyper Silver, Compression Spring

706005477

$49.99

100h3

Spring Stopper

706000567

$15.99

100j

Gauge

706004533

$3.29

100k

Adjustment Button

706004415

$2.99

100m

Allen Screw M3 X 0.5 X 10

250000644

$2.19

100n

Primarey Tank Support Shock Absorber

706004369

$19.99

100p

Ext Tank Support Shock Absorber

706004531

$4.19

100q

Torx Screw Truss Head K50X20 T20

250000760

$2.19

100r

Urethane Bushing

503189117

$8.19

100s

Spacer

706002678

$3.99

100t

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$4.50

100u

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.19

100v

Suspension Arm Lever, Primary

706002533

$158.99

100w

Bearing, Needles

706002965

$12.71

100x

Seal, Single Lip ID 19.4 OD 26

706000448

$13.49

100y

Axle, Suspenion Arm

706002534

$20.99

100z

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

100aa

Elastic Stop Nut M12

232521416

$1.69

100ab

Suspension Arm Lever, Secondary

706202664

$158.99

100ac

Bearing, Needles

706002965

$12.71

100ad

Seal, Single Lip ID 19.4 OD 26

706000448

$13.49

100af

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$36.99

100ag

Rear Fender Support

705014612

$114.99

100ah

Grommet Ass'y

705005055

$13.49

100aj

Rivet 3/16"

293150102

$1.49

100ak

Insert M5 - 0.8

293450267

$4.59

100am

Insert Half Hex Body M6 x 1.0

250100199

$3.29

100an

Panel Nut M6 X 1.0

250100208

$1.49

100ap

LH Fender Trim Support

705013621

$18.49

100aq

Torx Truss Screw M5 X 16, T25

250000578

$2.19

100ar

Rear Lower Fender

705013625

$409.99

100as

Torx Truss M6X14

250000789

$5.49

100at

Panel Nut M6 X 1.0

250100208

$1.49

100au

Hex. Flange Nut M6

233061414

$1.69

100av

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

100aw

Screw 8-32

250001097

$2.89

100ax

Mud Guard

705013229

$39.99

100ay

Rear Fender Trim

706003151

$14.99

100az

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.19

100ba

Flat Washer

224061121

$1.49

100bb

Rear Mud Guard

705016134

$56.99

100bc

License Plate Support Ass'y

706005434

$38.99

100bc2

Amber Reflector

520002069

$4.99

100bd

Screw M4 X 16

250000725

$3.59

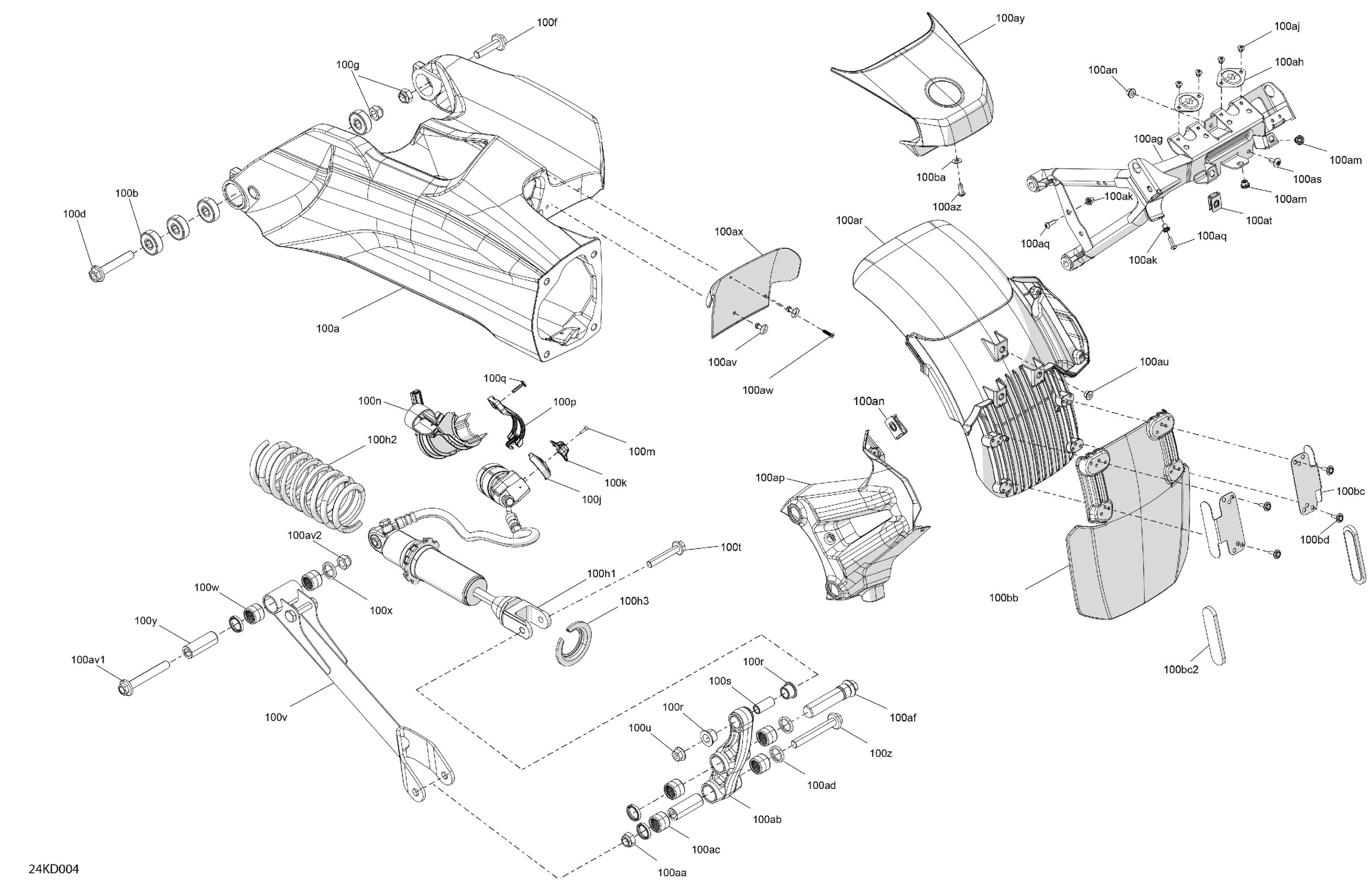

Can-Am International - RYKER RALLY 900 ACE - F3RB - RALLY - Deep Black, 2024 Suspension - Rear Diagram

Hex. Flange Screw M12 X 85, Scotch Grip

Elastic Stop Nut M12

Swing Arm

Ball Bearing, ID 12, OD 37, L 12

Hex. Flange Screw M12 X 70

Hex. Flange Screw M12 X 45, Scotch Grip

Elastic Stop Nut M12

Rear Adjustable Shock Absorber

Hyper Silver, Compression Spring

Spring Stopper

Gauge

Adjustment Button

Allen Screw M3 X 0.5 X 10

Primarey Tank Support Shock Absorber

Ext Tank Support Shock Absorber

Torx Screw Truss Head K50X20 T20

Urethane Bushing

Spacer

Hex. Flange Screw M10 X 60, Scotch Grip

Hex. Elastic Flange Nut , M10 X 1.5

Suspension Arm Lever, Primary

Bearing, Needles

Seal, Single Lip ID 19.4 OD 26

Axle, Suspenion Arm

Hex. Flange Screw M12 X 85, Scotch Grip

Elastic Stop Nut M12

Suspension Arm Lever, Secondary

Bearing, Needles

Seal, Single Lip ID 19.4 OD 26

Pin Threaded M25 X 1.5 S.Grip, Lever

Rear Fender Support

Grommet Ass'y

Rivet 3/16"

Insert M5 - 0.8

Insert Half Hex Body M6 x 1.0

Panel Nut M6 X 1.0

LH Fender Trim Support

Torx Truss Screw M5 X 16, T25

Rear Lower Fender

Torx Truss M6X14

Panel Nut M6 X 1.0

Hex. Flange Nut M6

Pop Rivet 3/16" | DS 650 X

Screw 8-32

Mud Guard

Rear Fender Trim

Black, Socket Screw, M6 X 16 S.Grip

Flat Washer

Rear Mud Guard

License Plate Support Ass'y

Amber Reflector

Screw M4 X 16
