Description

Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

10b1a

Elastic Stop Nut M6, Brass

232561200

$3.51

10c

Anchorage Tie Wrap

293750109

$1.15

10f

Anchorage Tie Wrap

293750109

$1.15

15

Decal

291005381

$0.82

20

Console

291005315

$144.92

25

Hex Screw SEMS M6X35, SS

250000969

$1.74

26

Hex. Screw M6 X 50

207165060

$0.75

27

Flat Washer M6.6 X 22

250200022

$1.87

30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

35

Rubber Bumper

293830005

$5.33

40

Mirror Support

291005178

$53.27

50

Deep Black, Storage Box

291006491

$23.05

55

Box Cover

264000158

$10.21

60

Clip

269501718

$12.97

65

Gasket

293250591

$15.22

70

Vent Membrane

264000137

$9.04

75

Sealed Compartment Foam

264000135

$9.22

80

Deep Black, Console Panel

291006453

$55.35

85

Cap

708400856

$10.62

90

Rubber Bumper

293830005

$5.33

100

Monolith Black, LH Miror Cover

269502561

Unavailable

110

Monolith Black, RH Miror Cover

269502562

Unavailable

115

Hex. Screw 10-14 X 7/8”

211000023

$2.91

120

LH Mirror Glass

269502274

$72.12

130

RH Mirror Glass

269502276

$72.12

150

LH Spacer

291005127

$14.92

160

RH Spacer

291005182

$14.92

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

210

RH Anti Slip Deck Mat

291006314

$138.43

230

LH Rear Anti Slip Mat

291006319

$134.58

235

RH Rear Anti Slip Mat

291006320

$134.58

270

Can-Am Red, LH Front Footrest Ass'y

291005799

$49.97

272

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

275

Can-Am Red, RH Front Footrest Ass'y

291005800

$49.97

277

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

310

Rivet 1/8"

293150016

$0.29

320

Black, Snap Cap

293000014

$0.85

400

U-Clamp

292000933

$32.47

410

Flat Washer M8.5 x 18

293050001

$1.29

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

740

Hose Protector

291004941

$4.35

745

Black, Dart

293730011

$0.79

750

Access Cover Ass'y | Includes 750 to 750g

291006468

$207.66

750b

Was 293200062 Seal

219704366

$61.72

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

$22.07

750d

Flat Washer M6, Stainless

234062600

$0.64

750f

Elastic Stop Nut M6, Brass

232561200

$3.51

750g

Seal

291004717

$9.04

760

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

780

Linq Bases Kit

295100858

$21.42

790

Access Cap Ass'y

291004481

$7.15

800

Deep Black, Glove Box Cover

291005346

$52.62

805

Black, Latch

264000164

$11.40

810

Cover Gasket

293250715

$24.02

840

Gulfsream Blue, LH Front Body Panel

291006545

$170.74

845

Dard

293730071

$0.90

850

Tuflok Plastic Rivet

293150230

$1.21

855

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

860

Gulfsream Blue, RH Front Body Panel

291006544

$170.74

865

Dard

293730071

$0.90

870

Tuflok Plastic Rivet

293150230

$1.21

875

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

900

LH Front Grille Panel

291005330

$9.58

902

Insert

291003793

$2.44

905

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

915

Hexagonal Cap Screw M6 X 25

250000978

$3.61

920

RH Front Grille Panel

291005331

$9.58

922

Insert

291003793

$2.44

925

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

935

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1030

Bumper Front

291005082

$84.47

1035

Plastite Housing

291005701

$6.12

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1060

Lateral Bumper

291005510

$45.47

1070

LH Rear Bumper Corner

291005083

$16.22

1072

Plastite Housing

291005701

$6.12

1075

RH Rear Bumper Corner

291005084

$16.22

1077

Plastite Housing

291005701

$6.12

1079

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1090

Lateral Bumper

291006724

$55.35

1100a

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1100b

Tuflok Plastic Rivet

293150230

$1.21

1100c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1100d

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

1400

Can-Am Red, LH Driver Footrest Ass'y

291006691

$64.58

1410

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

1420

Can-Am Red, RH Driver Footrest Ass'y

291006692

$64.58

1430

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

1630

Wiring Grommet

293720121

$3.59

1700

Separation Panel Ass'y

291005587

$81.87

1730

Holding Strap

269502111

$14.27

2240

Gasket, Neoprene 2000Mm Long

219704476

$12.64

2250

Body Deflector

291005108

$44.82

2255

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

2260

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

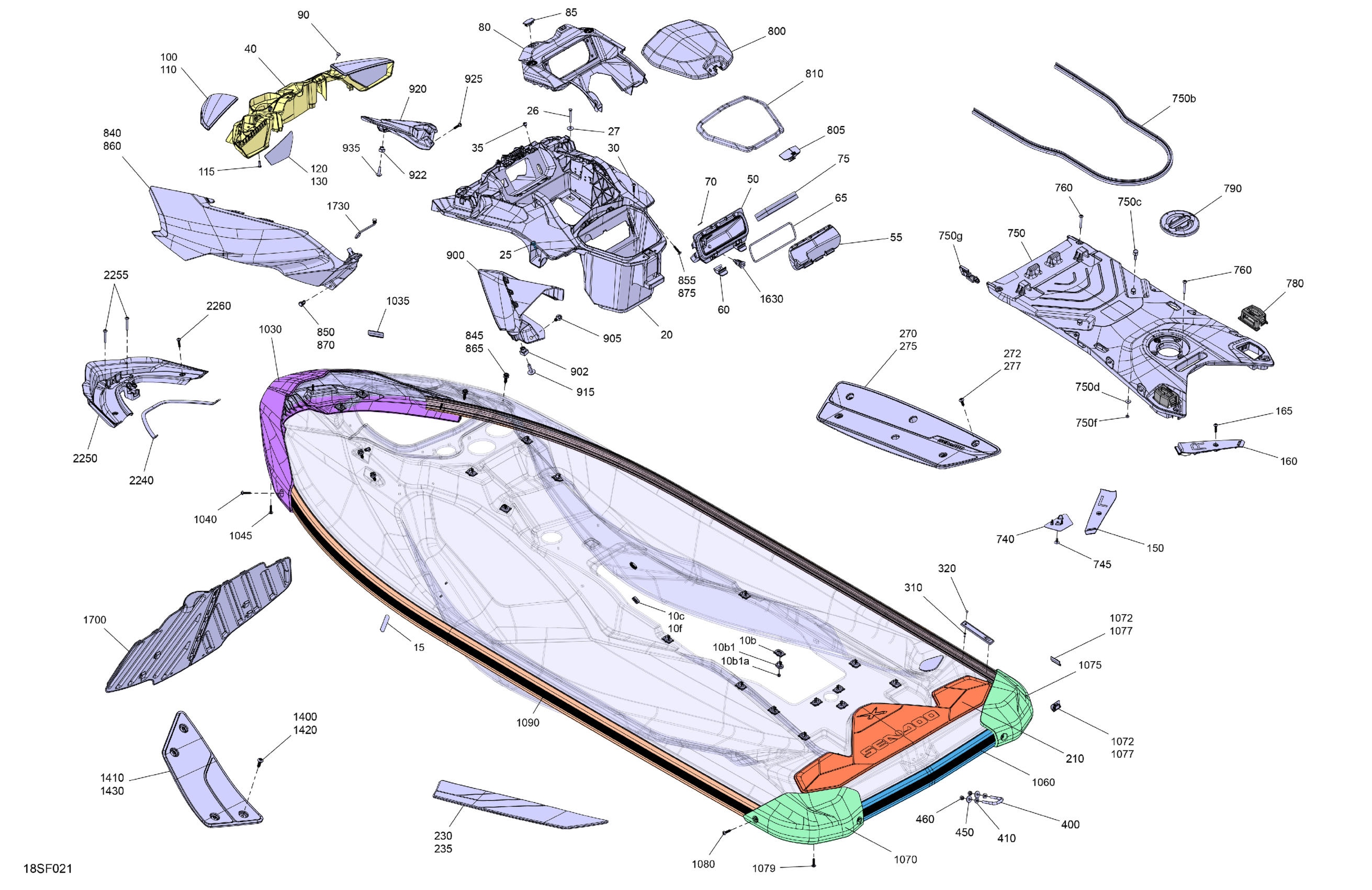

Sea-doo International - RXP - 325 - X - 23TB - Gulfstream Blue - Audio, 2026 Body - System Diagram

Monolith Black, LH Miror Cover

Monolith Black, RH Miror Cover
