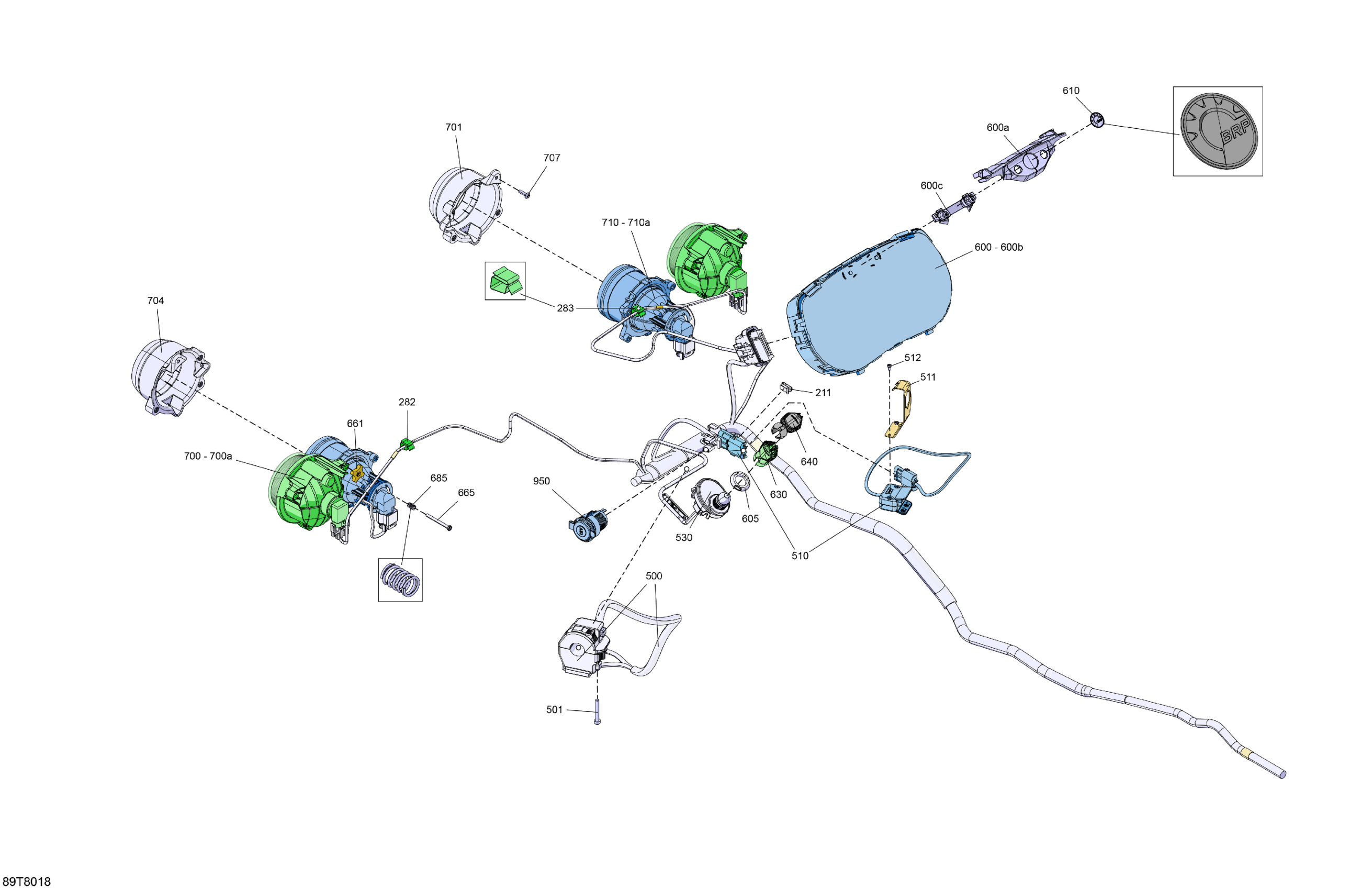

Can-Am OUTLANDER - 4X4 - XTP - 1000R - 5XJA - Timeless Black Metallic, 2018 Electric - Front Section Diagram

Description

Price

211

Clip

710000992

$3.88

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$74.60

501

Socket Head Screw M5 X 35

205053588

$1.56

510

Winch Switch

710005241

$153.70

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Speedometer | Includes 600 to 600c

710005632

$394.00

600a

Cap Support | XTP

705004366

$11.49

600b

Lens | XTP

415129349

$22.36

600c

Speedometer Button | XTP

415129355

$13.52

605

Safety Nut (DESS Switch)

278002963

$2.72

610

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

630

Green Key RFID | Except Model Europe, Except T3

710005232

$53.70

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

950

DC Outlet

710001248

$31.17
