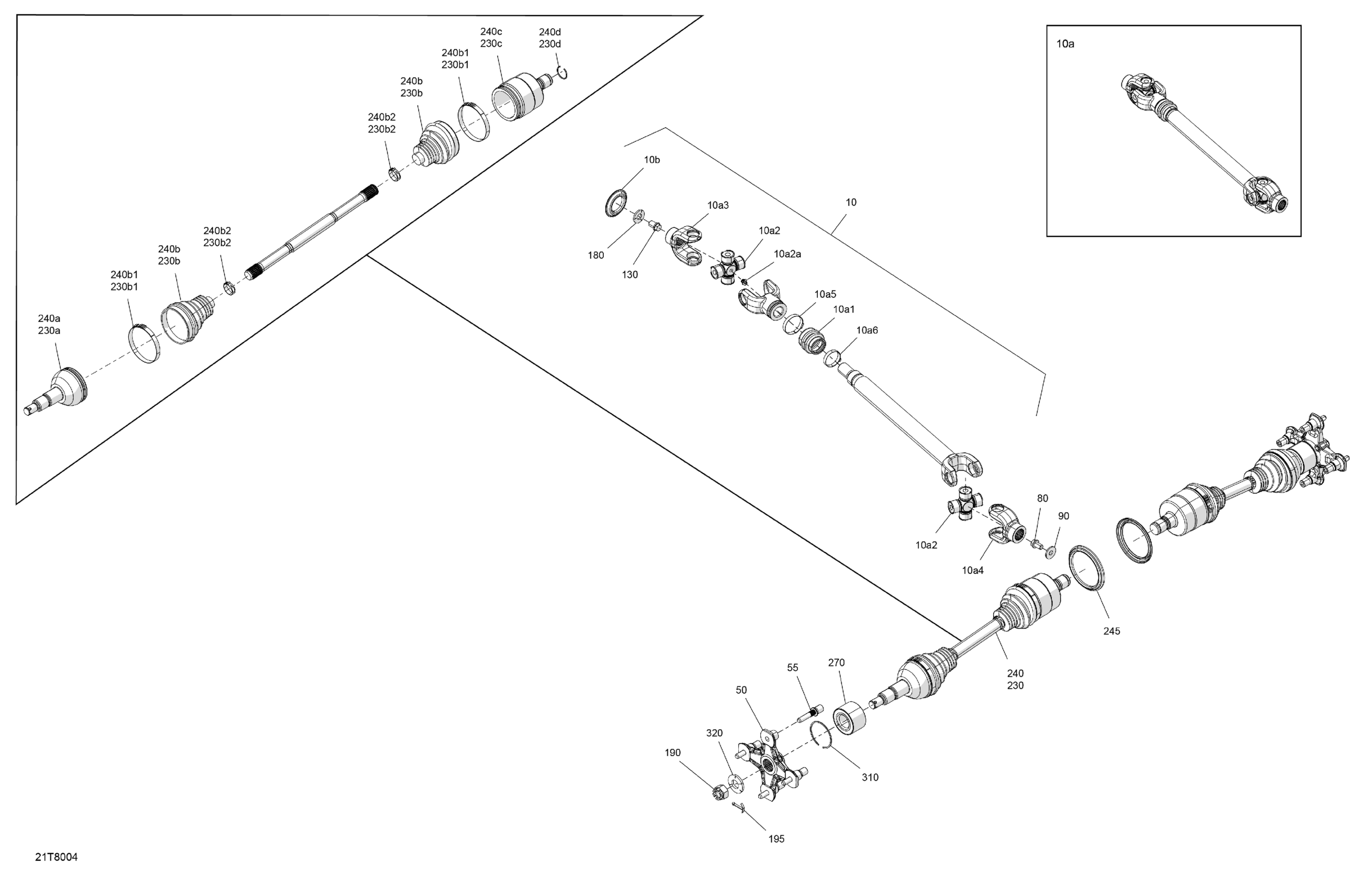

Can-Am OUTLANDER MAX - 4X4 - LTD - 1000R - 5WJA - Midnight Blue, 2018 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$396.89

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$13.83

10a2

Universal Joint

715900326

$69.20

10a2a

Grease Fitting | T3

715900295

$4.62

10a3

Yoke

715900438

$23.05

10a4

Yoke | T3

715900500

$23.05

10a5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

10a6

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10b

Protector

705501123

$7.37

50

Wheel Hub Ass'y

705501716

$129.20

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

230a

CV Joint

705501776

Unavailable

230b

Boot Kit

705501864

$41.51

230b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230d

Circlip

705501781

$5.38

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

240a

CV Joint

705501776

Unavailable

240b

Boot Kit

705501864

$41.51

240b1

Oetiker Clamp, 82.1 mm

715900241

$7.84

240b2

Oetiker Clamp, 27.3 mm

715900242

$7.84

240c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240d

Circlip

705501781

$5.38

245

Wear Ring

705501124

$7.28

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28
